SU3040D400CN Schneider Electric Industrial Automation Components

SU3040D400CN on Powermatic Associates
Schneider Electric

Part#:SU3040D400CN

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

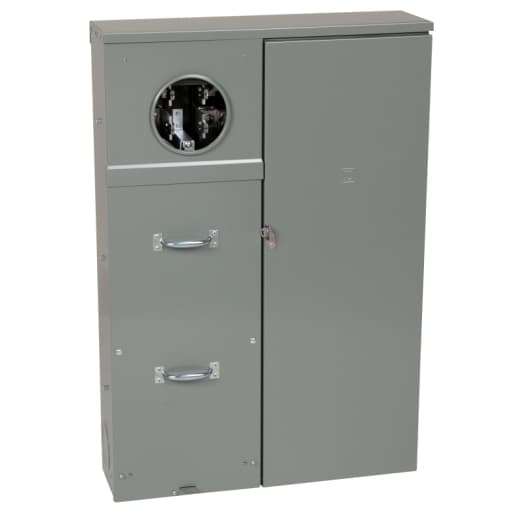

Square D by Schneider Electric SU3040D400CN is a Combination Service Entrance Device (CSED) designed for both surface mounting and semi-flush mounting. It features a ringed meter socket without a bypass and utilizes lugs for ground connections and studs for line connections. This device accommodates 30 spaces, supporting up to 40 single pole circuits and 10 tandem breakers. It is rated for a current of 400A and has a short circuit breaking rating of 25kA. The ground connections are compatible with 4AWG to 250kcmil aluminium and copper lugs.

Product Details

  • Disconnect Rating
    200 A
  • Meter Socket Type
    Ringed
  • Product Or Component Type
    All-In-One
  • Hub Type
    A-L
  • Disconnect
    Service disconnect (factory installed)
  • Bypass Type
    No bypass
  • Height
    43.00 in (1092.20 mm)
  • Line Rated Current
    400 A
  • Number Of Spaces
    30
  • Width
    28.25 in (717.55 mm)
  • Short-Circuit Current
    25 kA
  • Range Of Product
    Homeline
  • Number Of Tandem Breakers
    10
  • Service Feed Location
    UG
  • Number Of Circuits
    40
  • Depth
    7.87 in (199.90 mm)
  • Branch Breaker Rating
    200 A
  • Mounting
    Surface Semi flush field installed flange kit
  • Wire Size
    AWG 4...250 kcmil aluminium)service ground AWG 4...250 kcmil copper)service ground
  • Electrical Connection
    Lugs service ground Studs line side
  • Tightening Torque
    Terminal screw 250 lb.in, AWG 4...250 kcmil, aluminium/copper Service ground 50 lb.in, AWG 1/0, aluminium/copper Service ground 45 lb.in, AWG 6...AWG 1, aluminium/copper Service ground 40 lb.in, AWG 8, aluminium/copper Branch lugs 50 l

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SU3040D400CN on Powermatic Associates is $7,050.00. Order now.
