S18SP6D W-30 Banner Sensors & Transducers

Name: S18SP6D W-30
Brand: Banner

Part#:S18SP6D W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

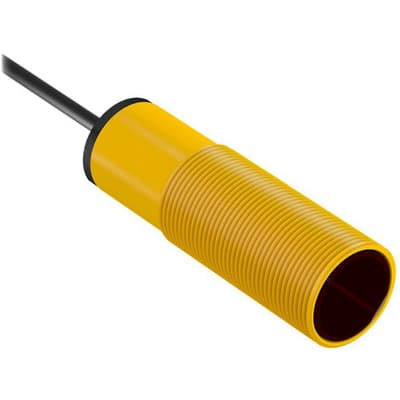

Photo-electric sensor with diffuse mode - Banner Engineering (EZ-BEAM series - S18 DC series) - Part #30813 - Sensing range 100mm - Infrared (IR) light (880nm) - 1 x digital output (PNP transistor) (Light-ON or Dark-ON operation) - Supply voltage 10Vdc-30

Product Details

Design
diffuse mode
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Degree of protection
IP67 IP69K NEMA 6P
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Sensing distance
100mm
Product series / family name
EZ-BEAM series
Functions
Photo-electric sensor green LED (power ON) amber LED (output state)
Thread size
M18
Response time
3ms / 0.003 s
Sub-range name
S18 DC series
Wavelength
880 nm
Operating mode
Light-ON Dark-ON
Ambient air temperature for operation
-40...+70 °C
Main function
Sensor (Photo-electric)
Shape
Cylindrical threaded/barrel
Digital outputs
1 x digital output (PNP transistor)
Equivalent to
S18SP6DW30
Light Color
Infrared (IR)
Material
thermoplastic housing Acrylic lns.

Order code / Manufacturer SKU

30813

Compliant with standard(s)

cULus cCSAus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18SP6D W-30 Related Documents

Banner Engineering - S18 DC series - Datasheet.pdf
