S18SN6RQDP Banner Retroreflective Sensors

S18SN6RQDP on Powermatic Associates
Banner

Part#:S18SN6RQDP

Alt. Part#:13802

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

S18SN6RQDP NPN DC RECEIVER 150 mm (6 in) 4-PIN M12 PIGTAIL QD

Product Details

  • Weight
    58.96696 g
  • Country Of Origin
    MX
  • Power
    DC
  • Output response time (ms)
    3 ON/1.5 OFF
  • Lens Material
    Polycarbonate
  • Feature: Audible
    No
  • Max Sensing Distance (mm)
    20000
  • Special Feature: Intrinsically Safe
    No
  • Adjustments
    N/A
  • Feature: Chemical Resistant
    No
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    18
  • Feature: Health/ Marginal Signal Output
    Yes
  • Operation
    Light/Dark Operate
  • Outputs
    NPN
  • IP Rating
    IP67, IP69
  • Feature: Ecolab Certified
    Yes
  • Input/Output
    Discrete
  • Max Op. Temp. (°C)
    70
  • NEMA Rating
    NEMA 6P
  • Feature: Hazardous Area
    No
  • Housing Style
    Barrel
  • Quick Disconnect Type
    M12 (Euro)
  • Delay at Power-up (ms)
    100
  • Sensing Mode (Detailed)
    Receiver
  • Special Feature: Water Detection
    No
  • Indicator
    LEDs
  • DeviceNet
    No
  • Primary Housing Material
    Thermoplastic
  • Min Op. Temp. (°C)
    -40
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Encapsulated
    No
  • Sensing Beam
    Infrared LED
  • Power Supply/Supply Voltage
    10-30 V dc
  • Repeatability (µs)
    375
  • Feature: Timing (Hold/Delay)
    No
  • Connection
    Pigtail QD
  • Sensing Mode (General)
    Opposed
  • Number of Pins
    4
  • Feature: Washdown Rated
    Yes
  • IO Link
    No
  • Opposed Mode Emitter/Receiver
    Receiver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18SN6RQDP on Powermatic Associates is $70.00. Order now.

About the product

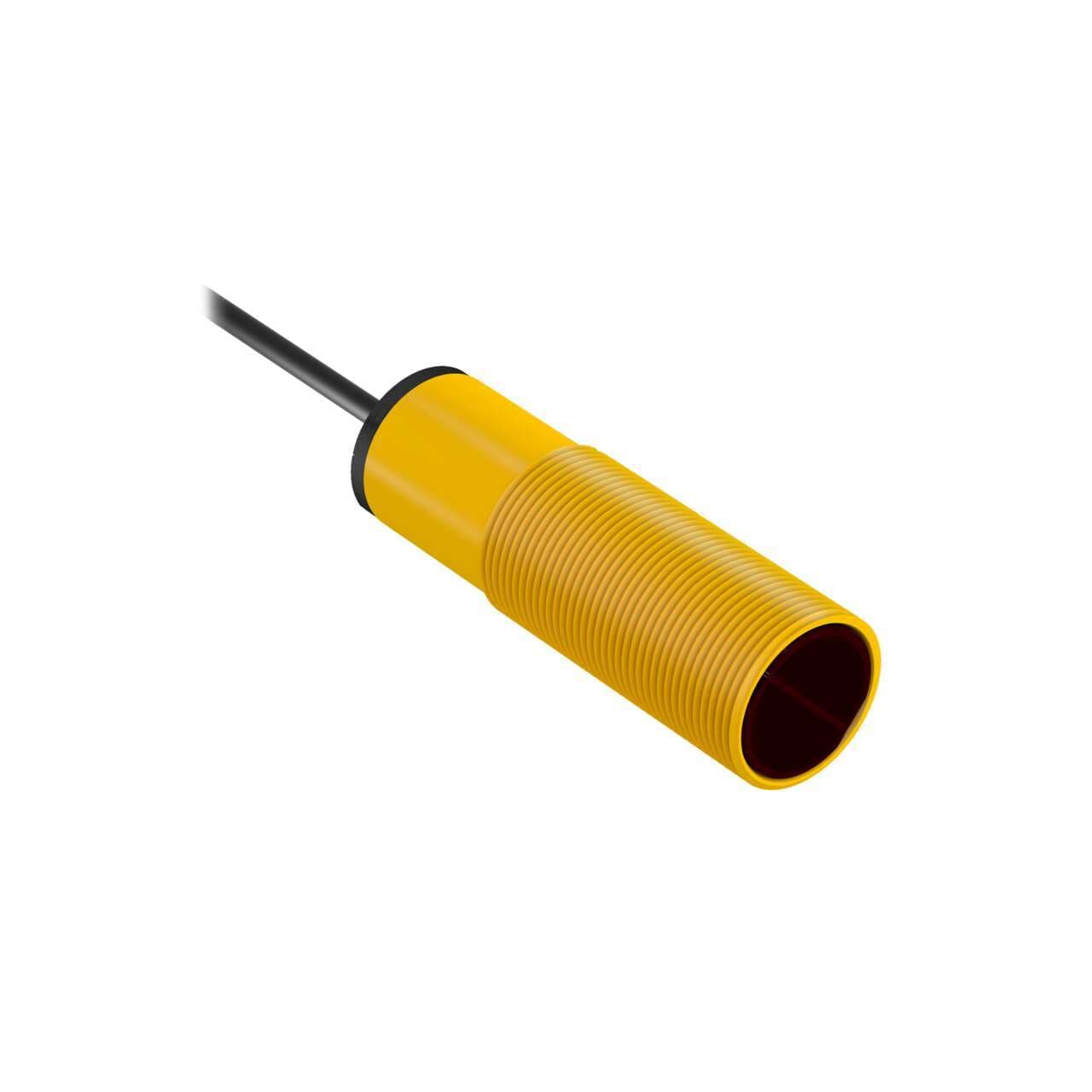

Banner Engineering S18SN6RQDP is a photo-electric sensor designed as part of the S18 DC series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic with a polycarbonate lens. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to operate within an ambient air temperature range of -40 to +70 degrees Celsius. The S18SN6RQDP offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensor features one digital output (NPN transistor; complementary NO/NC), a sensing distance of up to 20 meters, and an infrared light color with a wavelength of 950 nm. It boasts a quick response time of 3ms (0.003 seconds) and supports both Light-ON and Dark-ON operating modes.
