S18SP6DLQPMA Banner Retroreflective Sensors

S18SP6DLQPMA on Powermatic Associates
Banner

Part#:S18SP6DLQPMA

Alt. Part#:76430

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

S18SP6DLQPMA 4-PIN M12 6 in PUR

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    MX
  • Max Sensing Distance (mm)
    300
  • Output response time (ms)
    3
  • IP Rating
    IP67, IP69
  • Barrel Diameter (mm)
    18
  • DeviceNet
    No
  • Outputs
    PNP
  • Power Supply/Supply Voltage
    10-30 V dc
  • Primary Housing Material
    Thermoplastic
  • Sensing Beam
    Infrared LED
  • Power
    DC
  • Input/Output
    Discrete
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Barrel
  • Connection
    Pigtail PUR QD
  • Sensing Mode (Detailed)
    Diffuse
  • Quick Disconnect Type
    M12 (Euro)
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Remote Teach
    No
  • Min Op. Temp. (°C)
    -40
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Repeatability (µs)
    750
  • Number of Pins
    4
  • Lens Material
    Acrylic
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Timing (Hold/Delay)
    No
  • NEMA Rating
    NEMA 6P
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Feature: Encapsulated
    No
  • Feature: Hazardous Area
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18SP6DLQPMA on Powermatic Associates is $101.00. Order now.

About the product

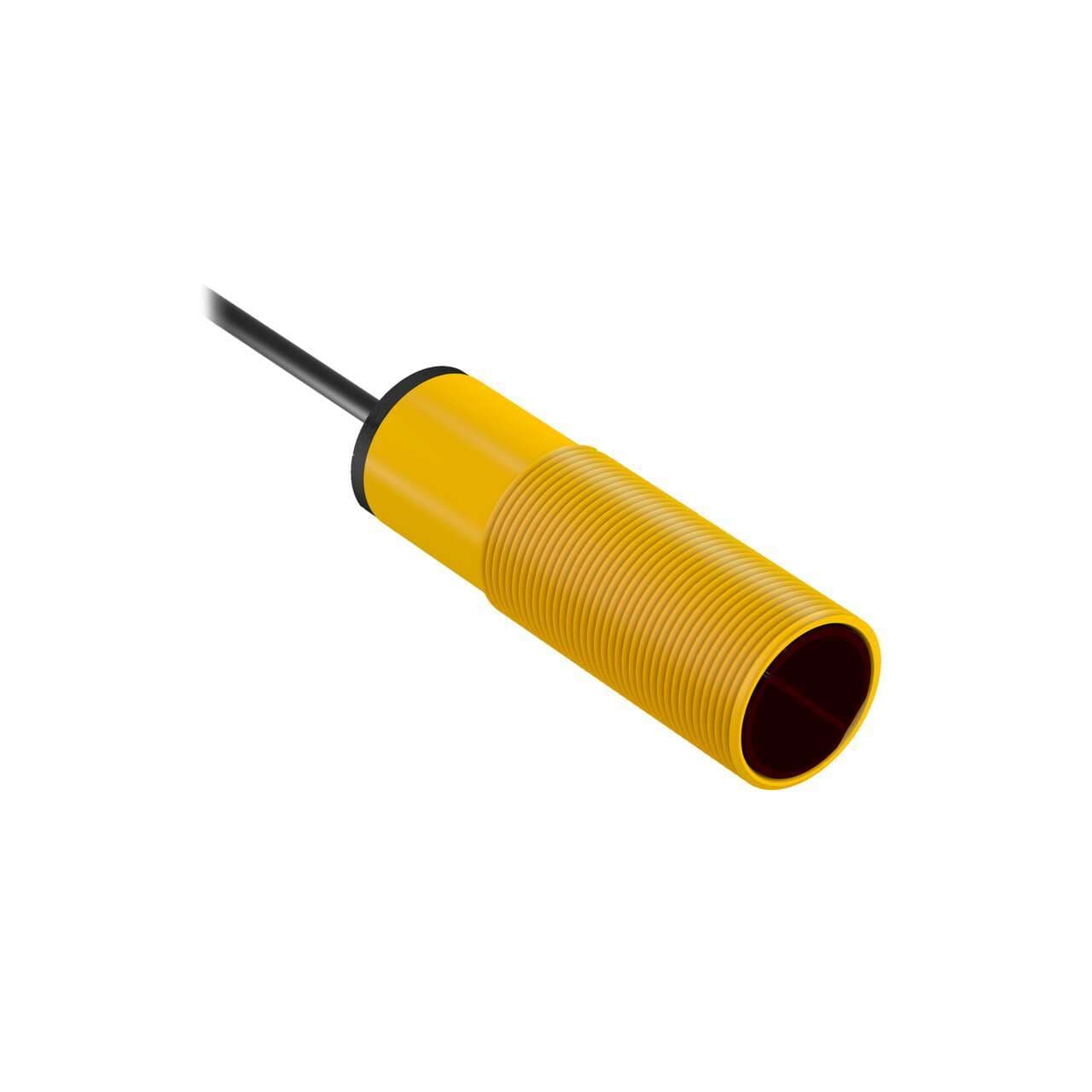

Banner Engineering S18SP6DLQPMA is a photo-electric sensor from the S18 DC series designed in a diffuse mode. This sensor features a thermoplastic housing with an acrylic lens and a polyurethane (PUR) cable sheath. It is pre-wired with a 6" / 150mm PUR cable terminated with a 4-pin Euro-style M12 connector. The supply voltage required for operation ranges from 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It can operate in ambient air temperatures ranging from -40 to +70°C. The sensor offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring its durability in various environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor; complementary NO/NC). The sensing distance is 300mm, utilizing infrared (IR) light with a wavelength of 880 nm. The response time is 3ms / 0.003 s, and it operates in both Light-ON and Dark-ON modes.
