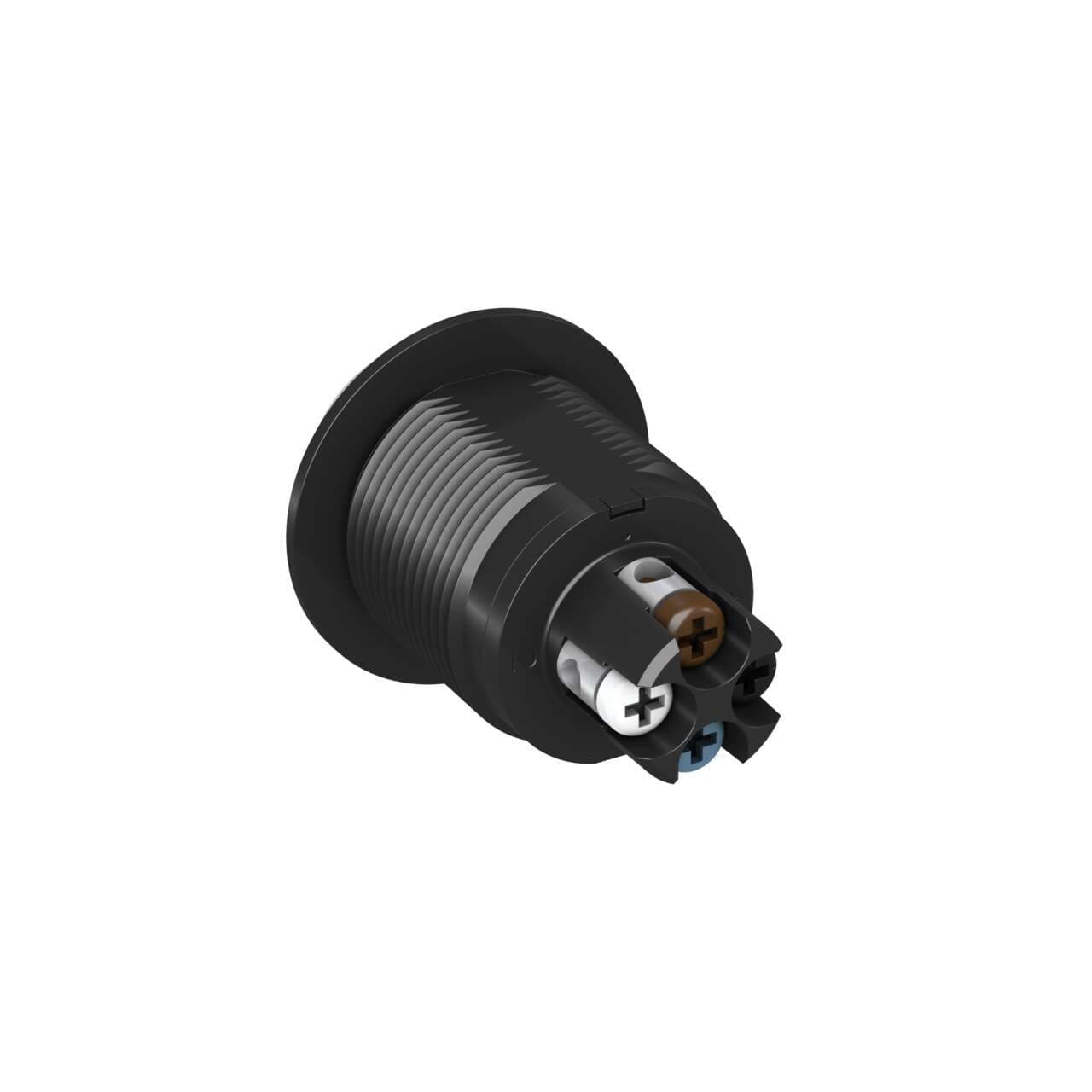

S22DLGRBPT Banner Pick-to-Light Sensors
Part#:S22DLGRBPT
Alt. Part#:86168
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Daylight Visible EZ Light - 22 mm - IP67; Three Color: Green Red Blue; 10-30 V dc PNP Input; 4-screw Terminal Wiring
Product Details
- Weight 63.50288 g
- Country Of Origin CN
- Power Source DC
- Lumens Color 1 2.3
- Physical Dimensions (LxWxH or DxH mm) 26.0 x 34.2
- Primary Window Material Polycarbonate Clear
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Primary Housing Color Black
- Power DC
- Color Option 1 Green
- Lumens Color 3 0.60
- Environmental Rating IP67; IP69
- Feature: Quick Disconnect No
- Housing Style Barrel Mount - Flat Window
- Color Technology Standard LED
- Supply Voltage 10-30 V dc
- Max Op. Temperature (°C) 50
- Wireless No
- Number of Colors / Segments 3
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Current Color (mA) 25
- Indication Intensity High Brightness & Daylight Visible
- Min Op. Temperature (°C) -40
- Indication Yes
- Color Option 2 Red
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- IO Link No
- Product Size (mm) 22
- Connection Terminal
- Color Option 3 Blue
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Primary Housing Material Polycarbonate
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Mounting Thread M22 x 1.5
- Lumens Color 2 1.4
- Input Type PNP
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Feature: Chemical Resistant No
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22DLGRBPT on Powermatic Associates is $50.00. Order now.
About the product
Banner Engineering S22DLGRBPT is a pilot light from the EZ-LIGHT series featuring daylight-visible 3-color G/R/B color pattern LED illumination. This part is designed with a clear Polycarbonate (PC) window and a Polycarbonate (PC) base, housed in a black casing. It has a 22mm indicator diameter and utilizes a screw-clamp terminal connection for installation. The S22DLGRBPT operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring durability in various environments. The flat window and threaded cylindrical barrel shape facilitate easy installation and visibility. It has a current consumption of 25mA and includes 3 digital inputs (10-30Vdc; PNP) for color control.
