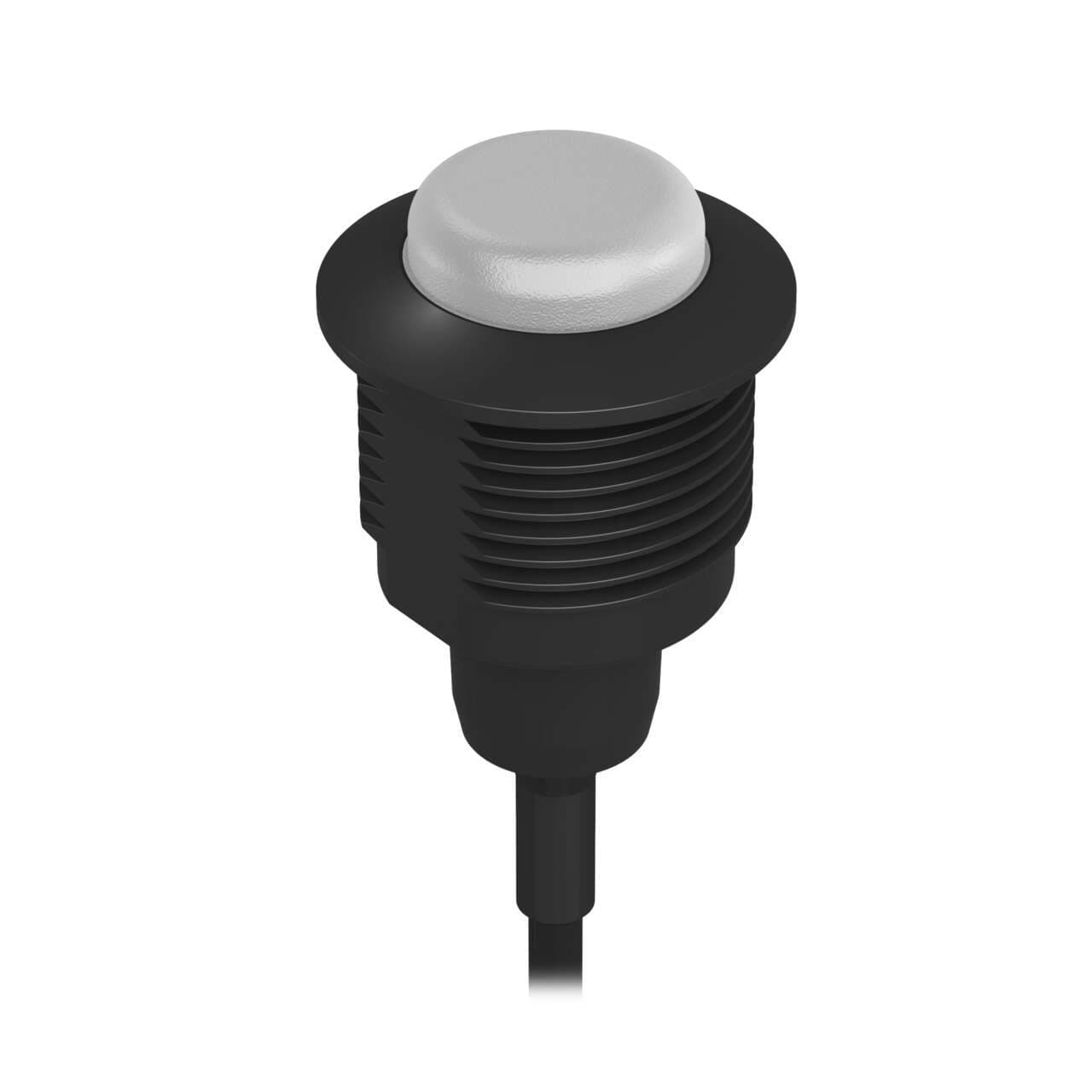

S22DLGRWP Banner Pick-to-Light Sensors

Name: S22DLGRWP
Brand: Banner
Price: 44 USD
Availability: BackOrder

Part#:S22DLGRWP

Alt. Part#:91454

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

S22 Daylight Visible EZ Light - 22 mm - IP67; Three Color: Green Red White; 10-30 V dc PNP Input; 4-wire 2 m Cable

Product Details

Weight
81.64656 g
Country Of Origin
CN
Pro-Editor Compatible (Discrete)
No
Wireless
No
IO Link
No
Primary Window Material
Polycarbonate Clear
Modbus RTU
No
Multi-Color Device
Single Color On
Feature: Washdown Rated
Yes
Indication Intensity
High Brightness & Daylight Visible
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Environmental Rating
IP67; IP69
Primary Housing Color
Black
Number of Input Pins/Conductors
4
Max Current Color (mA)
25

Color 3 - Wavelength/Color Temp/Coordinates

6000K

Physical Dimensions (LxWxH or DxH mm)

26.0 x 35.3

Input Type

PNP

Max Input Response Time (ms)

Supply Voltage

10-30 V dc

Lumens Color 3

4.0

Color Option 3

White

Color Option 2

Red

Color 1 - Wavelength/Color Temp/Coordinates

525 nm

Lumens Color 2

1.4

Color 2 - Wavelength/Color Temp/Coordinates

625 nm

Animation Option 1

Solid On

Connection

Cable

Lumens Color 1

2.3

Color Technology

Standard LED

Color Option 1

Green

Product Size (mm)

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Mounting Thread

M22 x 1.5

Primary Housing Material

Polycarbonate

Indication

Yes

Housing Style

Barrel Mount - Flat Window

Power

Power Source

Cable Length (m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22DLGRWP on Powermatic Associates is $44.00. Order now.

About the product

Banner Engineering S22DLGRWP, part of the EZ-LIGHT series, is a pilot light designed with a daylight-visible 3-color G/R/W color pattern LED illumination. This LED pilot light indicator features a clear Polycarbonate (PC) window and base, with a 22mm indicator diameter. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The S22DLGRWP is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape is characterized by a flat window and threaded cylindrical barrel, with a current consumption of 25mA. It also features 3 x digital inputs (10-30Vdc; PNP) for color control.

S22DLGRWP Related Documents

171439.pdf
