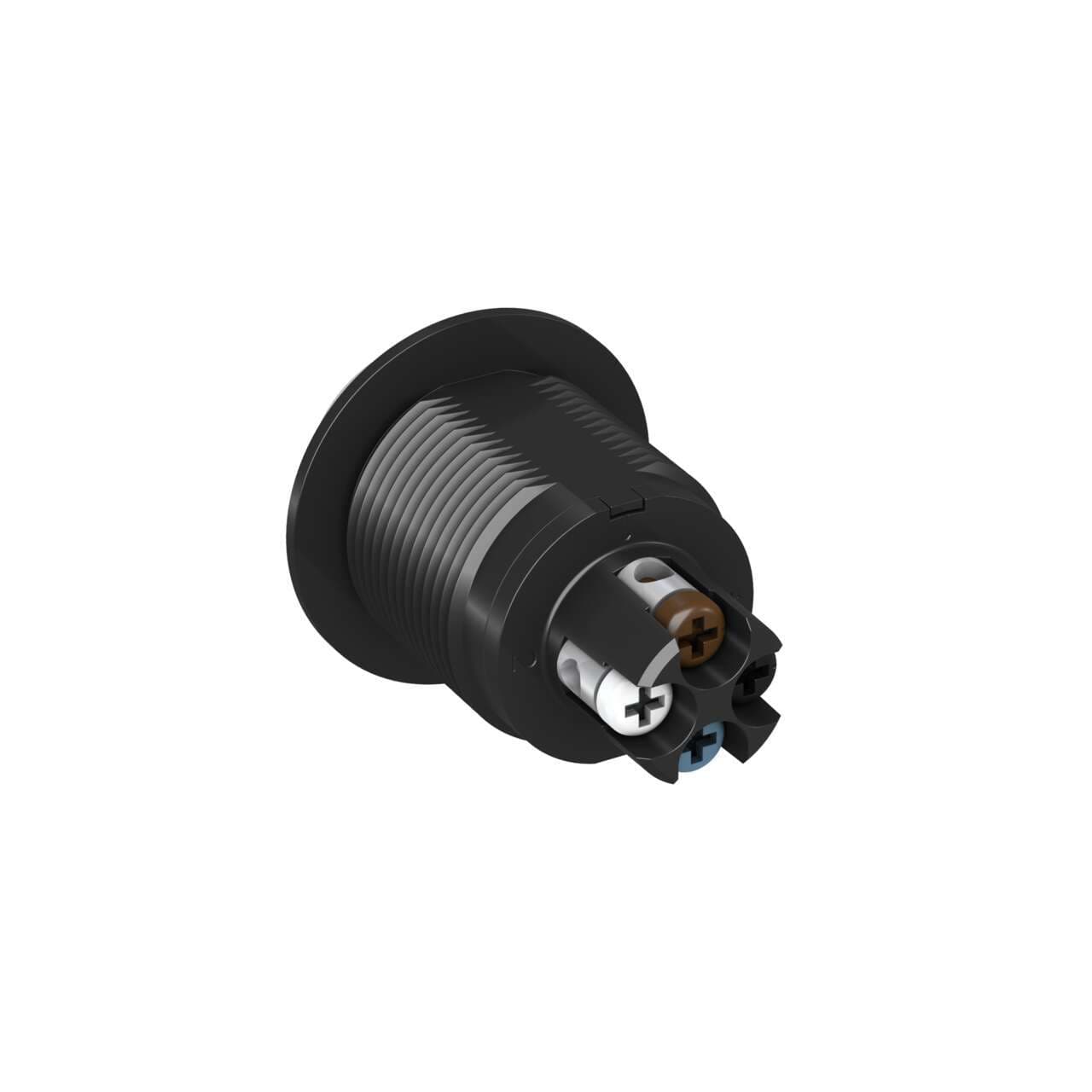

S22DLGRXPT Banner Pick-to-Light Sensors
Part#:S22DLGRXPT
Alt. Part#:86165
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Daylight Visible EZ Light - 22 mm - IP67; Two Color: Green Red; 10-30 V dc PNP Input; 4-screw Terminal Wiring
Product Details
- Weight 63.50288 g
- Country Of Origin CN
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 2
- Color Option 1 Green
- Max Current Color (mA) 25
- Primary Window Material Polycarbonate Clear
- Wireless No
- Primary Housing Color Black
- Power DC
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Min Op. Temperature (°C) -40
- IO Link No
- Housing Style Barrel Mount - Flat Window
- Connection Terminal
- Number of Input Pins/Conductors 4
- Multi-Color Device Single Color On
- Modbus RTU No
- Indication Yes
- Lumens Color 1 2.3
- Input Type PNP
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Chemical Resistant No
- Environmental Rating IP67; IP69
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Product Size (mm) 22
- Power Source DC
- Lumens Color 2 1.4
- Max Op. Temperature (°C) 50
- Indication Intensity High Brightness & Daylight Visible
- Mounting Thread M22 x 1.5
- Color Technology Standard LED
- Max Input Response Time (ms) 1
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Color Option 2 Red
- Supply Voltage 10-30 V dc
- Feature: Quick Disconnect No
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 26.0 x 34.2
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22DLGRXPT on Powermatic Associates is $47.00. Order now.
About the product
Banner Engineering S22DLGRXPT, part of the EZ-LIGHT series, is a pilot light designed with daylight-visible 2-color G/R color pattern LED illumination. This LED pilot light indicator features a clear Polycarbonate (PC) window and base, with a 22mm indicator diameter and a black housing. It offers a screw-clamp terminal connection and operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nominal). The S22DLGRXPT is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part boasts a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring durability in various environments. The shape is characterized by a flat window and threaded cylindrical barrel, with a current consumption of 25mA. Additionally, it includes 2 x digital inputs (10-30Vdc; PNP) for color control.
