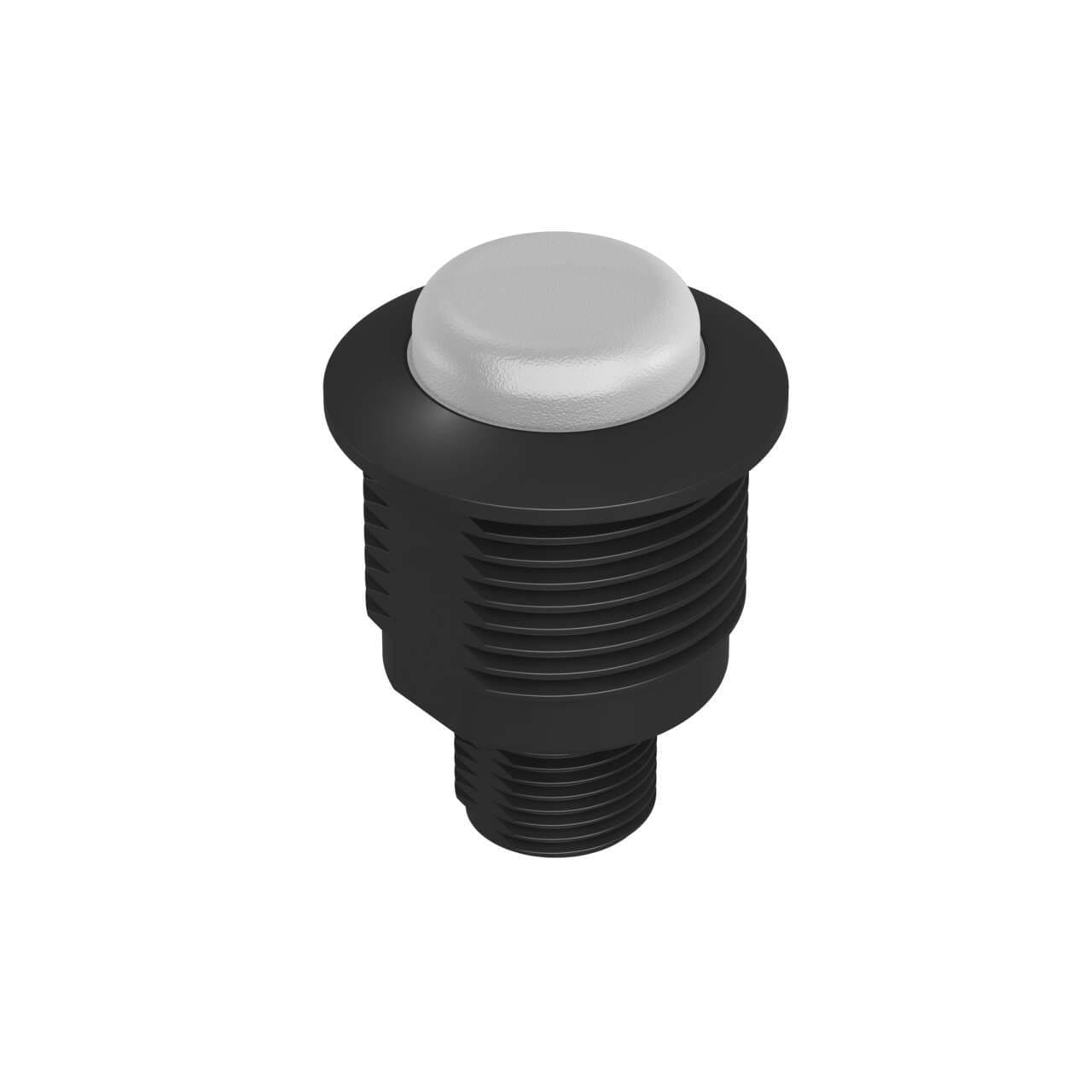

S22DLHWQ Banner Pick-to-Light Sensors
Part#:S22DLHWQ
Alt. Part#:87870
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Daylight Visible EZ-Light High Intensity 22 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: White; Input: PNP; 4-pin M12 Integral QD
Product Details
- Weight 54.43104 g
- Country Of Origin CN
- Mounting Thread M22 x 1.5
- Animation Option 1 Solid On
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- Housing Style Barrel Mount - Flat Window
- Max Current Color (mA) 60
- Color Technology Standard LED
- Environmental Rating IP67; IP69
- Power DC
- Color Option 1 White
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Cable Length (m) 0.15
- Product Size (mm) 22
- Supply Voltage 9-30 V dc
- Primary Window Material Polycarbonate Clear
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 20.0
- Max Op. Temperature (°C) 60
- Number of Colors / Segments 1
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 26.0 x 35.3
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Max Input Response Time (ms) 1
- IO Link No
- Power Source DC
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 7500K
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Hazardous Area No
- Wireless No
- Feature: Audible No
- Multi-Color Device Single Color On
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Feature: Washdown Rated Yes
- Modbus RTU No
- Feature: Quick Disconnect Yes
- Indication Intensity High Brightness & Daylight Visible
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22DLHWQ on Powermatic Associates is $50.00. Order now.
About the product
Banner Engineering S22DLHWQ, part of the EZ-LIGHT series, is a pilot light designed with daylight-visible 1-color white LED illumination. This product features a clear Polycarbonate (PC) window and base, with a black housing. It has a 22mm indicator diameter and is equipped with a 4-pin M12 Euro-style QD connector for connectivity. The S22DLHWQ operates on a supply voltage of 9Vdc-30Vdc (12Vdc-24Vdc nom.) and is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +60°C. This part boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring durability in various environments. The shape of the S22DLHWQ is characterized by a flat window and a threaded cylindrical barrel. It has a current consumption of 60mA and includes 1 x digital input (9-30Vdc; NPN/PNP) for color control.
