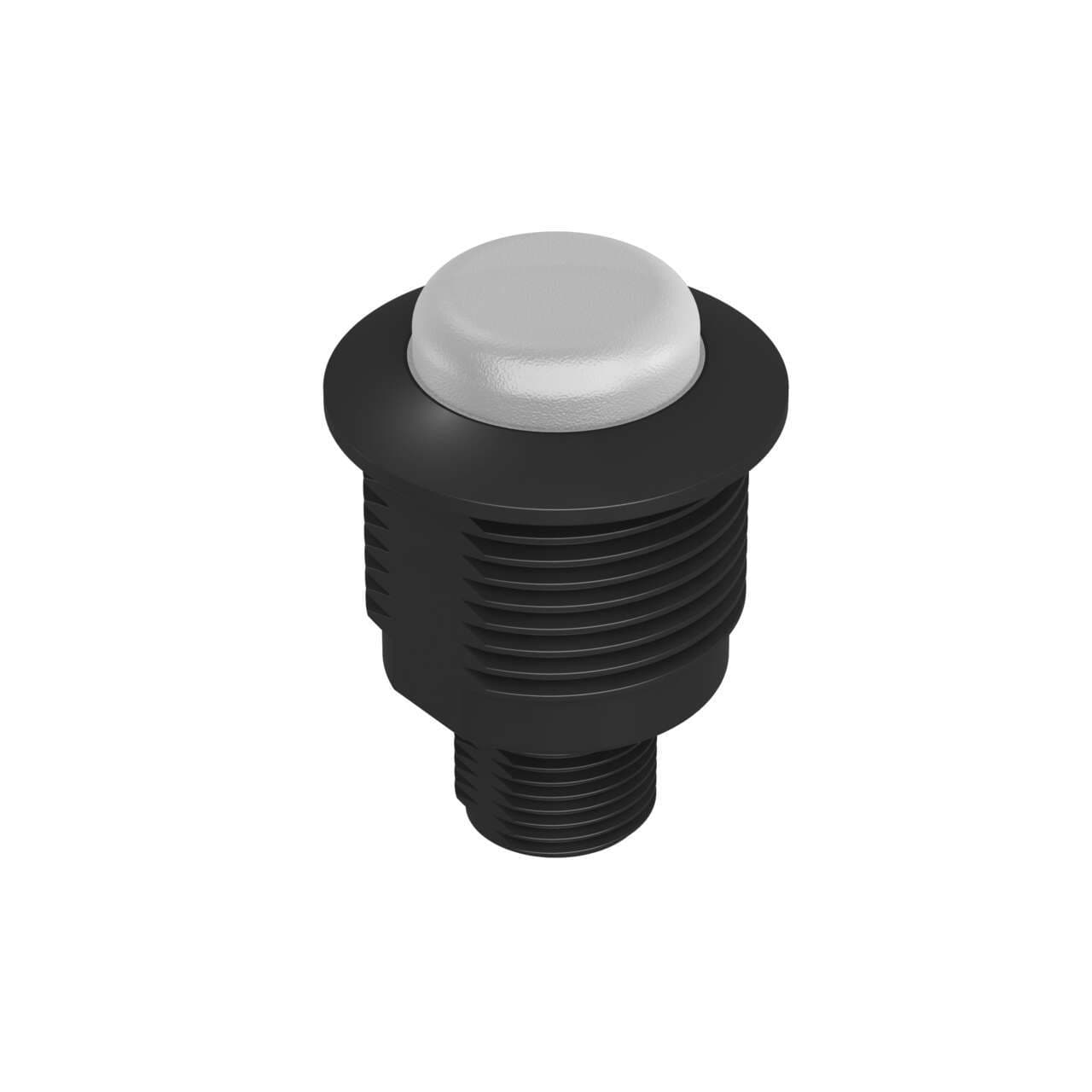

S22DLRXXPQ Banner Pick-to-Light Sensors

Name: S22DLRXXPQ
Brand: Banner
Price: 36 USD
Availability: BackOrder

Part#:S22DLRXXPQ

Alt. Part#:86136

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

S22 Daylight Visible EZ Light - 22 mm - IP67; Single Color: Red; 10-30 V dc PNP Input; 4-pin M12 Integral QD

Product Details

Weight
54.43104 g
Country Of Origin
CN
Cable Length (m)
0.15
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Color Option 1
Red
Min Op. Temperature (°C)
-40
Input Type
PNP
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Feature: Chemical Resistant
No
Number of Colors / Segments
1
Power Source
DC
Supply Voltage
10-30 V dc
Feature: Washdown Rated
Yes
Wireless
No
Housing Style
Barrel Mount - Flat Window
Animation Option 1
Solid On
Number of Input Pins/Conductors
4
Feature: Audible
No
Lumens Color 1
1.4
Max Input Response Time (ms)
1

Primary Window Material

Polycarbonate Diffused

IO Link

Product Size (mm)

Primary Housing Material

Polycarbonate

Max Op. Temperature (°C)

Multi-Color Device

Single Color On

Indication

Yes

Color Technology

Standard LED

Environmental Rating

IP67; IP69

Indication Intensity

High Brightness & Daylight Visible

Quick Disconnect Type

M12 (Euro)

NEMA Type and UL Type Rating

NEMA and UL 4X, 13

Feature: Quick Disconnect

Yes

Power

Connection

Integral QD

Physical Dimensions (LxWxH or DxH mm)

26.0 x 35.3

Feature: Hazardous Area

Mounting Thread

M22 x 1.5

Max Current Color (mA)

Primary Housing Color

Black

Modbus RTU

Pro-Editor Compatible (Discrete)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22DLRXXPQ on Powermatic Associates is $36.00. Order now.

About the product

Banner Engineering S22DLRXXPQ, part of the EZ-LIGHT series, is a pilot light designed with daylight-visible 1-color Red LED illumination. This product features a clear Polycarbonate (PC) window and base, with a diameter of 22mm for the indicator. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity and is housed in a black casing. The supply voltage required ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It is designed for flush mounting in a 22mm hole with an M22 thread. The S22DLRXXPQ operates within an ambient air temperature range of -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape of the part is characterized by a flat window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 1 x digital input (10-30Vdc; PNP) for color control.

S22DLRXXPQ Related Documents
