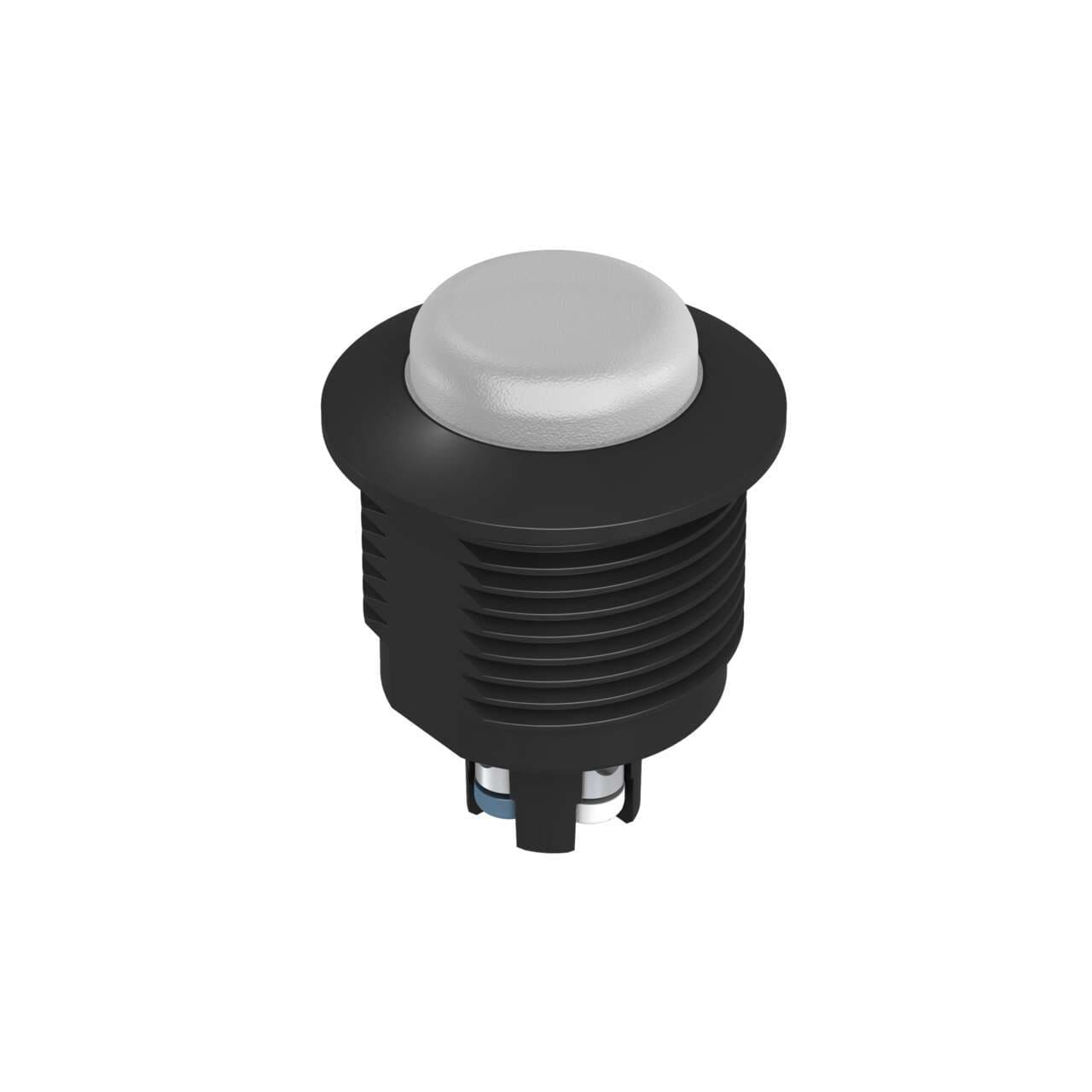

S22DLYXXPT Banner Pick-to-Light Sensors

Name: S22DLYXXPT
Brand: Banner
Price: 43 USD
Availability: BackOrder

Part#:S22DLYXXPT

Alt. Part#:86149

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

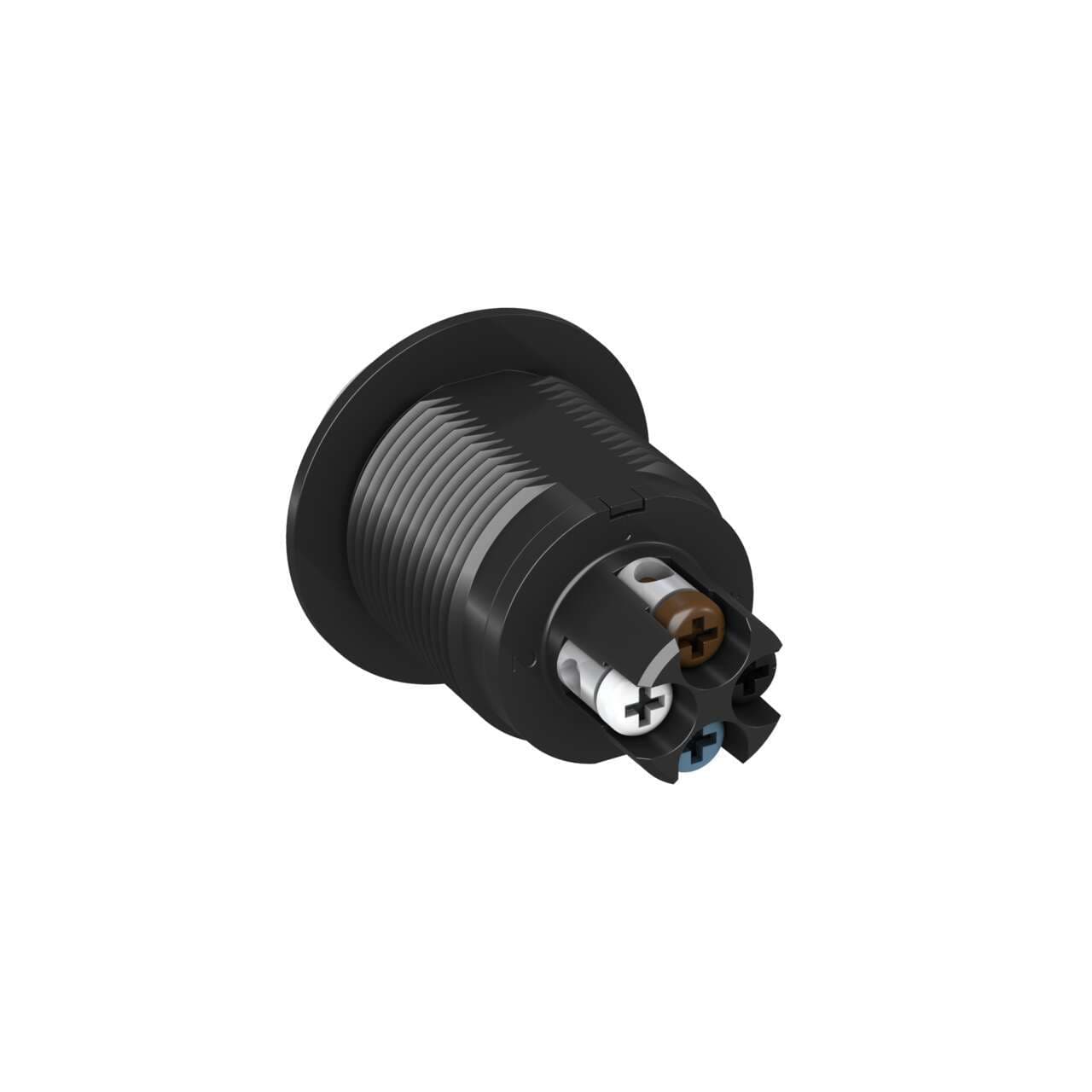

S22 Daylight Visible EZ Light - 22 mm - IP67; Single Color: Yellow; 10-30 V dc PNP Input; 4-screw Terminal Wiring

Product Details

Weight
63.50288 g
Country Of Origin
CN
Product Size (mm)
22
Lumens Color 1
1.2
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
IO Link
No
Primary Housing Material
Polycarbonate
Color Technology
Standard LED
Max Op. Temperature (°C)
50
Multi-Color Device
Single Color On
Number of Colors / Segments
1
Supply Voltage
10-30 V dc
Primary Housing Color
Black
Feature: Quick Disconnect
No
Indication
Yes
Number of Input Pins/Conductors
4
Min Op. Temperature (°C)
-40
Modbus RTU
No
Power
DC
Color Option 1
Yellow

Input Type

PNP

Feature: Hazardous Area

Pro-Editor Compatible (Discrete)

Housing Style

Barrel Mount - Flat Window

Color 1 - Wavelength/Color Temp/Coordinates

590 nm

Environmental Rating

IP67; IP69

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Max Current Color (mA)

Primary Window Material

Polycarbonate Diffused

Wireless

Mounting Thread

M22 x 1.5

Connection

Terminal

Physical Dimensions (LxWxH or DxH mm)

26.0 x 34.2

Feature: Chemical Resistant

Feature: Washdown Rated

Yes

Power Source

Animation Option 1

Solid On

Max Input Response Time (ms)

Feature: Audible

Indication Intensity

High Brightness & Daylight Visible

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22DLYXXPT on Powermatic Associates is $43.00. Order now.

About the product

Banner Engineering S22DLYXXPT, part of the EZ-LIGHT series, is a pilot light designed with daylight-visible 1-color yellow LED illumination. This part features a clear Polycarbonate (PC) window and base, with a black housing. It has a 22mm indicator diameter and utilizes a screw-clamp terminal connection for installation. The S22DLYXXPT operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is designed for flush mounting in a 22mm hole with an M22 thread. It is capable of operating in ambient air temperatures ranging from -40°C to +50°C. This part offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring its suitability for various environments. The design includes a flat window and threaded cylindrical barrel, with a current consumption of 25mA. Additionally, it features 1 x digital input (10-30Vdc; PNP) for color control.
