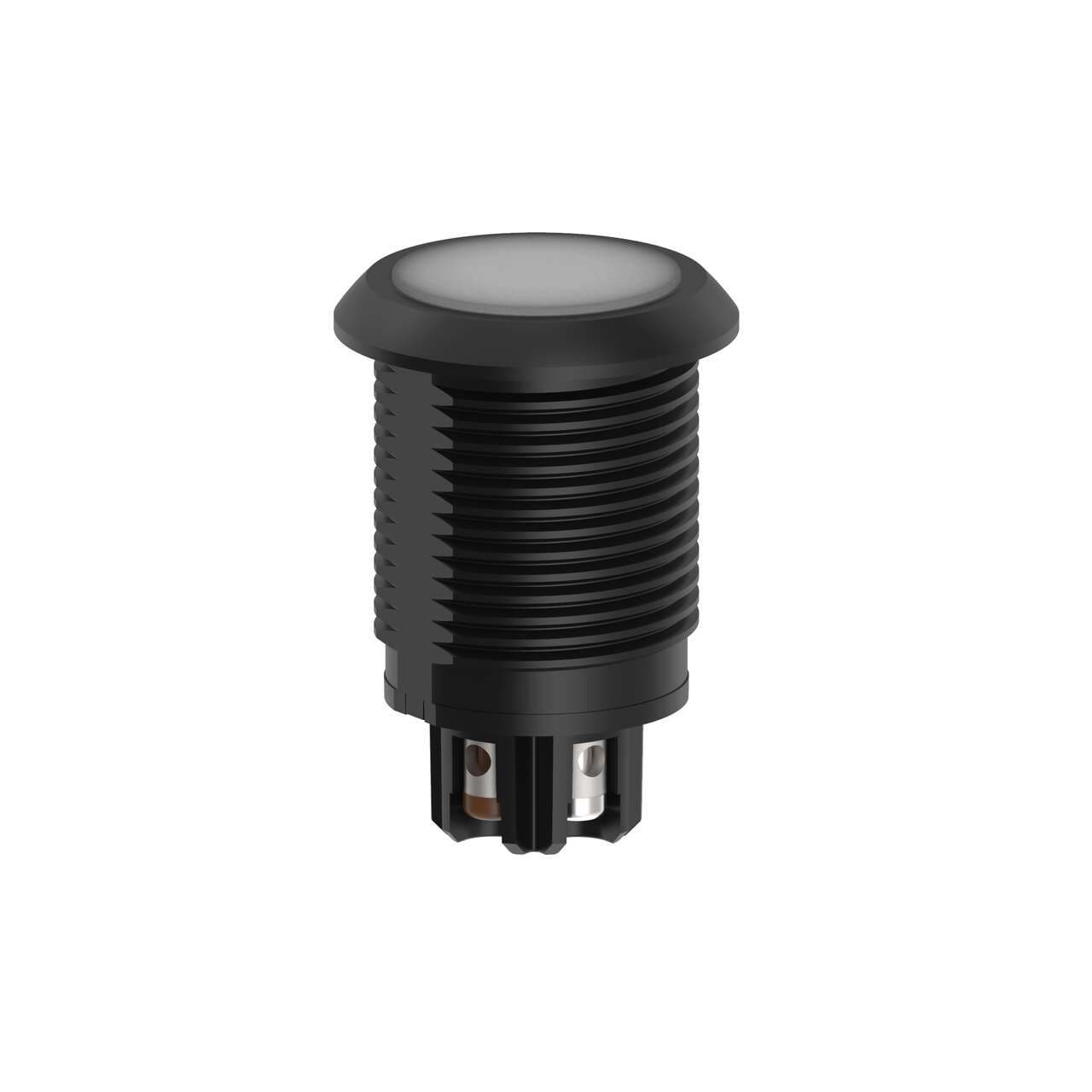

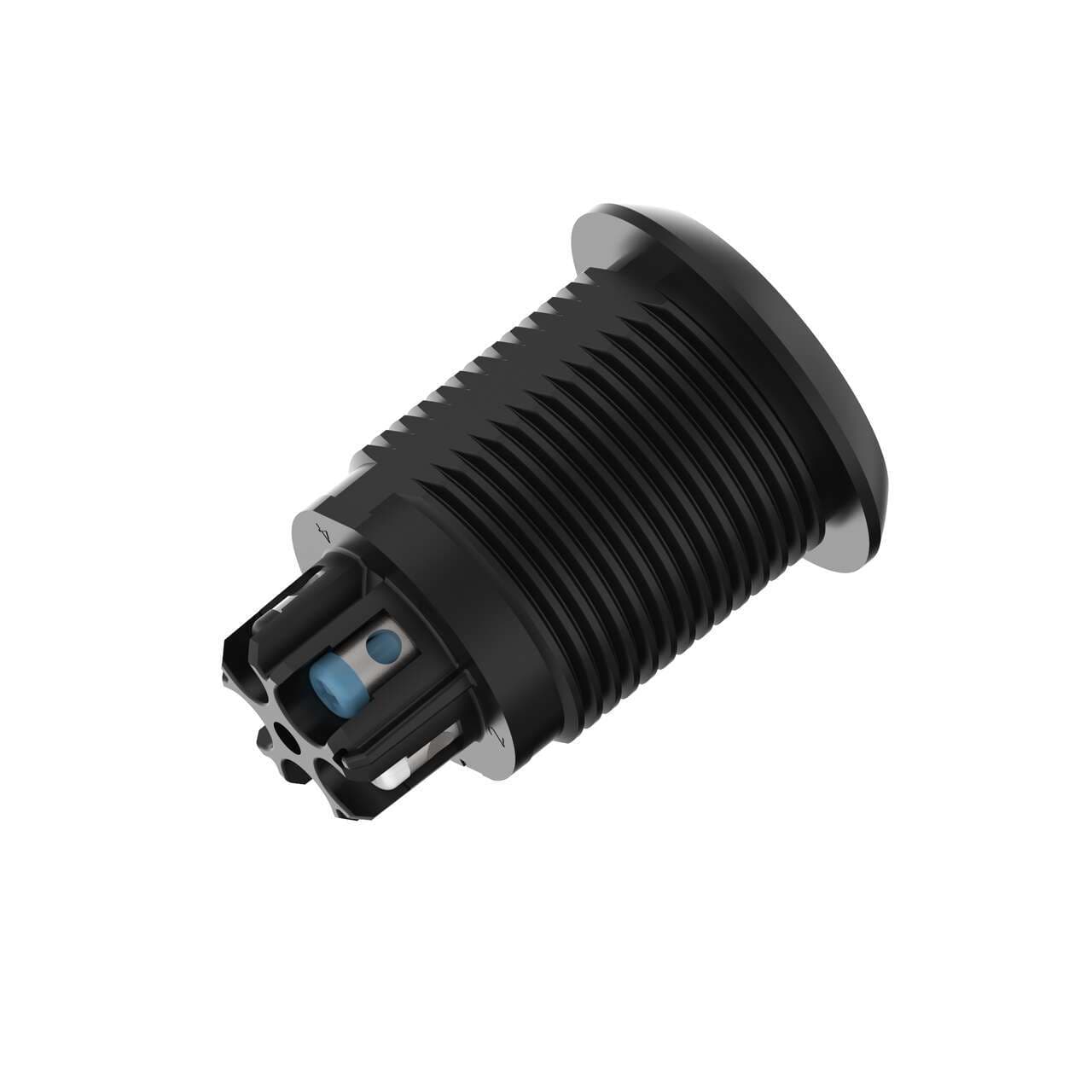

S22L2SRGB14T Banner Pick-to-Light Sensors

Product Details

• Weight
  21.318824 g
• Country Of Origin
  MX
• Power Source
  DC
• Color Option 2
  Green
• Color Option 5
  White
• Color 6 - Wavelength/Color Temp/Coordinates
  0.345, 0.161
• Min Op. Temperature (°C)
  -40
• Number of Colors / Segments
  14
• Color 1 - Wavelength/Color Temp/Coordinates
  625 nm
• Primary Housing Material
  Polycarbonate
• Color Technology
  RGB Configurable
• Color Option 3
  Blue
• Lumens Color 7
  2.0
• Cable Length (m)
  0.15
• Connection
  Terminal
• Color 3 - Wavelength/Color Temp/Coordinates
  465 nm
• Color 7 - Wavelength/Color Temp/Coordinates
  492 nm
• Primary Housing Color
  Black
• Wireless
  No
• Housing Style
  Barrel Mount - Flat Window
Color Option 1
Red
Color Option 4
Yellow
Max Current Color (mA)
70
Max Input Response Time (ms)
250
Power
DC
Color 2 - Wavelength/Color Temp/Coordinates
527 nm
Lumens Color 5
2.5
Supply Voltage
10-30 V dc
Physical Dimensions (LxWxH or DxH mm)
27.3 x 39.1
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Product Size (mm)
22
Lumens Color 3
0.30
Color Option 7
Cyan
Color 5 - Wavelength/Color Temp/Coordinates
5700K
I/O Block Compatible
Yes
Primary Window Material
Polycarbonate Diffused
Mounting Thread
M22 x 1.5
Lumens Color 2
1.9
Color Option 6
Magenta
Lumens Color 6
1.2
Storage Temp (°C)
-40 to 70
Lumens Color 4
2.5
Number of Input Pins/Conductors
5
Environmental Rating
IP66; IP67; IP69
Feature: Quick Disconnect
No
Indication
Yes
Lumens Color 1
0.80
Color 4 - Wavelength/Color Temp/Coordinates
571 nm
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Multi-Color Device
Single Color On
Modbus RTU
No
Input Type
Bimodal (PNP/NPN)
Feature: Chemical Resistant
No
IO Link
No
Feature: Washdown Rated
Yes
Pro-Editor Compatible (Discrete)
Yes
Feature: Hazardous Area
No
Max Op. Temperature (°C)
50
Feature: Audible
No
