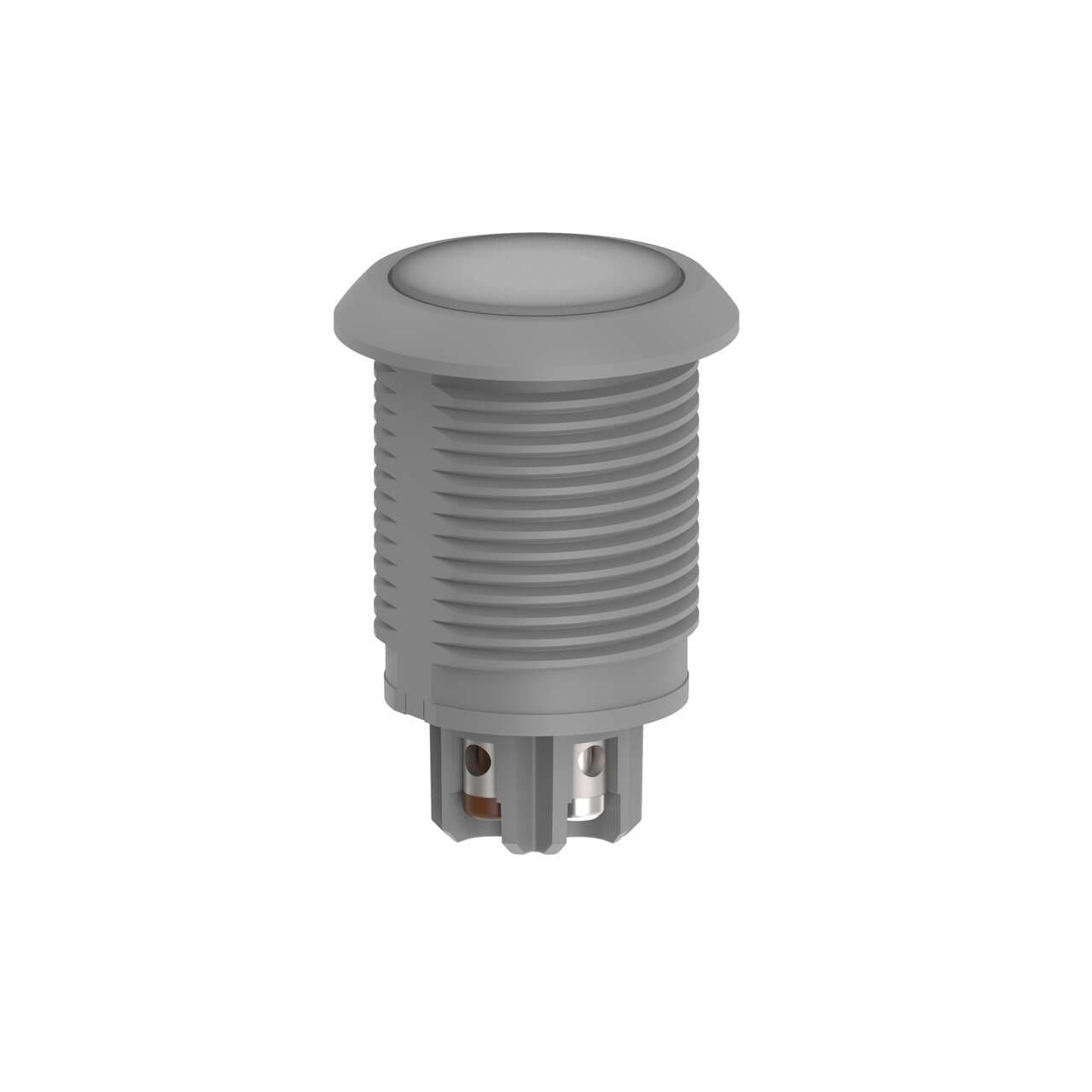

S22L2FRGB7T Banner Pick-to-Light Sensors

Product Details

• Weight
  21.318824 g
• Country Of Origin
  MX
• Color Input Control
  Multiple (One or more wires/color, enables more colors than input wires)
• Color Option 1
  Red
• Color Option 4
  Yellow
• Color Option 7
  Cyan
• Feature: Washdown Rated
  Yes
• Housing Style
  Barrel Mount - Flat Window
• Color Technology
  RGB Configurable
• Lumens Color 3
  0.30
• Color 6 - Wavelength/Color Temp/Coordinates
  0.345, 0.161
• I/O Block Compatible
  Yes
• Number of Colors / Segments
  7
• Color Option 3
  Blue
• Lumens Color 6
  1.2
• Lumens Color 7
  2.0
• Max Op. Temperature (°C)
  50
• Feature: Hazardous Area
  No
• Mounting Thread
  M22 x 1.5
• Lumens Color 2
  1.9
Color 4 - Wavelength/Color Temp/Coordinates
571 nm
Max Current Color (mA)
70
Max Input Response Time (ms)
250
Power Source
DC
Connection
Terminal
Color Option 5
White
Input Type
Bimodal (PNP/NPN)
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Modbus RTU
No
Power
DC
Indication
Yes
Lumens Color 1
0.80
Lumens Color 4
2.5
Color 7 - Wavelength/Color Temp/Coordinates
492 nm
Feature: Audible
No
Primary Housing Material
FDA Copolyester
Color 2 - Wavelength/Color Temp/Coordinates
527 nm
Color 3 - Wavelength/Color Temp/Coordinates
465 nm
Color Option 6
Magenta
Color Option 2
Green
Physical Dimensions (LxWxH or DxH mm)
27.3 x 39.1
Wireless
No
Product Size (mm)
22
Wire Selectable Function
Flashing
Primary Housing Color
FDA Gray
Feature: Quick Disconnect
No
Environmental Rating
IP66; IP67; IP69
Feature: Chemical Resistant
No
Supply Voltage
10-30 V dc
Storage Temp (°C)
-40 to 70
Color 5 - Wavelength/Color Temp/Coordinates
5700K
Pro-Editor Compatible (Discrete)
Yes
Lumens Color 5
2.5
Number of Input Pins/Conductors
5
Primary Window Material
Copolyester Diffused
IO Link
No
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Multi-Color Device
Single Color On
Min Op. Temperature (°C)
-40
