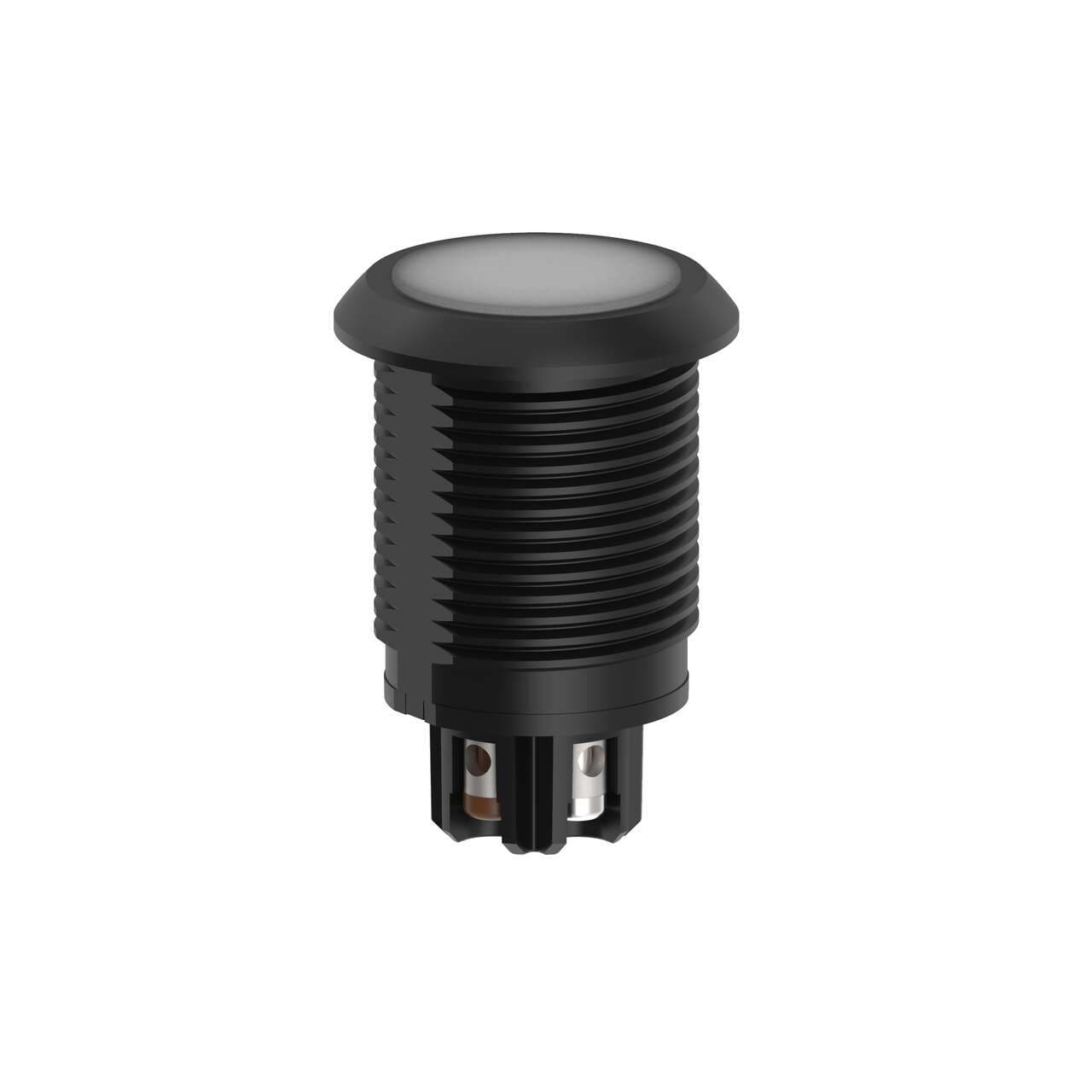

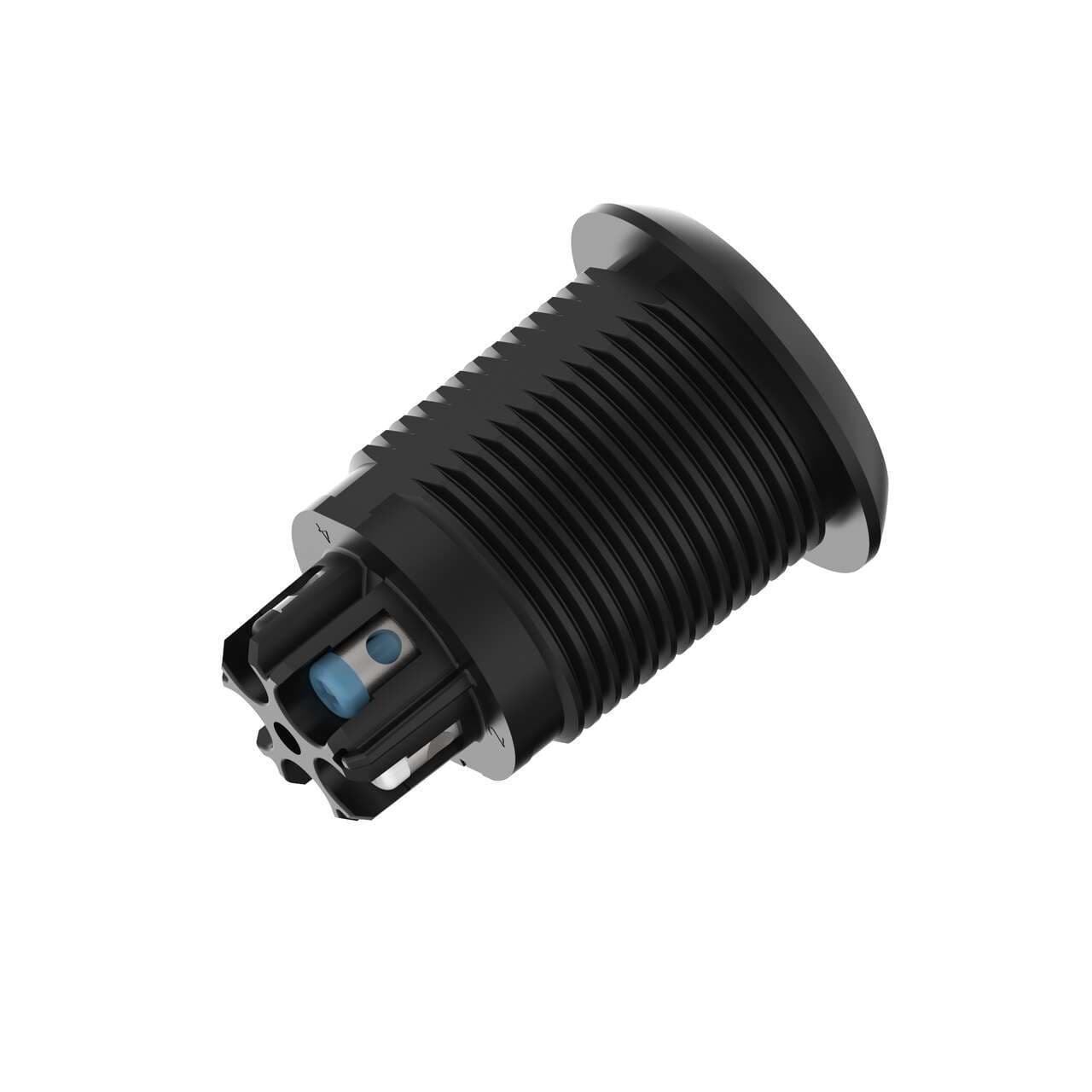

S22L2SRGB7T Banner Pick-to-Light Sensors

Product Details

• Weight
  21.318824 g
• Country Of Origin
  MX
• Color Input Control
  Multiple (One or more wires/color, enables more colors than input wires)
• Color 2 - Wavelength/Color Temp/Coordinates
  527 nm
• Lumens Color 4
  2.5
• Wire Selectable Function
  Flashing
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Mounting Thread
  M22 x 1.5
• Lumens Color 3
  0.30
• Color Option 2
  Green
• Max Current Color (mA)
  70
• Environmental Rating
  IP66; IP67; IP69
• Feature: Audible
  No
• Cable Length (m)
  0.15
• Color Option 1
  Red
• Color Option 5
  White
• Color Option 6
  Magenta
• Supply Voltage
  10-30 V dc
• Min Op. Temperature (°C)
  -40
• Modbus RTU
  No
Power Source
DC
Lumens Color 5
2.5
Max Input Response Time (ms)
250
Feature: Washdown Rated
Yes
Housing Style
Barrel Mount - Flat Window
Color Technology
RGB Configurable
Color Option 3
Blue
Color 5 - Wavelength/Color Temp/Coordinates
5700K
Number of Input Pins/Conductors
5
Primary Window Material
Polycarbonate Diffused
Indication
Yes
Lumens Color 1
0.80
Color 3 - Wavelength/Color Temp/Coordinates
465 nm
Color Option 7
Cyan
I/O Block Compatible
Yes
Storage Temp (°C)
-40 to 70
Power
DC
Lumens Color 2
1.9
Lumens Color 6
1.2
Color 7 - Wavelength/Color Temp/Coordinates
492 nm
Max Op. Temperature (°C)
50
Pro-Editor Compatible (Discrete)
Yes
Primary Housing Material
Polycarbonate
Product Size (mm)
22
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Color Option 4
Yellow
Lumens Color 7
2.0
Physical Dimensions (LxWxH or DxH mm)
27.3 x 39.1
Feature: Hazardous Area
No
Number of Colors / Segments
7
Connection
Terminal
Color 4 - Wavelength/Color Temp/Coordinates
571 nm
Color 6 - Wavelength/Color Temp/Coordinates
0.345, 0.161
Input Type
Bimodal (PNP/NPN)
IO Link
No
Feature: Chemical Resistant
No
Primary Housing Color
Black
Multi-Color Device
Single Color On
Wireless
No
