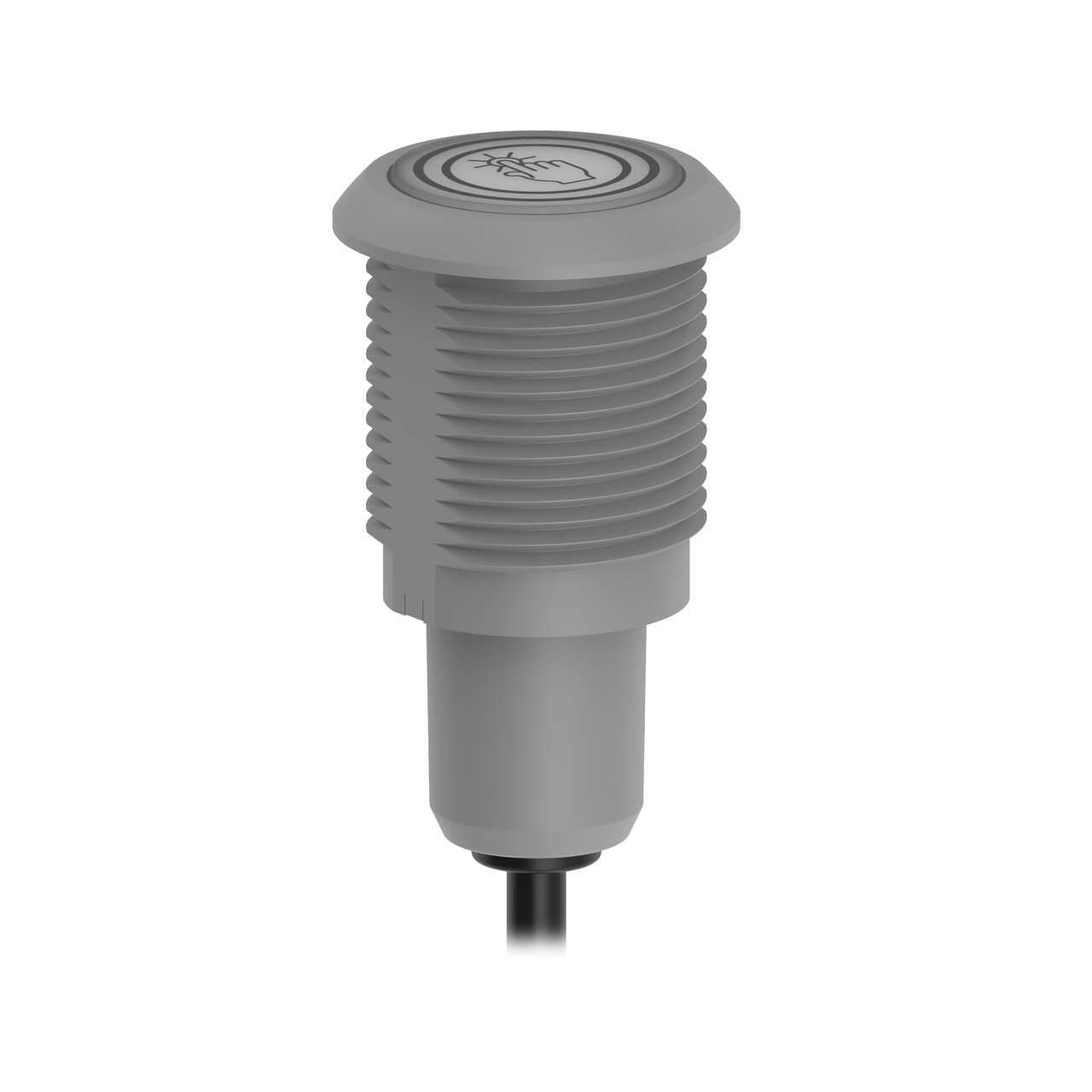

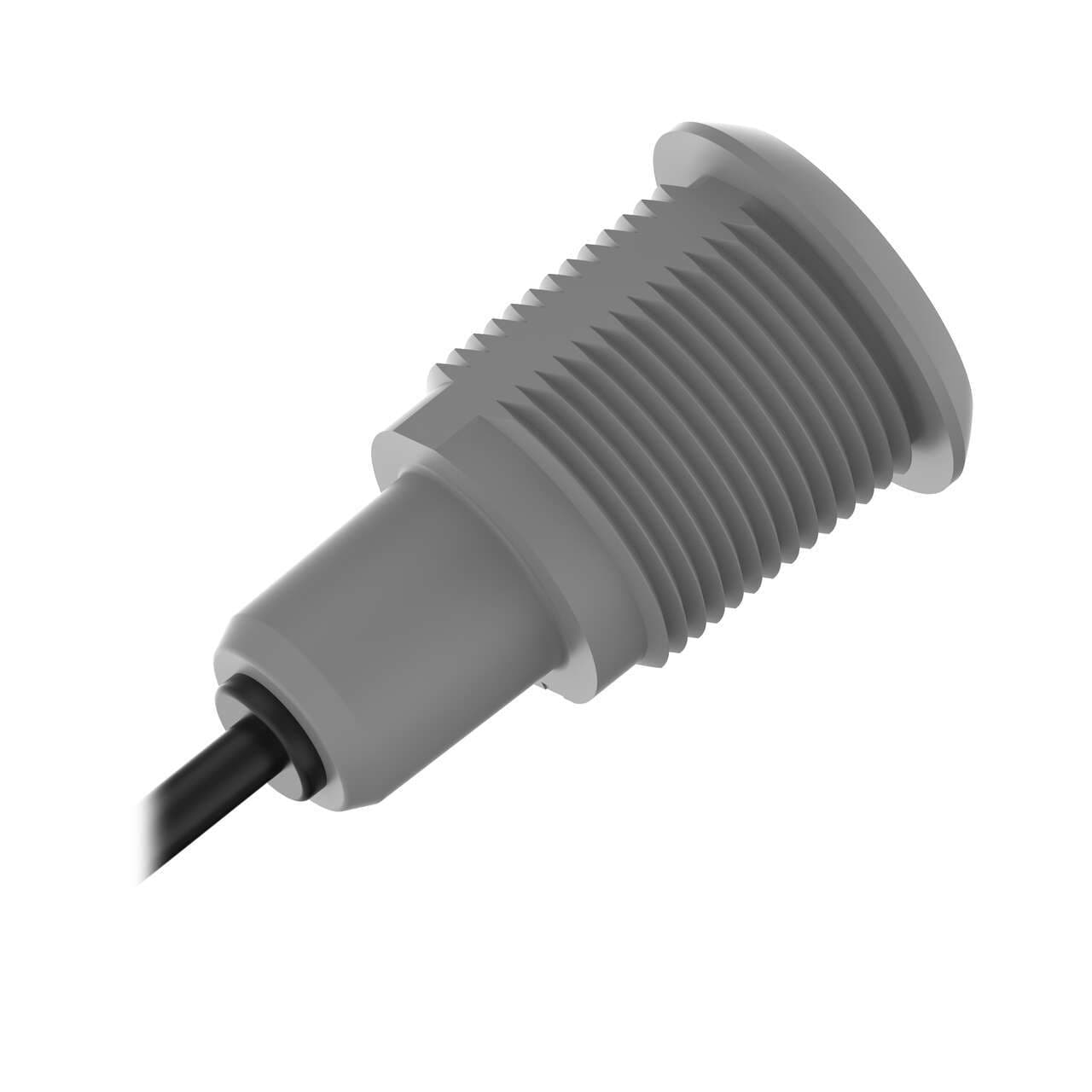

S22RMTFGRHQP Banner Pick-to-Light Sensors

Product Details

• Weight
  31.75144 g
• Country Of Origin
  US
• Primary Housing Material
  FDA Copolyester
• Color Option 1
  Green
• Pro-Editor Compatible (Discrete)
  Yes
• Power Source
  DC
• Color 1 - Wavelength/Color Temp/Coordinates
  527 nm
• Number of Input Pins/Conductors
  5
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Feature: Washdown Rated
  Yes
• IO Link
  No
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Color Technology
  RGB Configurable
• Max Current Color (mA)
  80
• Power
  DC
• Product Size (mm)
  22
• Input Type
  Bimodal (PNP/NPN)
• Primary Housing Color
  FDA Gray
• Cable Length (m)
  0.15
• Number of Colors / Segments
  2
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Output Type
Bipolar (NPN & PNP)
Lumens Color 2
0.08
Acknowledge (Sense) Light
Red
Max Output Response Time (ms)
300
Button Operation
Momentary
Mounting Thread
M22 x 1.5
Lumens Color 1
0.18
Quick Disconnect Type
M12 (Euro)
Pick-to-Light Function
H
Operation
Normally Closed
Primary Window Material
Copolyester Diffused
Modbus RTU
No
Max Input Response Time (ms)
20
I/O Block Compatible
Yes
Feature: Audible
No
Job Light
Green
Activation Function
Capacitive Touch
Actuation
Yes
Connection
Pigtail QD
Physical Dimensions (LxWxH or DxH mm)
27.3 x 47.8
Storage Temp (°C)
-40 to 70
Feature: Hazardous Area
No
Wireless
No
Max Op. Temperature (°C)
50
Feature: Chemical Resistant
No
Supply Voltage
10-30 V dc
Environmental Rating
IP66; IP67; IP69
Feature: Quick Disconnect
Yes
Housing Style
Barrel Mount - Flat Window
Multi-Color Device
Single Color On
Color Option 2
Red
Min Op. Temperature (°C)
-40
