S22RMTFGRHT Banner Pick-to-Light Sensors
Part#:S22RMTFGRHT
Alt. Part#:804288
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Pro Touch Series: 2-color RGB Touch Sensor-FDA; Voltage: 10-30 V dc; Housing: Copolyester; IP67 IP69K; Output: Bipolar, NC, Momentary; Colors: Green Red; 5-screw Terminal Wiring
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Number of Input Pins/Conductors 5
- Max Input Response Time (ms) 20
- Number of Colors / Segments 2
- Power DC
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Output Type Bipolar (NPN & PNP)
- Primary Housing Material FDA Copolyester
- Mounting Thread M22 x 1.5
- Max Current Color (mA) 80
- Max Output Response Time (ms) 300
- Feature: Washdown Rated Yes
- Color 1 - Wavelength/Color Temp/Coordinates 527 nm
- Physical Dimensions (LxWxH or DxH mm) 27.3 x 39.1
- Acknowledge (Sense) Light Red
- Power Source DC
- Color Technology RGB Configurable
- Primary Housing Color FDA Gray
- Pro-Editor Compatible (Discrete) Yes
- Product Size (mm) 22
- Connection Terminal
- Pick-to-Light Function H
- Max Op. Temperature (°C) 50
- Wireless No
- I/O Block Compatible Yes
- Multi-Color Device Single Color On
- Actuation Yes
- Color Option 1 Green
- Operation Normally Closed
- Storage Temp (°C) -40 to 70
- IO Link No
- Housing Style Barrel Mount - Flat Window
- Lumens Color 1 0.18
- Input Type Bimodal (PNP/NPN)
- Environmental Rating IP66; IP67; IP69
- Feature: Chemical Resistant No
- Activation Function Capacitive Touch
- Lumens Color 2 0.08
- Supply Voltage 10-30 V dc
- Min Op. Temperature (°C) -40
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Job Light Green
- Button Operation Momentary
- Modbus RTU No
- Primary Window Material Copolyester Diffused
- Feature: Quick Disconnect No
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22RMTFGRHT on Powermatic Associates is $94.00. Order now.
About the product

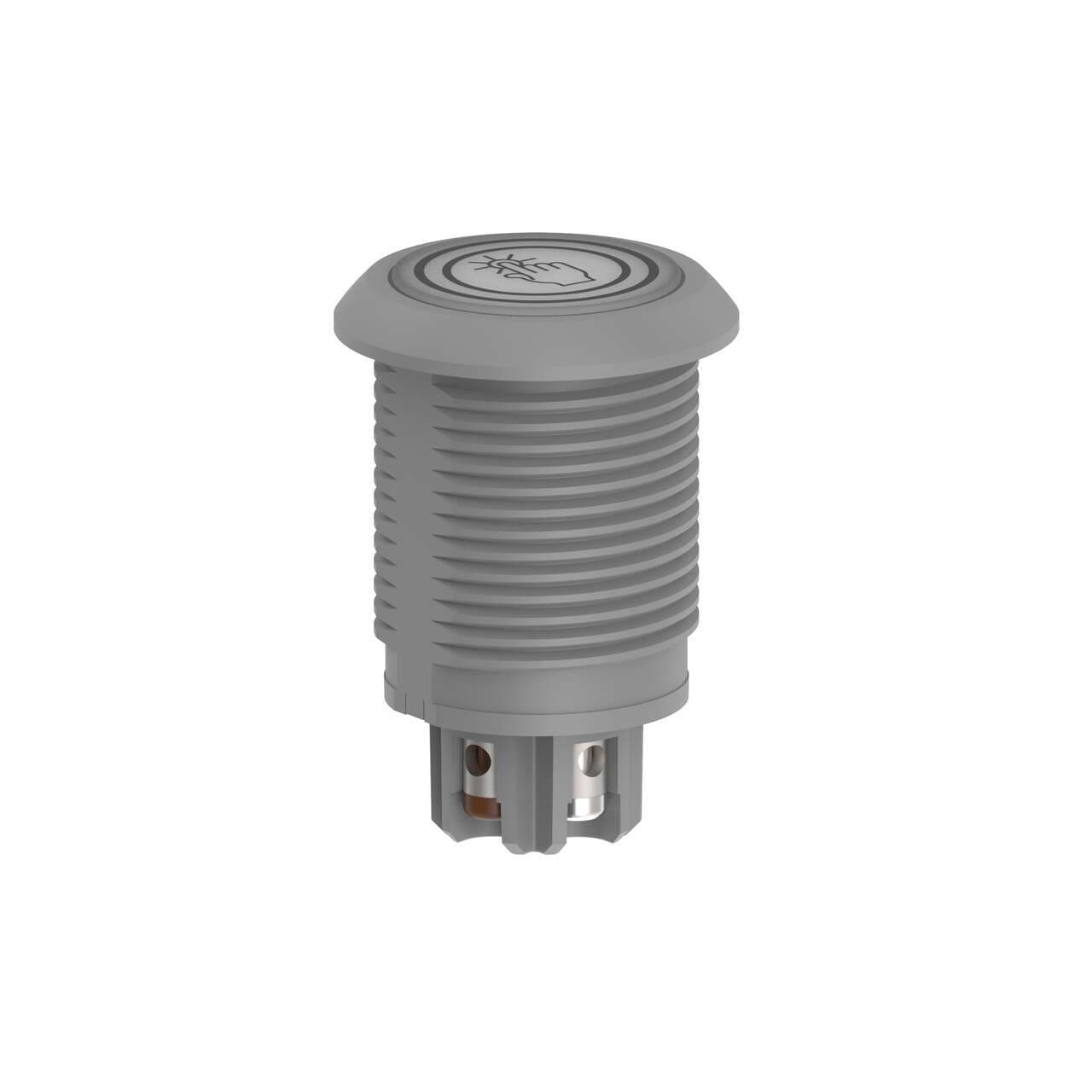

Banner Engineering S22RMTFGRHT is an illuminated capacitive touch-sensitive button designed for hygienic applications, utilizing FDA-grade materials. It features a copolyester diffused window and FDA copolyester housing with a 22mm button diameter. The device offers 2-color LED illumination, green when not activated and red when activated, for clear status indication. It supports a screw-clamp terminal connection and has a gray housing. The S22RMTFGRHT operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and can be flush mounted in a 22mm hole using an M22 thread. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with IP66, IP67, and IP69K ratings. The shape of the part is characterized by a flat window and a threaded cylindrical barrel. It includes 1 x digital output (10-30Vdc; PNP/NPN) for touch functionality and 2 x digital inputs (10-30Vdc; PNP/NPN) for color control. The current consumption is 80mA, and it features a momentary NC (Normally Closed) touch output operating mode.
