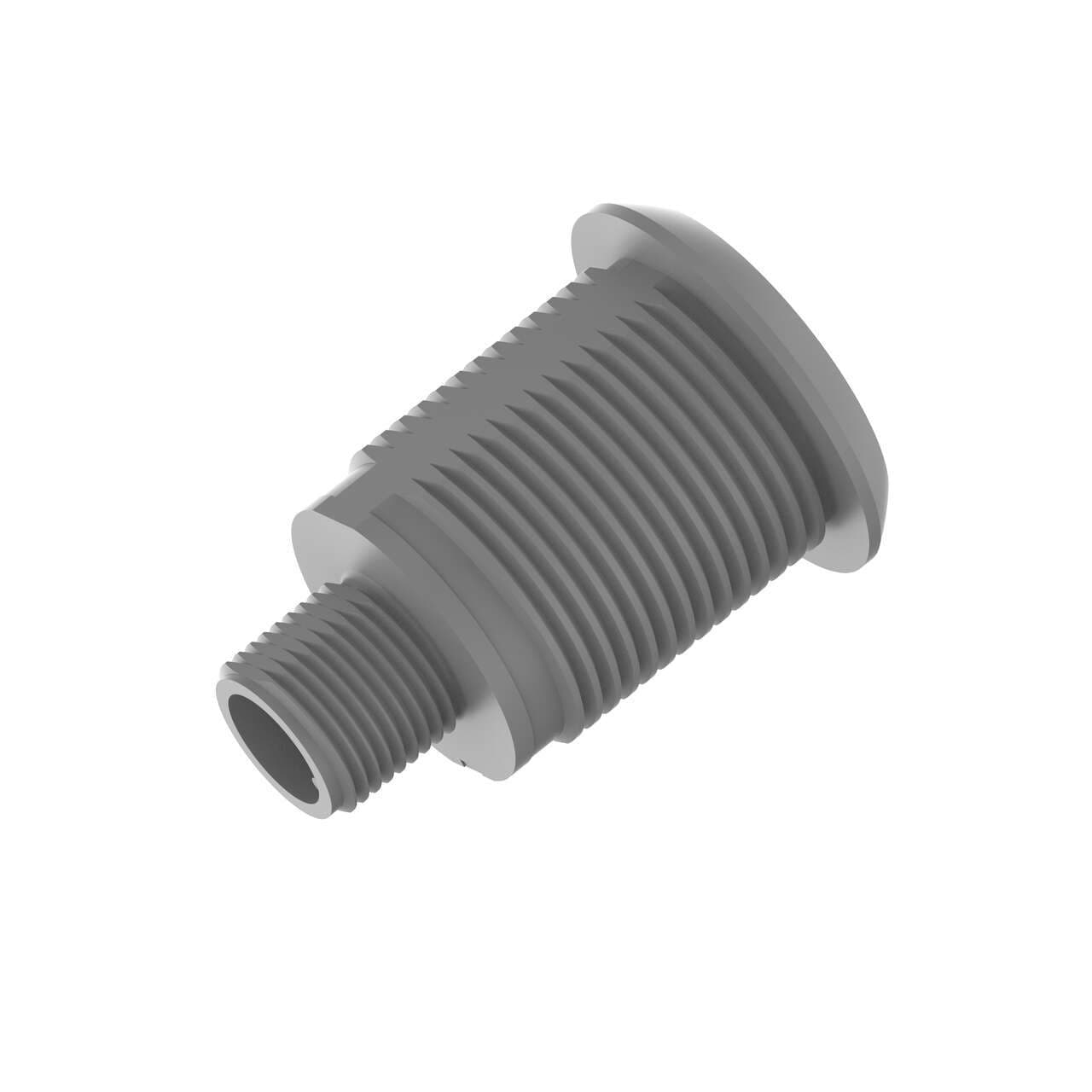

S22RLTFGRHQ Banner Pick-to-Light Sensors
Part#:S22RLTFGRHQ
Alt. Part#:804285
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Pro Touch Series: 2-color RGB Touch Sensor-FDA; Voltage: 10-30 V dc; Housing: Copolyester; IP67 IP69K; Output: Bipolar, NC, Latching; Colors: Green Red; 5-pin M12 Integral QD
Product Details
- Weight 19.504456 g
- Country Of Origin US
- Housing Style Barrel Mount - Flat Window
- Color Technology RGB Configurable
- Acknowledge (Sense) Light Red
- Max Input Response Time (ms) 20
- Primary Window Material Copolyester Diffused
- Activation Function Capacitive Touch
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 10-30 V dc
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 0.18
- Actuation Yes
- Product Size (mm) 22
- Max Current Color (mA) 80
- Environmental Rating IP66; IP67; IP69
- Feature: Washdown Rated Yes
- Power Source DC
- Connection Integral QD
- Lumens Color 2 0.08
- Output Type Bipolar (NPN & PNP)
- Storage Temp (°C) -40 to 70
- IO Link No
- Number of Colors / Segments 2
- Color 1 - Wavelength/Color Temp/Coordinates 527 nm
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color FDA Gray
- Modbus RTU No
- Primary Housing Material FDA Copolyester
- Color Option 1 Green
- Mounting Thread M22 x 1.5
- Color Option 2 Red
- Pick-to-Light Function H
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Power DC
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- I/O Block Compatible Yes
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Max Output Response Time (ms) 300
- Button Operation Latching
- Number of Input Pins/Conductors 5
- Wireless No
- Operation Normally Closed
- Physical Dimensions (LxWxH or DxH mm) 27.3 x 40.2
- Feature: Hazardous Area No
- Job Light Green
- Pro-Editor Compatible (Discrete) Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22RLTFGRHQ on Powermatic Associates is $86.00. Order now.
About the product
Banner Engineering S22RLTFGRHQ is an illuminated capacitive touch-sensitive button designed with hygienic considerations, utilizing FDA-grade materials for both its copolyester diffused window and housing. This part features 2-color LED illumination, green when not activated and red when activated, within a 22mm button diameter. It comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector and is housed in gray. The supply voltage requirement ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It is designed for flush mounting in a 22mm hole with an M22 thread. The S22RLTFGRHQ operates within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP66, IP67, and IP69K. Its shape is characterized by a flat window and a threaded cylindrical barrel. This part has 1 digital output (10-30Vdc; PNP/NPN) for touch functionality and 2 digital inputs (10-30Vdc; PNP/NPN) for color control, with a current consumption of 80mA. The operating mode for the touch output is latched NC (Normally Closed).
