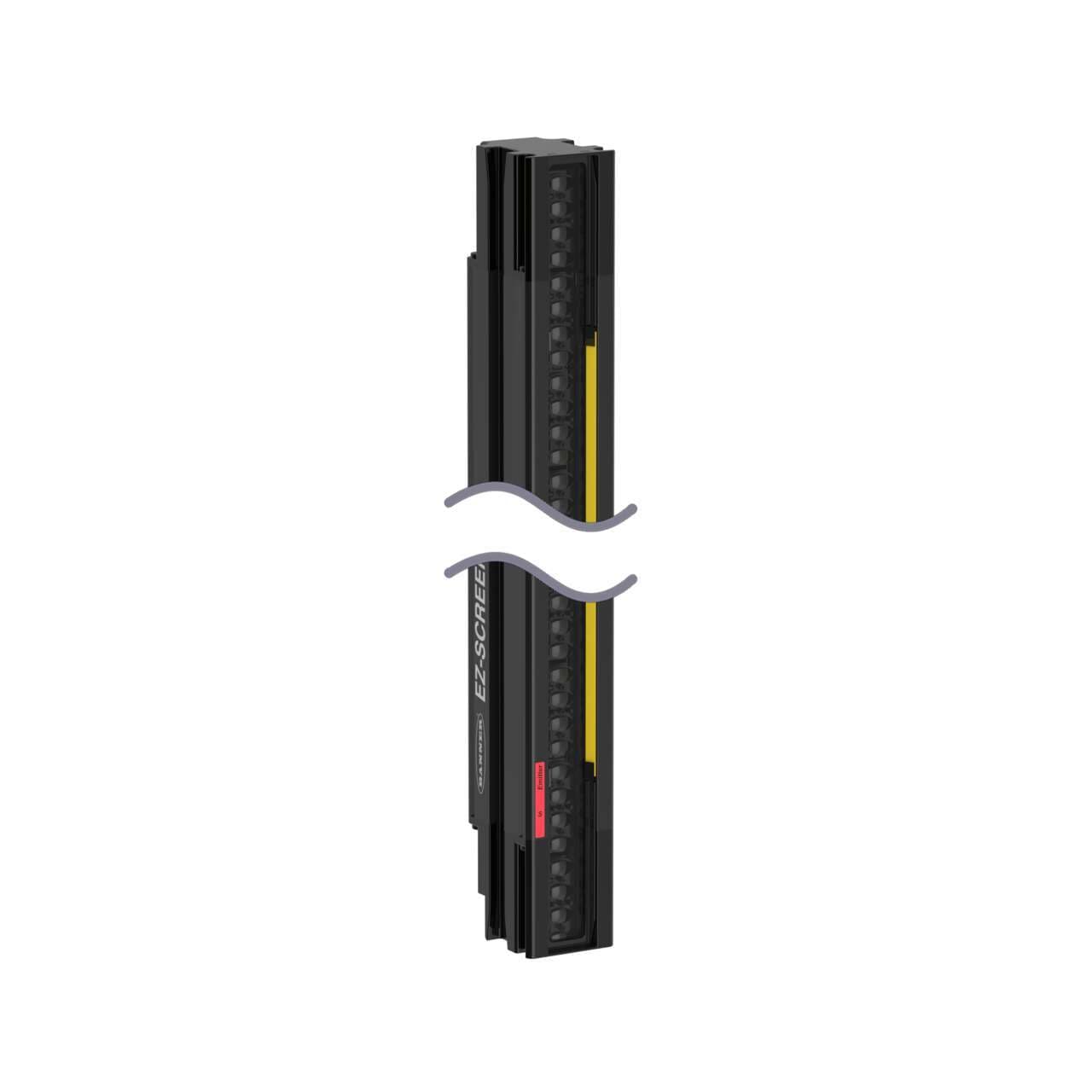

SLLCE40-350-S Banner Safety Light Curtains
Part#:SLLCE40-350-S
Alt. Part#:808925
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN LS Cascade, Emitter; Resolution: 40 mm; Range: 12 m (40 ft); Defined Area: 350 mm (13.8 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Product Details
- Weight 997.9024 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Fixed Blanking No
- External Monitoring Device No
- PL Rating Ple
- Overall Length (mm) 355
- Operating Voltage 24 V dc +/- 15%
- Dimensions WxD (mm) 36 x 45
- Reduced Resolution No
- Fault Output Yes
- Feature: Cascade Yes
- Connector Type Removable Disconnect
- Housing Finish Yellow Polyester
- Short Protection Yes
- Test Input No
- Defined Area Height (mm) 350
- Resolution (mm) 40
- Scan Code Selectable
- OSSD Rating N/A
- IP Rating IP65; IP67
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- SIL Rating SIL3; CL3
- Feature: End-to-End Sensing Yes
- Vibration 10-55 Hz at 0.35 mm
- Safety Level Type 4
- Operating Temperature -20 to +55 deg. C; RH 95%
- System Type Emitter
- Trip/Latch Output N/A
- Supply Current 25 mA Typical
- Shock 10g at 16ms (6000 cycles)
- Feature: ESD Safe No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Distance (m) 0.1 - 12
- Auxiliary Output No
- Feature: Integral Muting No
- Recovery Time 32 / 110
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLLCE40-350-S on Powermatic Associates is $541.00. Order now.
About the product
Banner Engineering SLLCE40-350-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed with a cascadable feature. This part functions as a safety light curtain emitter alone, constructed with an aluminium housing, acrylic lens, and zinc end caps. It features an Integral Removable Disconnect (RD) for its connection type. The dimensions include a 350mm protective height, with a net width of 36 mm, net height of 355 mm, and net depth of 45 mm. The housing is colored yellow, and it operates on a 24Vdc supply voltage. It is designed to work within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP65 and IP67. The light curtain has a 40mm beam spacing/pitch, with 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication. It can sense objects within a distance of 10cm to 12m, utilizing infrared (IR) light with a wavelength of 850 nm. The response time is 8.2ms / 0.0082 s, and it has a resolution of 40mm for arm detection.
