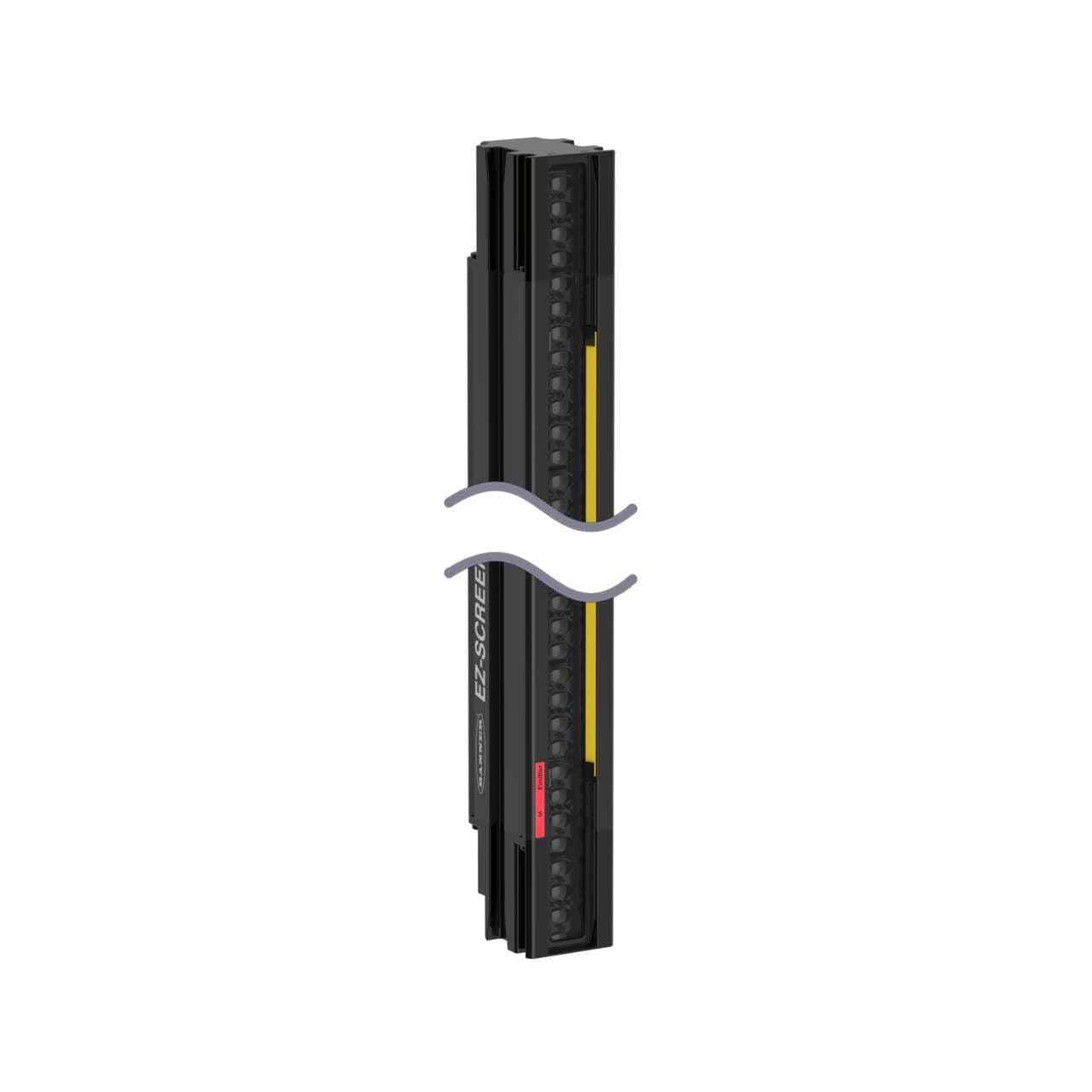

SLLE23-1330-S Banner Safety Light Curtains
Part#:SLLE23-1330-S
Alt. Part#:809097
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN LS, Emitter; Resolution: 23 mm; Range: 12 m (40 ft); Defined Area: 1330 mm (52.4 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Product Details
- Weight 2943.81208 g
- Country Of Origin MX
- Housing Finish Yellow Polyester
- Fixed Blanking No
- Scan Code Selectable
- OSSD Rating N/A
- Feature: End-to-End Sensing Yes
- Dimensions WxD (mm) 36 x 45
- Operating Distance (m) 0.1 - 12
- Shock 10g at 16ms (6000 cycles)
- Effective Aperture Angle Type 4 Per IEC 61496-2
- IP Rating IP65; IP67
- SIL Rating SIL3; CL3
- Test Input No
- Connector Type Removable Disconnect
- Recovery Time 89 / 300
- Supply Current 26 mA Typical
- Feature: ESD Safe No
- Operating Temperature -20 to +55 deg. C; RH 95%
- Auxiliary Output No
- Primary Housing Material Aluminum
- Resolution (mm) 23
- Overall Length (mm) 1333
- Operating Voltage 24 V dc +/- 15%
- System Type Emitter
- Vibration 10-55 Hz at 0.35 mm
- External Monitoring Device No
- PL Rating Ple
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- Safety Level Type 4
- Reduced Resolution No
- Feature: Integral Muting No
- Trip/Latch Output N/A
- Fault Output Yes
- Defined Area Height (mm) 1330
- Short Protection Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLLE23-1330-S on Powermatic Associates is $1,413.00. Order now.
About the product
Banner Engineering SLLE23-1330-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed specifically for hand detection with a resolution of 23mm. This unit, serving as the emitter alone, is encased in an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It features an integral removable disconnect (RD) for its connection type. The protective height of this model is 1330mm, and it comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLE23-1330-S is designed to offer a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. Its dimensions are 36mm in width, 1333mm in height, and 45mm in depth. The light curtain provides a sensing distance from 10cm up to 12m and features a 23mm beam spacing/pitch. It includes 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication and has a response time of 20.9ms / 0.0209 s.
