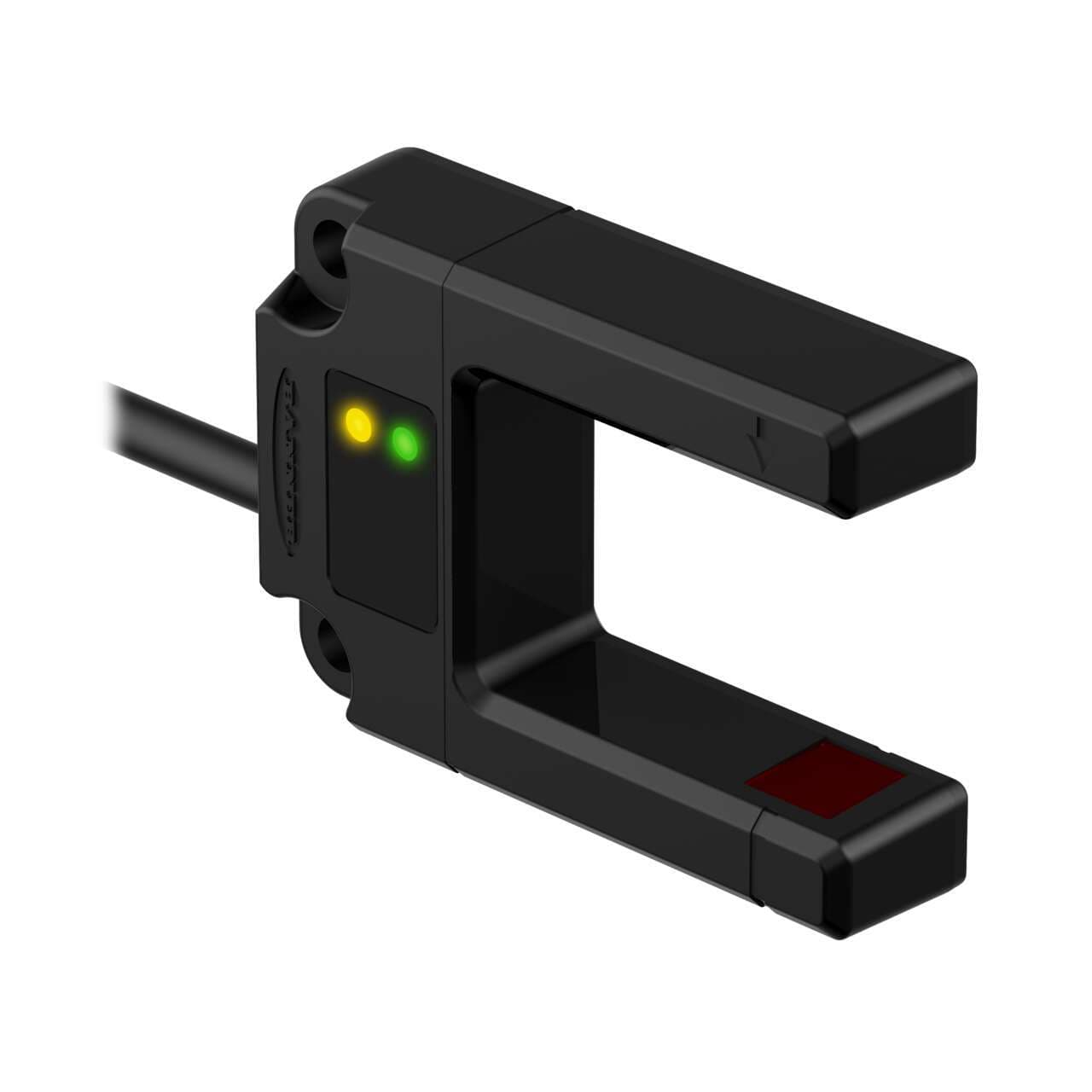

SLO30VB6V Banner Retroreflective Sensors

Product Details

• Weight
  163.29312 g
• Country Of Origin
  CN
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Sensing distance
  30mm
• Sub-range name
  SLO series
• Shape
  Slot
• Order code / Manufacturer SKU
  68697
• Functions
  Photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state)
• Operating mode
  Light-ON Dark-ON
• Main function
  Sensor (Photo-electric)
• Light Color
  Infrared (IR)
• Wavelength
  890 nm
• Ambient air temperature for operation
  -40...+70 °C
• Response time
  1ms / 0.001 s
• Compliant with standard(s)
  cULus Listed CE
• Net Width (mm)
  (passageway) 30.2 mm52 mm
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Degree of protection
  IP67 NEMA 6
Material
thermoplastic housing Acrylic lns.
Net Depth (mm)
18.8 mm
Net Height (mm)
72 mm
Max Sensing Range (mm)
30
Power
DC
Adjustments
N/A
Indicator
LEDs
Primary Housing Material
Thermoplastic
Outputs
Bipolar (NPN & PNP)
Operation
Light/Dark Operate
Quick Disconnect Type
No QD
Slot Overall Depth (mm)
52
Special Feature: Remote Teach
No
Minimum Object Detection [mm]
2
Slot Depth/Array Length (mm)
45
Sensing Mode (Detailed)
Emitter/Receiver Pair
Number of Pins
5
Min Op. Temperature (°C)
-40
Connection
Cable
Housing Style
Slot
Minimum Object Detection (mm)
2
Output response time (ms)
1
NEMA Rating
NEMA 6
Cable Length (m)
2
Repeatability (µs)
250
Power Supply/Supply Voltage
10-30 V dc
IP Rating
IP67
Lens Material
Acrylic
Max Op. Relative Humidity (%)
90% @ 50°C
Max Op. Temperature (°C)
70
