SLO30VB6YQPMA13LODO Banner Retroreflective Sensors

SLO30VB6YQPMA13LODO on Powermatic Associates
Banner

Part#:SLO30VB6YQPMA13LODO

Alt. Part#:74314

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLO30 VB6YQPMA13LODO 700 MA 5 PIN 6 in PUR MALE M12

Product Details

  • Weight
    81.64656 g
  • Country Of Origin
    CN
  • Main function
    Sensor (Photo-electric)
  • Sub-range name
    SLO series
  • Connection type
    Pre-wired with 6" / 150mm PUR pigtail terminated with 5-pin Euro-style M12 connector
  • Response time
    0.3ms / 0.0003 s
  • Compliant with standard(s)
    cULus Listed CE
  • Functions
    Photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state)
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6
  • Material
    thermoplastic housing Acrylic lns. PUR pigtail
  • Net Width (mm)
    (passageway) 30.2 mm52 mm
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Slot
  • Net Height (mm)
    72 mm
  • Wavelength
    890 nm
  • Ambient air temperature for operation
    -40...+70 °C
  • Order code / Manufacturer SKU
    74314
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Primary brand
    Banner Engineering
  • Sensing distance
    30mm
  • Light Color
    Infrared (IR)
  • Net Depth (mm)
    18.8 mm
  • Primary Housing Material
    Thermoplastic
  • Power Supply/Supply Voltage
    10-30 V dc
  • Lens Material
    Acrylic
  • Minimum Object Detection [mm]
    2
  • Slot Depth/Array Length (mm)
    45
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Power
    DC
  • Adjustments
    N/A
  • IP Rating
    IP67
  • Housing Style
    Slot
  • Indicator
    LEDs
  • Quick Disconnect Type
    M12 (Euro)
  • Max Sensing Range (mm)
    30
  • Operation
    Light/Dark Operate
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    0.3
  • Slot Overall Depth (mm)
    72
  • Cable Length (m)
    0.2
  • NEMA Rating
    NEMA 6
  • Repeatability (µs)
    75
  • Number of Pins
    5
  • Min Op. Temperature (°C)
    -40
  • Outputs
    Bipolar (NPN & PNP)
  • Connection
    Pigtail PUR QD
  • Minimum Object Detection (mm)
    2
  • Max Op. Temperature (°C)
    70

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLO30VB6YQPMA13LODO on Powermatic Associates is $154.00. Order now.

About the product

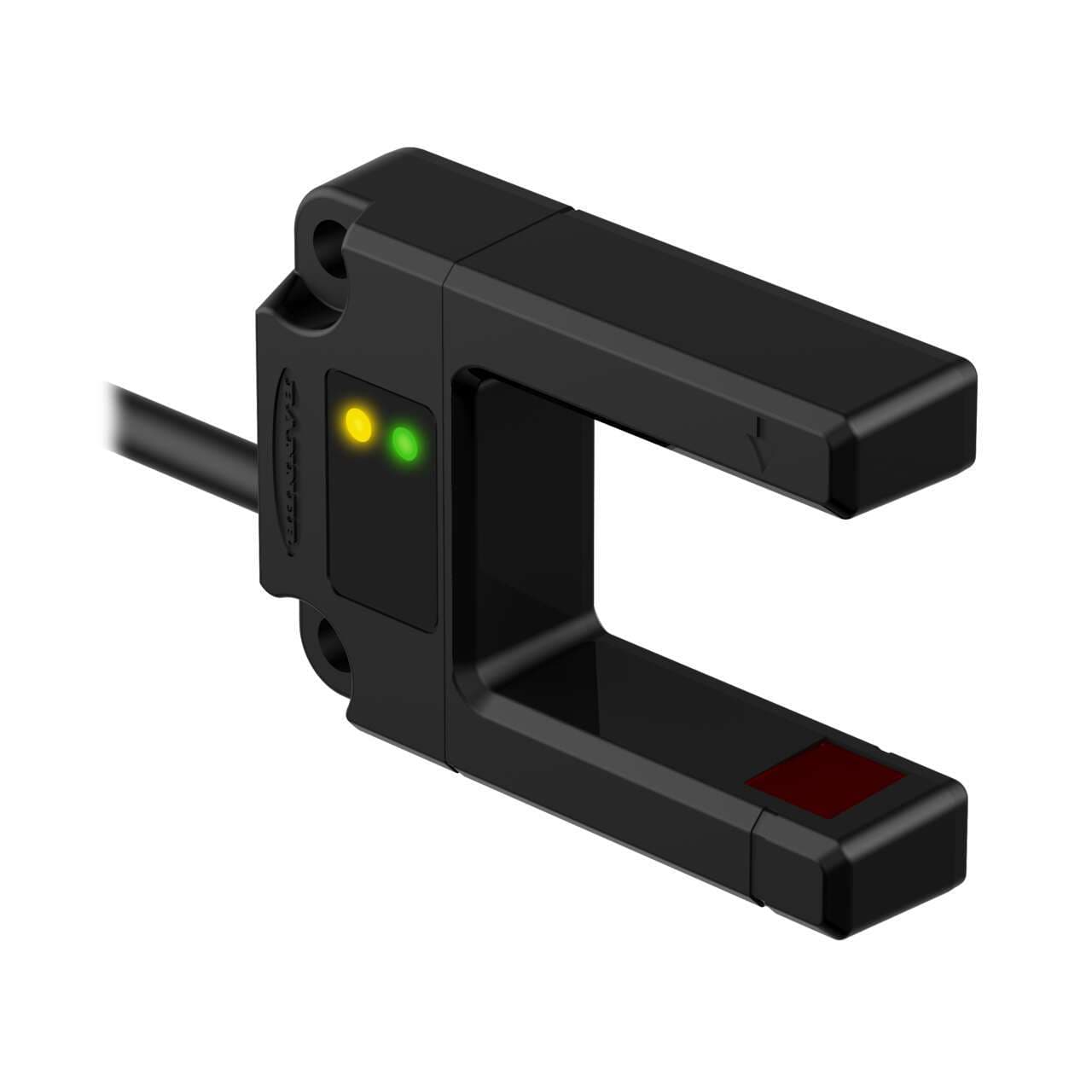

Banner Engineering SLO30VB6YQPMA13LODO is a photo-electric slot / optical fork sensor within the SLO series, featuring a thermoplastic housing and an acrylic lens. It comes pre-wired with a 6" / 150mm polyurethane (PUR) cable that terminates with a 5-pin Euro-style M12 connector. This sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It is designed with a slot (U-shaped) shape, having a passageway width of 30.2 mm and an overall width of 52 mm, a height of 72 mm, and a depth of 19 mm. The sensor offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environments. It features one digital output (PNP/NPN transistor), a sensing distance of 30mm, and utilizes infrared (IR) light with a wavelength of 890 nm. The response time is notably quick at 0.3ms / 0.0003 s, and it supports both Light-ON and Dark-ON operating modes.
