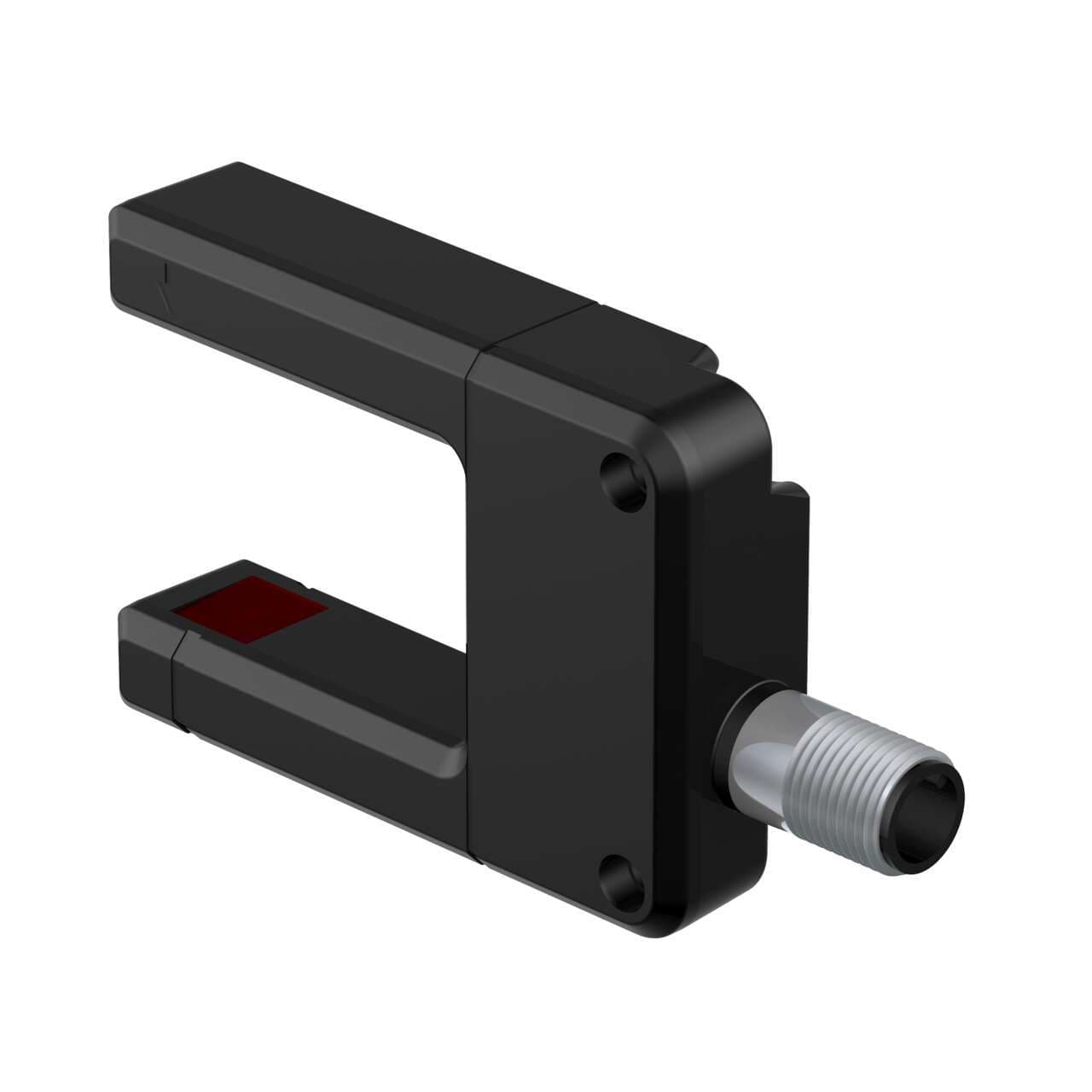

SLO30VB6VQ Banner Retroreflective Sensors

SLO30VB6VQ on Powermatic Associates
Banner

Part#:SLO30VB6VQ

Alt. Part#:20242

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLO30 VB6 VQ VISIBLE RED OEM SLOT SENSOR, 5-pin M12 Integral QD

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    CN
  • IP Rating
    IP67
  • NEMA Rating
    NEMA 6
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Minimum Object Detection [mm]
    2
  • Max Op. Temperature (°C)
    70
  • Min Op. Temperature (°C)
    -40
  • Indicator
    LEDs
  • Operation
    Light/Dark Operate
  • Special Feature: Remote Teach
    No
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Outputs
    Bipolar (NPN & PNP)
  • Number of Pins
    5
  • Slot Overall Depth (mm)
    72
  • Output response time (ms)
    1
  • Power Supply/Supply Voltage
    10-30 V dc
  • Repeatability (µs)
    250
  • Minimum Object Detection (mm)
    2
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Max Sensing Range (mm)
    30
  • Slot Depth/Array Length (mm)
    45
  • Housing Style
    Slot
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Power
    DC
  • Primary brand
    Banner Engineering
  • Sensing distance
    30mm
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Operating mode
    Light-ON Dark-ON
  • Net Depth (mm)
    18.8 mm
  • Sub-range name
    SLO series
  • Light Color
    Infrared (IR)
  • Degree of protection
    IP67 NEMA 6
  • Order code / Manufacturer SKU
    20242
  • Main function
    Sensor (Photo-electric)
  • Functions
    Photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state)
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Response time
    1ms / 0.001 s
  • Ambient air temperature for operation
    -40...+70 °C
  • Wavelength
    890 nm
  • Compliant with standard(s)
    cULus Listed CE
  • Net Height (mm)
    72 mm
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Slot
  • Material
    thermoplastic housing Acrylic lns.
  • Net Width (mm)
    (passageway) 30.2 mm52 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLO30VB6VQ on Powermatic Associates is $129.00. Order now.

About the product

Banner Engineering SLO30VB6VQ is a photo-electric slot / optical fork sensor from the SLO series, designed with a thermoplastic housing and an acrylic lens. This sensor is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The SLO30VB6VQ offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environmental conditions. Its slot-shaped design has a passageway width of 30.2 mm and a net width of 52 mm, with a net height of 72 mm and a net depth of 19 mm. The sensor features a single digital output (PNP/NPN transistor), a sensing distance of 30mm, and emits visible red light. It has a rapid response time of 1ms / 0.001 s and supports both Light-ON and Dark-ON operating modes.
