SLPCR25-1250P8 Banner Electronic Components


Part#:SLPCR25-1250P8
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

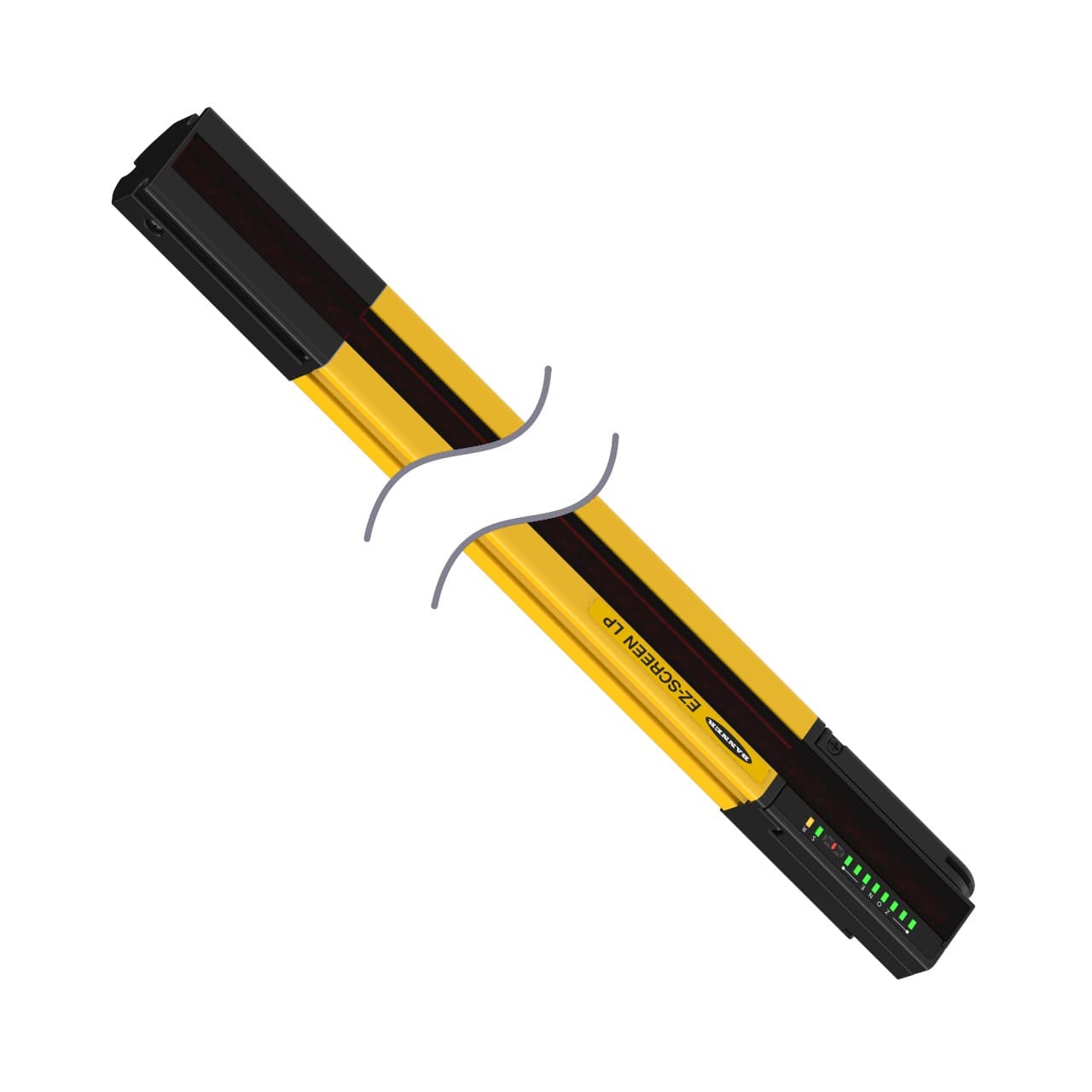

SLPCR25-1250P8 EZ-SCREEN Low Profile Cascade Receiver, Resolution: 25 mm; Response (Tr): 18.5 ms; Beams: 63, Range: 0.1 to 7 m (4in. to 23ft.); Height: 1250 mm (49.2in.), Connection: 300 mm pigtail; 8-pin M12 QD
Product Details
- Connector Type M12 Pigtail (Yellow)
- IP Rating IP65
- Trip/Latch Output Selectable
- Short Protection Yes
- low-profile Yes
- Housing Finish Yellow Polyester
- Auxiliary Output Yes
- Shock 10g at 16ms (6000 cycles)
- Primary Housing Material Aluminum
- Operating Distance (m) 0.1 - 7
- PL Rating Ple
- Reduced Resolution Yes
- Dimensions WxD (mm) 28 x 26
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code Selectable
- Supply Current 150 mA max.
- External Monitoring Device 1 or 2 Channel
- Operating Voltage 24 V dc +/- 15%
- Resolution (mm) 25
- Housing Material Aluminum; Zinc; Acrylic
- Safety Level Type 4
- Number of Pins (Receiver/Emitter) 8
- Response Time 18.5
- OSSD Rating 24 V dc at 0.5 A each
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Electrical Safety Class III
- Vibration 10-55 Hz at 0.35 mm
- Overall Length (mm) 1250
- Fixed Blanking Yes
- SIL Rating SIL3; CL3
- Defined Area Height (mm) 1250
- Recovery Time 25-152 / 81-495
- System Type Receiver
- Test Input No
- Feature: Integral Muting No
- Feature: End-to-End Sensing Yes
- Feature: Cascade Yes
- Fault Output Yes
- Feature: ESD Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
