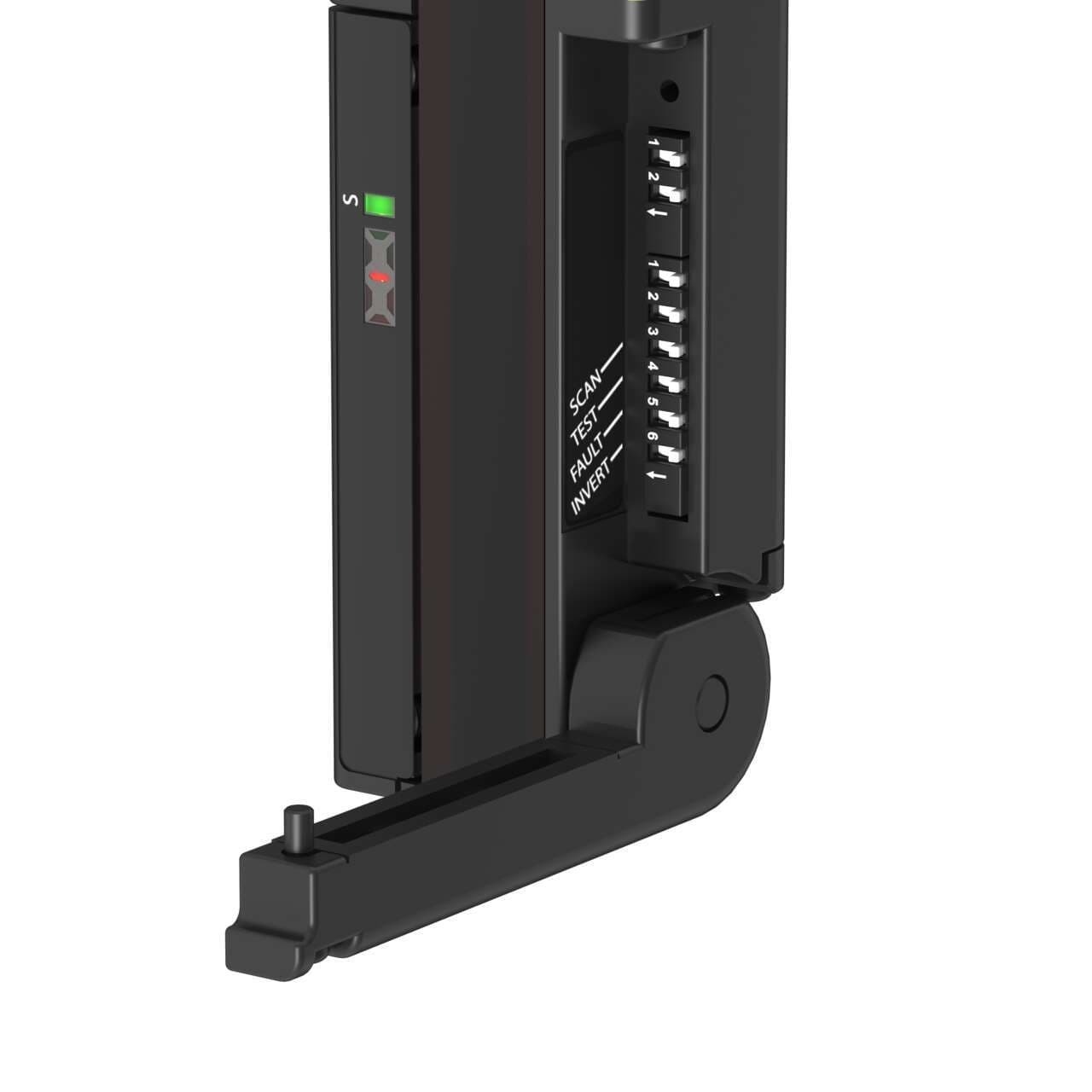

SLPCP14-830P88 Banner Safety Light Curtains

SLPCP14-830P88 on Powermatic Associates
Banner
  • SLPCP14-830P88
  • SLPCP14-830P88

Part#:SLPCP14-830P88

Alt. Part#:83751

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

SLPCP14-830P88 EZ-SCREEN Low Profile Cascade Pair; Resolution: 14 mm; Response (Tr): 22.5 ms; Beams: 83; Range: 0.1-7 m (4 in - 23 ft); Height: 830 mm (32.7 in); 300 mm (1 ft) 8-pin M12 Pigtail QD

Product Details

  • Weight
    3560.6972 g
  • Country Of Origin
    US
  • Safety Level
    Type 4
  • Electrical Safety Class
    III
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    Yes
  • Feature: End-to-End Sensing
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • Number of Pins (Receiver/Emitter)
    8
  • External Monitoring Device
    1 or 2 Channel
  • Reduced Resolution
    Yes
  • OSSD Rating
    24 V dc at 0.5 A each
  • Operating Distance (m)
    0.1 - 7
  • Response Time
    22.5
  • Defined Area Height (mm)
    830
  • Supply Current
    210 mA max.
  • System Type
    Emitter/Receiver Pair
  • Feature: Cascade
    Yes
  • Scan Code
    Selectable
  • Test Input
    Yes
  • Connector Type
    M12 Pigtail (Yellow)
  • PL Rating
    Ple
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Overall Length (mm)
    830
  • Shock
    10g at 16ms (6000 cycles)
  • Trip/Latch Output
    Selectable
  • Dimensions WxD (mm)
    28 x 26
  • Recovery Time
    33-220 / 109-800
  • Short Protection
    Yes
  • Feature: Integral Muting
    No
  • low-profile
    Yes
  • Operating Voltage
    24 V dc +/- 15%
  • SIL Rating
    SIL3; CL3
  • Auxiliary Output
    Yes
  • Primary Housing Material
    Aluminum
  • IP Rating
    IP65
  • Resolution (mm)
    14
  • Fault Output
    Yes
  • Feature: ESD Safe
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPCP14-830P88 on Powermatic Associates is $3,583.00. Order now.

About the product

Banner Engineering SLPCP14-830P88 is a safety light curtain from the LP Low-Profile series designed for finger detection with a resolution of 14mm. This cascadable unit features an emitter and receiver pair housed in aluminum with acrylic lens and zinc end caps, ensuring durability. It comes pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector for easy installation. The protective height of the device is 830mm, and it operates on a 24Vdc supply voltage. Suitable for use in environments with ambient air temperatures ranging from 0 to +55°C, it offers a degree of protection rated at IP65. The SLPCP14-830P88 has a compact design with dimensions of 28mm in width, 829mm in height, and 26mm in depth. It features a sensing distance from 10cm to 7m and utilizes infrared light with a wavelength of 850 nm for detection. The device is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for external device monitoring (EDM), and one digital input (10Vdc-30Vdc) for reset functions. Its response time is 22.5ms, and the yellow housing aids in visibility and identification within industrial settings.

SLPCP14-830P88 Related Documents

140044.pdf
