SLPP14-1110P88 Banner Safety Light Curtains
Part#:SLPP14-1110P88
Alt. Part#:83730
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPP14-1110P88 EZ-SCREEN Low Profile Pair; Resolution: 14 mm; Response (Tr): 28.5 ms; Beams: 111; Range: 0.1-7 m (4 in - 23 ft); Height: 1110 mm (43.7 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
Product Details
- Weight 3311.2216 g
- Country Of Origin US
- Dimensions WxD (mm) 28 x 26
- Safety Level Type 4
- Connector Type M12 Pigtail (Yellow)
- External Monitoring Device 1 or 2 Channel
- Primary Housing Material Aluminum
- Overall Length (mm) 1110
- IP Rating IP65
- Operating Distance (m) 0.1 - 7
- Number of Pins (Receiver/Emitter) 8
- Defined Area Height (mm) 1110
- Housing Finish Yellow Polyester
- low-profile Yes
- Fixed Blanking Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Voltage 24 V dc +/- 15%
- Resolution (mm) 14
- Recovery Time 33-220 / 109-800
- PL Rating Ple
- OSSD Rating 24 V dc at 0.5 A each
- Short Protection Yes
- Feature: Integral Muting No
- Operating Temperature 0 to +55 deg. C; RH 95%
- Vibration 10-55 Hz at 0.35 mm
- Reduced Resolution Yes
- Auxiliary Output Yes
- Feature: ESD Safe No
- Scan Code Selectable
- Test Input Yes
- SIL Rating SIL3; CL3
- Housing Material Aluminum; Zinc; Acrylic
- System Type Emitter/Receiver Pair
- Trip/Latch Output Selectable
- Response Time 28.5
- Feature: End-to-End Sensing Yes
- Supply Current 210 mA max.
- Electrical Safety Class III
- Fault Output Yes
- Shock 10g at 16ms (6000 cycles)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPP14-1110P88 on Powermatic Associates is $4,242.00. Order now.
About the product

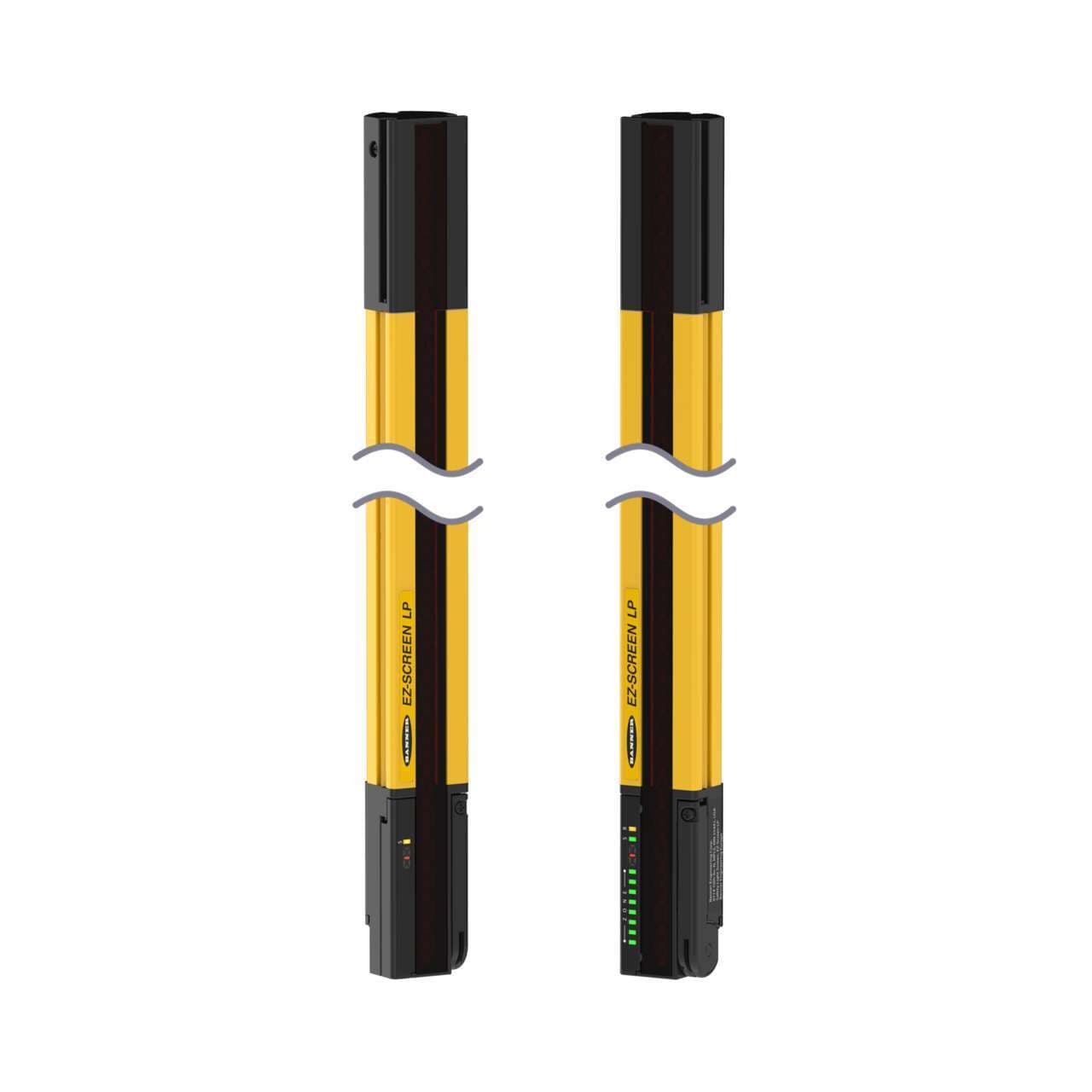

Banner Engineering SLPP14-1110P88 is a safety light curtain from the LP Low-Profile series designed for finger detection with a resolution of 14mm. This unit comprises an emitter and receiver pair housed in aluminum with acrylic lenses and zinc end caps, featuring a yellow housing. It is pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector. The protective height is 1110mm, and it operates on a 24Vdc supply voltage. The SLPP14-1110P88 can function within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. Its dimensions are 28mm in width, 1108mm in height, and 26mm in depth. The safety light curtain has a sensing distance ranging from 10cm to 7m and utilizes infrared light with a wavelength of 850 nm. It features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for EDM, and one digital input (10Vdc-30Vdc) for reset functions. The response time is 28.5ms.
