SLPP14-690NP88 Banner Safety Light Curtains
Part#:SLPP14-690NP88
Alt. Part#:84163
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPP14-690NP88 EZS LP PAIR14 mm x 690 mm PIGTAIL
Product Details
- Weight 3364.745456 g
- Country Of Origin US
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Voltage 24 V dc +/- 15%
- Scan Code Selectable
- Feature: End-to-End Sensing Yes
- Response Time 19.5
- Test Input Yes
- Dimensions WxD (mm) 28 x 26
- IP Rating IP65
- Vibration 10-55 Hz at 0.35 mm
- Supply Current 210 mA max.
- low-profile Yes
- Housing Finish Nickel Plated
- Reduced Resolution Yes
- Fault Output Yes
- Safety Level Type 4
- Fixed Blanking Yes
- Resolution (mm) 14
- Auxiliary Output Yes
- Primary Housing Material Aluminum
- Number of Pins (Receiver/Emitter) 8
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- Connector Type M12 Pigtail (Yellow)
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- Feature: Integral Muting No
- Defined Area Height (mm) 690
- Operating Distance (m) 0.1 - 7
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- External Monitoring Device 1 or 2 Channel
- PL Rating Ple
- System Type Emitter/Receiver Pair
- Feature: ESD Safe Yes
- Overall Length (mm) 690
- Recovery Time 33-220 / 109-800
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPP14-690NP88 on Powermatic Associates is $3,284.00. Order now.
About the product

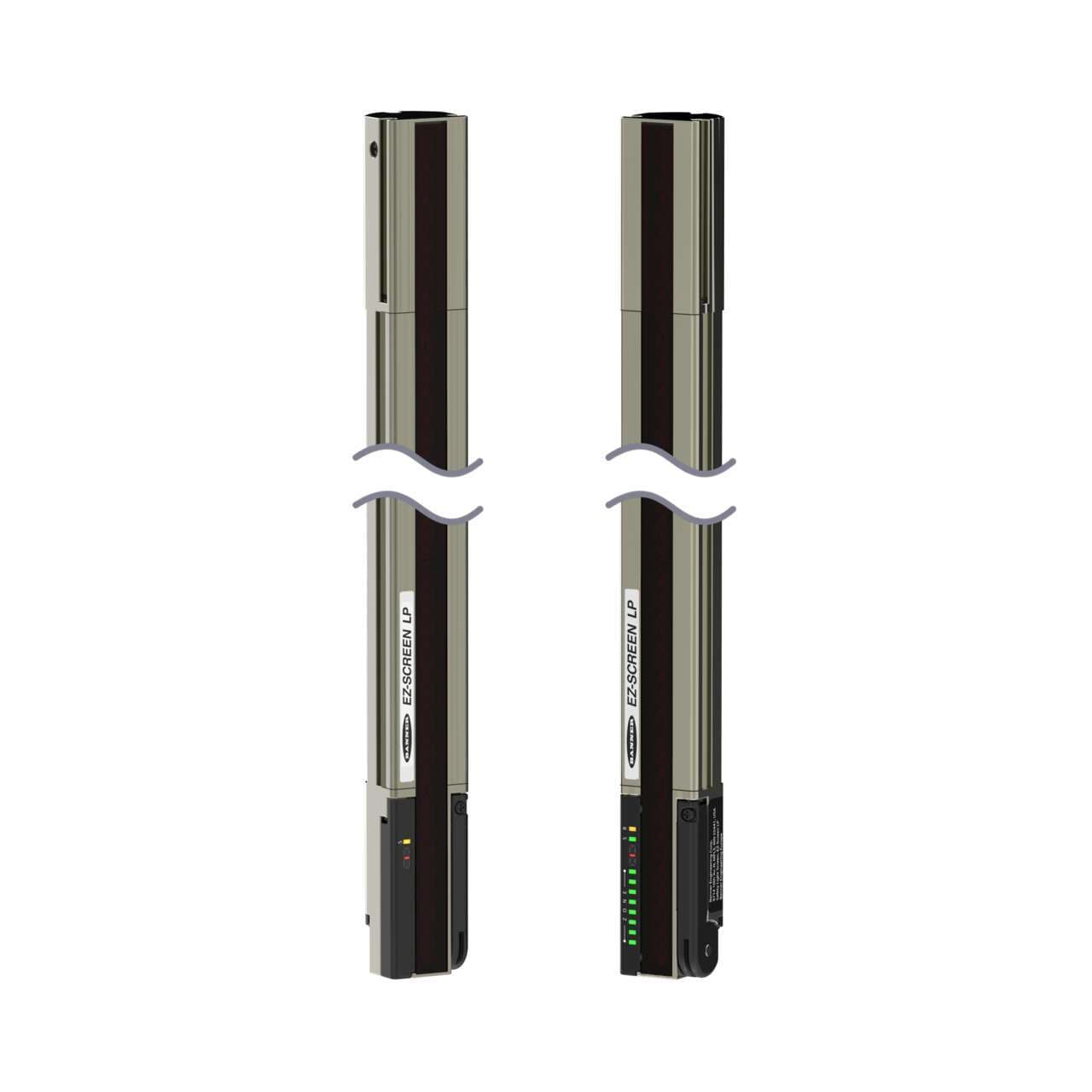

Banner Engineering SLPP14-690NP88 is a safety light curtain from the LP Low-Profile series designed with an ESD-safe construction. It features a nickel-plated aluminum housing, acrylic lens, and zinc end caps. This part is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. It offers a protective height of 690mm and comes in a silver housing. The SLPP14-690NP88 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection. The dimensions include a net width of 28mm, a net height of 689mm, and a net depth of 26mm. The safety light curtain has a 14mm beam spacing/pitch and provides sensing distances from 10cm to 7m. It emits infrared (IR) light with a wavelength of 850 nm and has a resolution of 14mm for finger detection. The device includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; 250mA; PNP transistor) for fault indication, 1 x digital input (10Vdc-30Vdc; 30mA) for EDM input, and 1 x digital input (10Vdc-30Vdc) for reset. Its response time is 19.5ms / 0.0195 s.
