SLPP14-970NP88 Banner Safety Light Curtains

SLPP14-970NP88 on Powermatic Associates
Banner
  • SLPP14-970NP88
  • SLPP14-970NP88

Part#:SLPP14-970NP88

Alt. Part#:84165

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

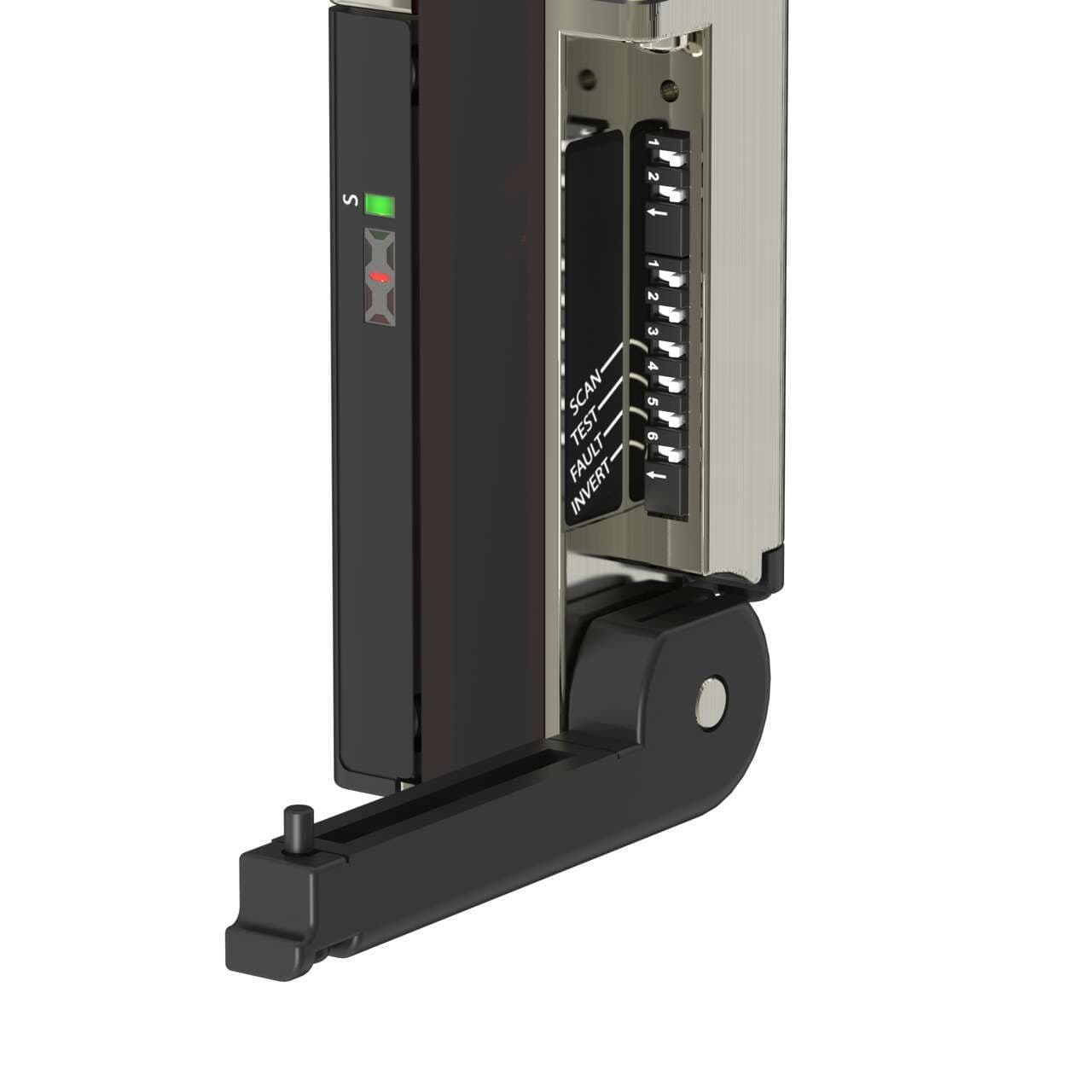

SLPP14-970NP88 EZS LP PAIR14 mm x 970 mm PIGTAIL

Product Details

  • Weight
    3084.4256 g
  • Country Of Origin
    US
  • Supply Current
    210 mA max.
  • Safety Level
    Type 4
  • Dimensions WxD (mm)
    28 x 26
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Fixed Blanking
    Yes
  • Reduced Resolution
    Yes
  • Auxiliary Output
    Yes
  • Overall Length (mm)
    970
  • IP Rating
    IP65
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Response Time
    25.5
  • System Type
    Emitter/Receiver Pair
  • OSSD Rating
    24 V dc at 0.5 A each
  • Short Protection
    Yes
  • Test Input
    Yes
  • Feature: ESD Safe
    Yes
  • low-profile
    Yes
  • Connector Type
    M12 Pigtail (Yellow)
  • Defined Area Height (mm)
    970
  • External Monitoring Device
    1 or 2 Channel
  • Housing Finish
    Nickel Plated
  • Primary Housing Material
    Aluminum
  • Number of Pins (Receiver/Emitter)
    8
  • Operating Distance (m)
    0.1 - 7
  • Operating Voltage
    24 V dc +/- 15%
  • SIL Rating
    SIL3; CL3
  • Recovery Time
    33-220 / 109-800
  • Resolution (mm)
    14
  • Electrical Safety Class
    III
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    Selectable
  • Trip/Latch Output
    Selectable
  • Fault Output
    Yes
  • Feature: End-to-End Sensing
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Feature: Integral Muting
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPP14-970NP88 on Powermatic Associates is $4,124.00. Order now.


About the product

Banner Engineering SLPP14-970NP88 is a safety light curtain from the LP Low-Profile series designed with an ESD-safe construction. This part features a nickel-plated aluminum housing, acrylic lens, and zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The SLPP14-970NP88 offers a protective height of 970mm and comes in a silver housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. This safety light curtain is IP65 rated, indicating protection against dust ingress and low-pressure water jets from any direction. The net dimensions are 28mm in width, 969mm in height, and 26mm in depth. It features a 14mm beam spacing/pitch for finger detection, with a sensing distance ranging from 10cm to 7m. The light emitted is infrared (IR) with a wavelength of 850 nm. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for external device monitoring (EDM), and one digital input (10Vdc-30Vdc) for reset functions. The response time is 25.5ms.
