SLPP25-1110AP88 Banner Safety Light Curtains
Part#:SLPP25-1110AP88
Alt. Part#:83962
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPP25-1110 AP88 EZ-SCREEN Low Profile PAIR; Resolution: 25 mm; Response (Tr): 17 ms; Beams: 56; Range: 0.1-7 m (4 in - 23 ft); Height: 1110 mm (43.7 in); 300 mm (1 ft) 8-pin M12 Pigtail QD; Housing: Anodized Aluminum
Product Details
- Weight 3311.2216 g
- Country Of Origin US
- Dimensions WxD (mm) 28 x 26
- Operating Distance (m) 0.1 - 7
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8
- Feature: ESD Safe No
- Defined Area Height (mm) 1110
- PL Rating Ple
- Scan Code Selectable
- Trip/Latch Output Selectable
- low-profile Yes
- Fixed Blanking Yes
- Reduced Resolution Yes
- Auxiliary Output Yes
- Shock 10g at 16ms (6000 cycles)
- Supply Current 210 mA max.
- Overall Length (mm) 1110
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- Feature: Integral Muting No
- Primary Housing Material Aluminum
- Recovery Time 33-220 / 109-800
- Resolution (mm) 25
- Housing Material Aluminum; Zinc; Acrylic
- IP Rating IP65
- External Monitoring Device 1 or 2 Channel
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Response Time 28.5
- Fault Output Yes
- Connector Type M12 Pigtail (Yellow)
- Operating Voltage 24 V dc +/- 15%
- Safety Level Type 4
- SIL Rating SIL3; CL3
- Housing Finish Clear Anodized
- System Type Emitter/Receiver Pair
- Test Input Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPP25-1110AP88 on Powermatic Associates is $3,474.00. Order now.
About the product

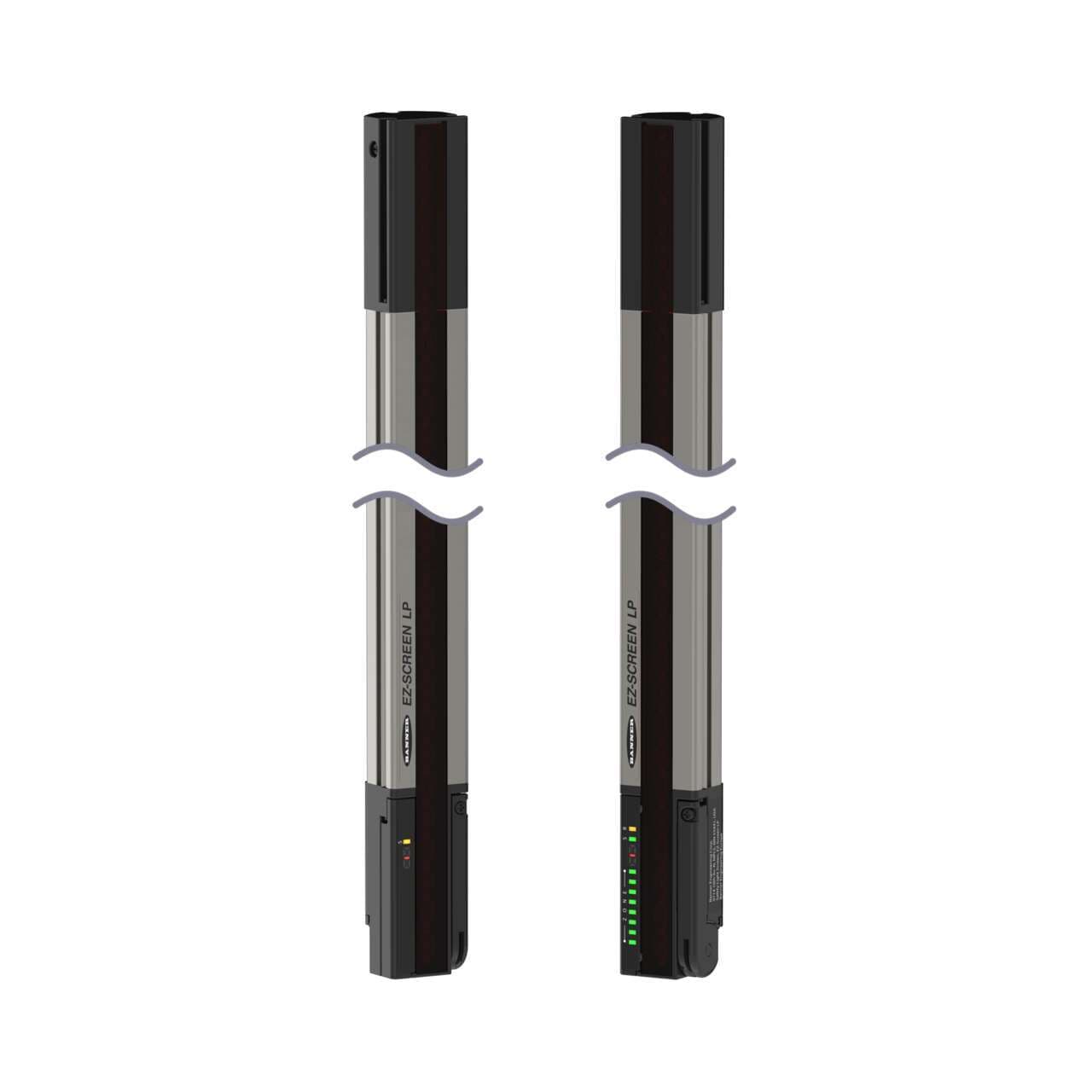

Banner Engineering SLPP25-1110AP88 is a safety light curtain from the LP Low-Profile series designed for hand detection with a resolution of 25mm. This unit comprises an emitter and receiver pair housed in clear anodized aluminum with acrylic lens and zinc end caps. It features a pre-wired 300mm pigtail terminated with an 8-pin Euro-style M12 connector for connectivity. The protective height of the device is 1110mm, and it operates on a 24Vdc supply voltage. Suitable for use in ambient air temperatures ranging from 0 to +55°C, it offers a degree of protection rated at IP65. The SLPP25-1110AP88 has a net width of 28mm, a height of 1108mm, and a depth of 26mm. It is designed for a sensing distance of 10cm to 7m and emits infrared light with a wavelength of 850nm. The device includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for external device monitoring (EDM), and one digital input (10Vdc-30Vdc) for reset functions. Its response time is 17ms.
