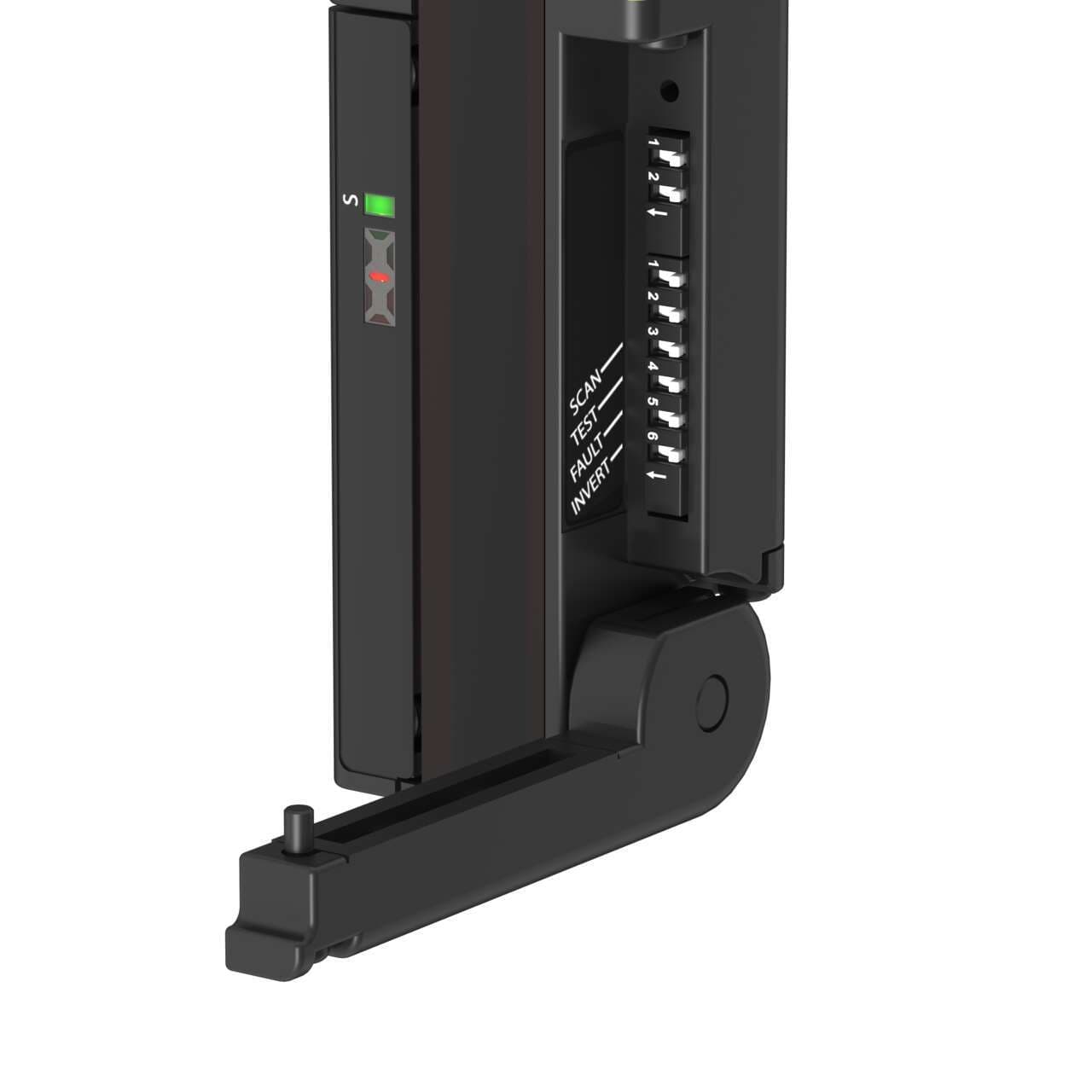

SLPP25-690 Banner Safety Light Curtains
Part#:SLPP25-690
Alt. Part#:83785
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPP25-690 EZ-SCREEN Low Profile Pair; Resolution: 25 mm; Response (Tr): 12.5 ms; Beams: 35; Range: 0.1-7 m (4 in - 23 ft); Height: 690 mm (27.2 in); Integral RD
Product Details
- Weight 3303.964128 g
- Country Of Origin US
- low-profile Yes
- Safety Level Type 4
- IP Rating IP65
- Response Time 19.5
- Fault Output Yes
- Operating Voltage 24 V dc +/- 15%
- Electrical Safety Class III
- Supply Current 210 mA max.
- Overall Length (mm) 690
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code Selectable
- Test Input Yes
- Connector Type Removable Disconnect
- Operating Distance (m) 0.1 - 7
- System Type Emitter/Receiver Pair
- Feature: ESD Safe No
- Defined Area Height (mm) 690
- PL Rating Ple
- Auxiliary Output Yes
- Feature: Integral Muting No
- Resolution (mm) 25
- Short Protection Yes
- Feature: End-to-End Sensing Yes
- Dimensions WxD (mm) 28 x 26
- Housing Finish Yellow Polyester
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; Zinc; Acrylic
- External Monitoring Device 1 or 2 Channel
- Recovery Time 33-220 / 109-800
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
- Primary Housing Material Aluminum
- Fixed Blanking Yes
- Reduced Resolution Yes
- Vibration 10-55 Hz at 0.35 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPP25-690 on Powermatic Associates is $2,355.00. Order now.
About the product
Banner Engineering SLPP25-690 is a safety light curtain from the LP Low-Profile series designed for hand detection with a resolution of 25mm. It features an emitter and receiver pair housed in yellow aluminum with acrylic lens and zinc end caps. This unit has a protective height of 690mm and operates with a 24Vdc supply voltage. It is suitable for ambient air temperatures ranging from 0 to +55°C and offers a degree of protection rated at IP65. The SLPP25-690 has dimensions of 28mm in width, 689mm in height, and 26mm in depth, with a sensing distance between 10cm and 7m. It emits infrared light at a wavelength of 850 nm and has a response time of 12.5ms. For connectivity, it includes an Integral Removable Disconnect (RD) and features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for EDM, and one digital input (10Vdc-30Vdc) for reset functions.
