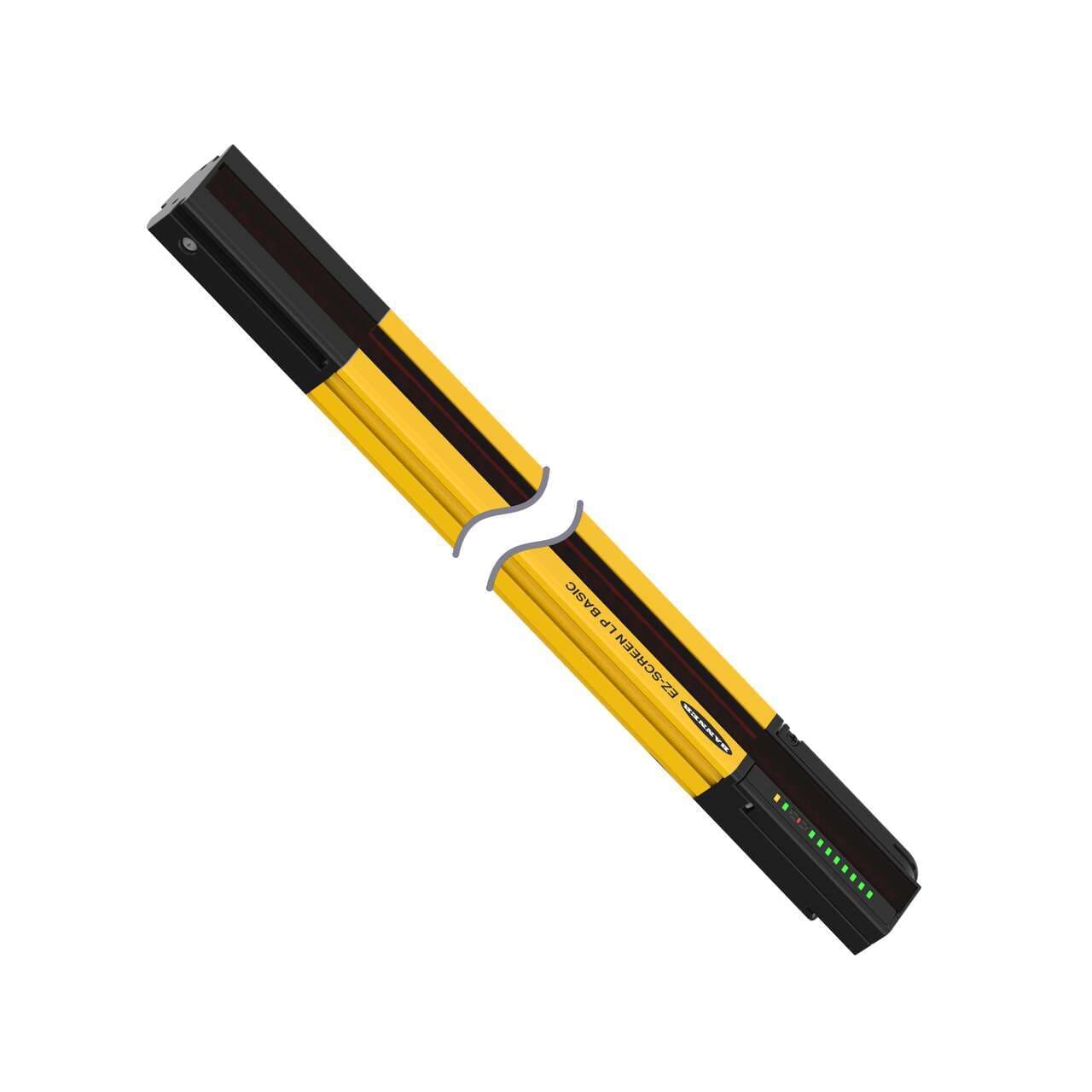

SLPVAR14-410 Banner Safety Light Curtains
Part#:SLPVAR14-410
Alt. Part#:805345
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Low Profile BASIC, Receiver; Resolution: 14 mm Response (Tr): 13.5 ms; Beams: 41; Range: 0.1-4 m (4 in - 13.1 ft); Height 410 mm (16.1 in); Removable Disconnect (RD) Cordsets & Mounting Hardware Ordered Separately
Product Details
- Weight 1189.318224 g
- Country Of Origin US
- Overall Length (mm) 410
- Housing Finish Yellow Polyester
- Electrical Safety Class III
- Supply Current 150 mA max.
- External Monitoring Device No
- Primary Housing Material Aluminum
- Connector Type Removable Disconnect
- Operating Voltage 24 V dc +/- 15%
- Resolution (mm) 14
- Auxiliary Output No
- Test Input No
- Dimensions WxD (mm) 28 x 26
- Operating Distance (m) 0.1 - 4
- Short Protection Yes
- Feature: ESD Safe No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- IP Rating IP54
- Shock 10g at 16ms (6000 cycles)
- Defined Area Height (mm) 410
- Operating Temperature 0 to +55 deg. C; RH 95%
- System Type Receiver
- Fixed Blanking No
- PL Rating Ple
- Vibration 10-55 Hz at 0.35 mm
- Housing Material Aluminum; Zinc; Acrylic
- Safety Level Type 4
- Reduced Resolution No
- Scan Code None
- OSSD Rating 24 V dc at 0.5 A each
- Recovery Time 33-220 / 109-800
- SIL Rating SIL3; CL3
- Trip/Latch Output N/A
- Feature: Integral Muting No
- Fault Output No
- Feature: End-to-End Sensing Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPVAR14-410 on Powermatic Associates is $765.00. Order now.
About the product
EZ-SCREEN Low Profile BASIC, Receiver, Resolution: 14 mm Response (Tr): 13.5 ms; Beams: 41, Range: 0.1 to 4 m (4 in to 13.1 ft); Height 410 mm (16.1 in), Connection: Removable Disconnect (RD) Cordsets & Mounting Hardware Ordered Separately
