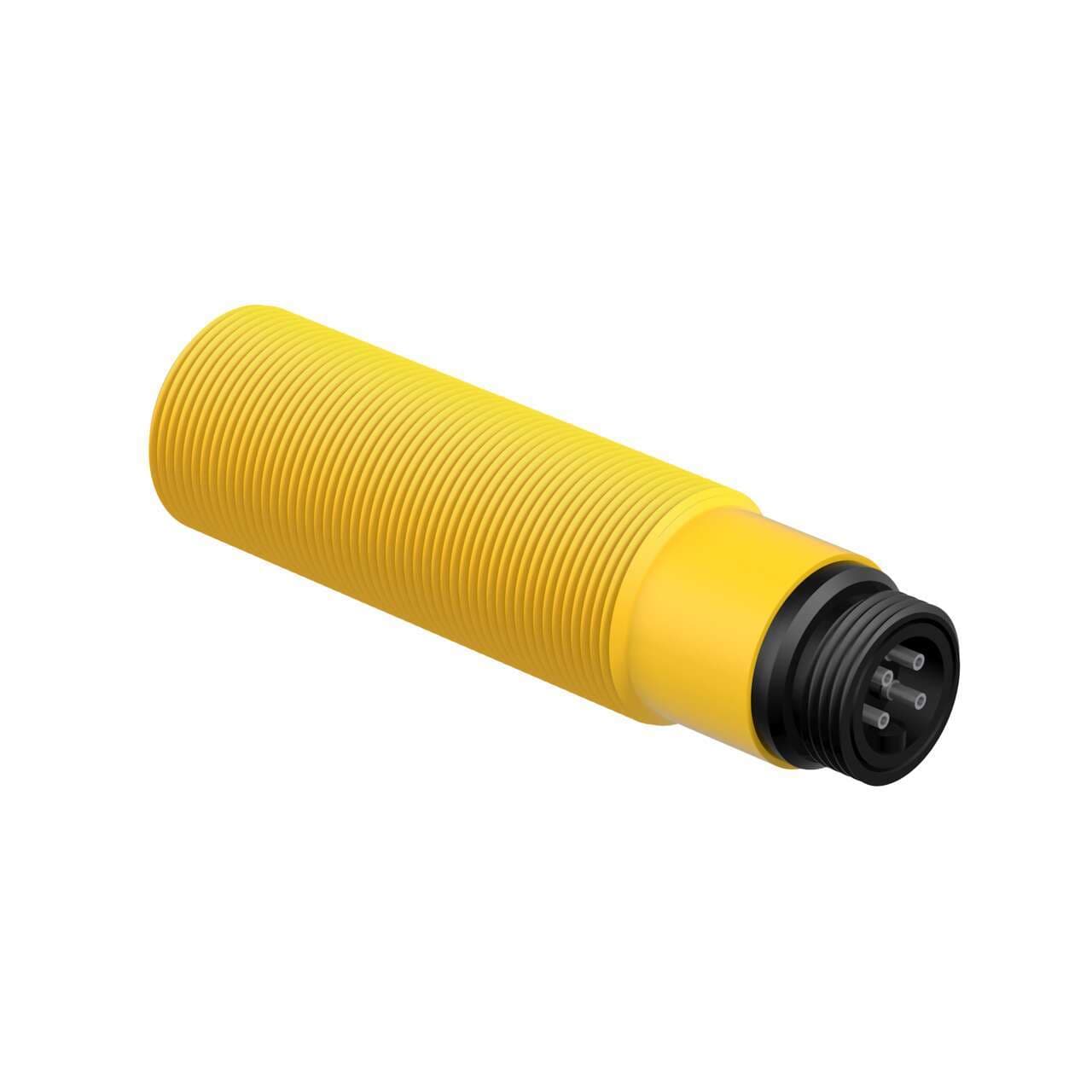

SM2A30PRLNCQDB Banner Proximity Sensors
Part#:SM2A30PRLNCQDB
Alt. Part#:27387
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency B PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 3-pin Mini Integral QD
Product Details
- Weight 164.200304 g
- Country Of Origin MX
- Primary Housing Material Thermoplastic
- Sensing Mode (Detailed) Receiver
- Number of Pins 3
- Opposed Mode Emitter/Receiver Receiver
- Sensing Mode (General) Opposed
- Power Supply/Supply Voltage 24-240 V ac
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Housing Style Barrel
- Connection Integral QD
- Delay at Power-up (ms) N/A
- Indicator LEDs
- IO Link No
- Input/Output Solid-State AC Switch
- Quick Disconnect Type 7/8 in. (Mini)
- Max Sensing Distance (mm) 150000
- Operation Dark Operate
- Feature: Encapsulated Yes
- Sensing Beam Infrared LED
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Barrel Diameter (mm) 30
- Power AC
- Min Op. Temp. (°C) -40
- Output response time (ms) 10
- NEMA Rating NEMA 6P
- Feature: Audible No
- Outputs Solid-State AC Switch
- Special Feature: Intrinsically Safe No
- Feature: Timing (Hold/Delay) No
- Special Feature: Water Detection No
- Repeatability (µs) 1500
- Feature: Hazardous Area No
- Lens Material Acrylic
- DeviceNet No
- Adjustments N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A30PRLNCQDB on Powermatic Associates is $288.00. Order now.
About the product
Banner Engineering SM2A30PRLNCQDB is a photo-electric sensor from the SM30 series designed with a through-beam system and opposed mode "B" modulation frequency, suitable for washdown applications. This sensor, functioning as a receiver alone, is housed in a thermoplastic material and comes pre-equipped with a 3-pin 7/8" mini connector. It operates on a supply voltage range of 24Vac-240Vac, with nominal voltages of 200Vac and 220Vac, and can function within an ambient air temperature range of -40 to +70°C. The SM2A30PRLNCQDB offers a degree of protection rated at IP67, NEMA 6P, and IP69K, and features a M30 cylindrical threaded/barrel shape. It provides 1 x digital output (Solid-state AC output) and has a sensing distance of up to 150m. The sensor operates with infrared light, having a wavelength of 880 nm, and a response time of 10ms (0.01 s), in a Dark-ON operating mode.
