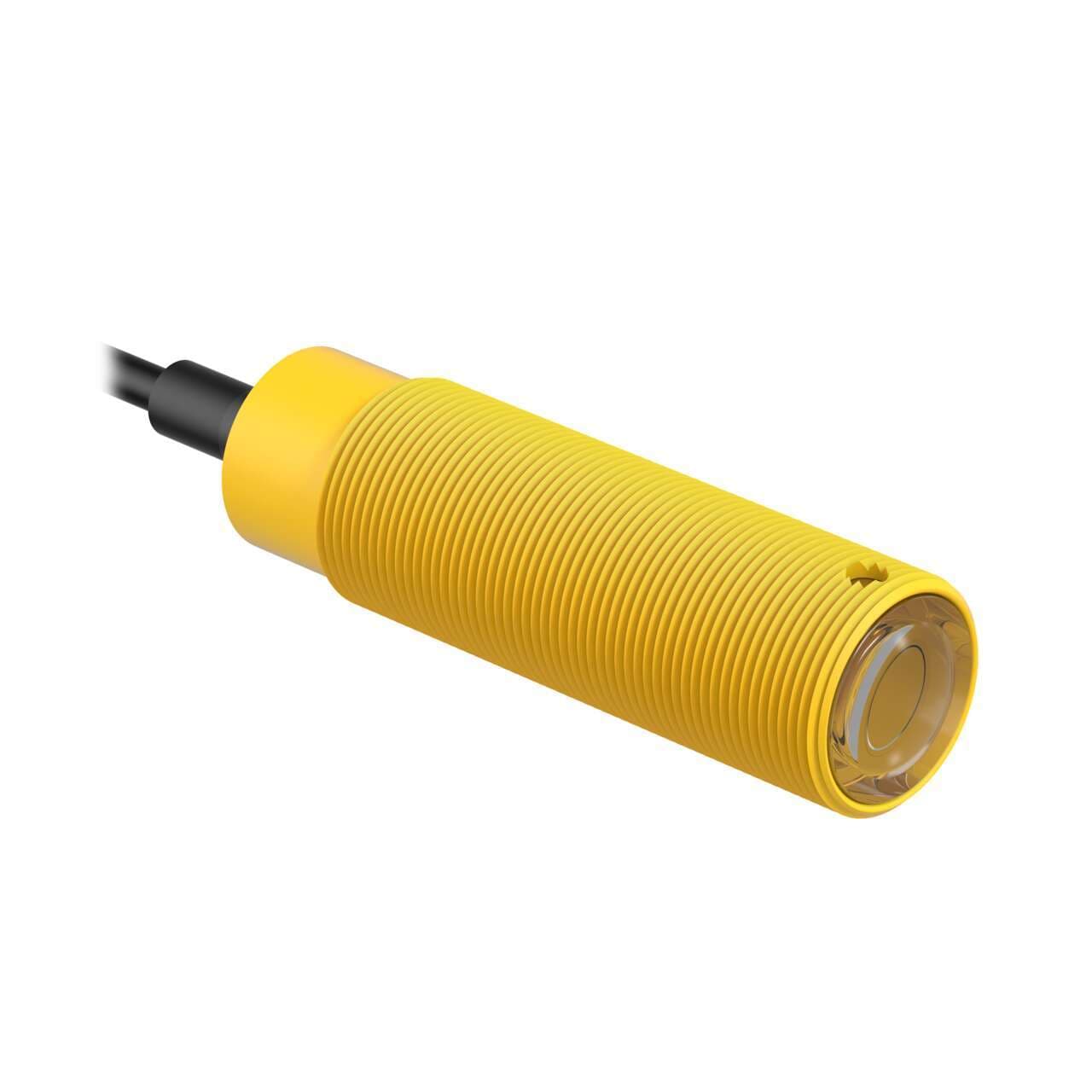

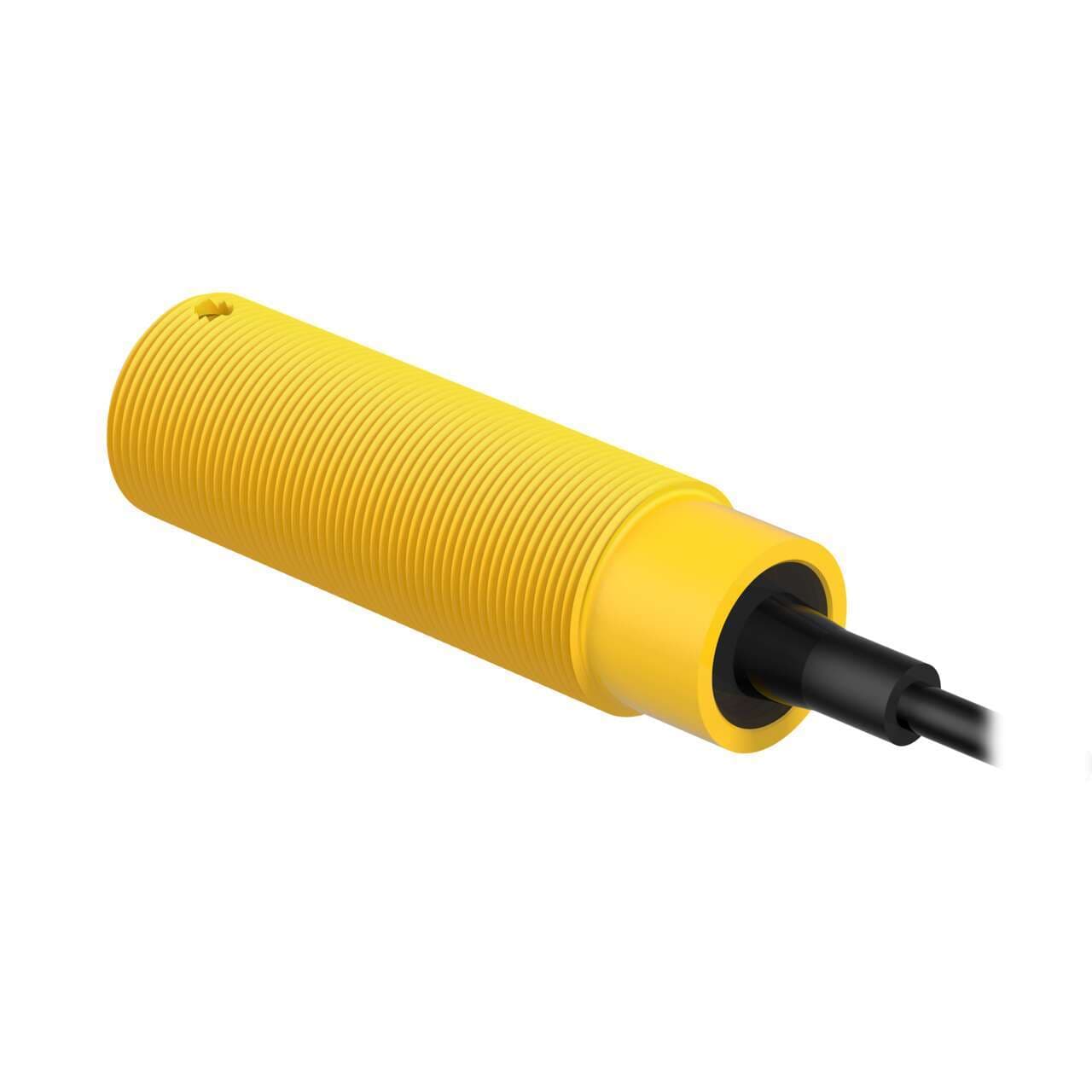

SM2A30PRLNC W/30 Banner Proximity Sensors
Part#:SM2A30PRLNC W/30
Alt. Part#:27797
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency A PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 9 m (30 ft) Cable
Product Details
- Weight 637.29676 g
- Country Of Origin US
- Sensing Mode (General) Opposed
- Connection Cable
- NEMA Rating NEMA 6P
- Barrel Diameter (mm) 30
- Housing Style Barrel
- Outputs Solid-State AC Switch
- Repeatability (µs) 1000
- Feature: Encapsulated No
- Cable Length (m) 9
- Max Op. Temp. (°C) 70
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Receiver
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Receiver
- Quick Disconnect Type No QD
- Number of Pins 3
- Feature: Hazardous Area No
- Input/Output Solid-State AC Switch
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Adjustments N/A
- DeviceNet No
- Sensing Beam Infrared LED
- Operation Dark Operate
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- IO Link No
- Power AC
- Power Supply/Supply Voltage 24-240 V ac
- Special Feature: Remote Teach No
- Indicator LEDs
- Max Sensing Distance (mm) 150000
- Output response time (ms) 10
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Thermoplastic
- Delay at Power-up (ms) N/A
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A30PRLNC W/30 on Powermatic Associates is $331.00. Order now.
About the product
Banner Engineering SM2A30PRLNC W/30 is a photo-electric sensor from the SM30 series, designed with a through-beam system and opposed mode "A" modulation frequency, suitable for washdown applications. This sensor, functioning as a receiver alone, is housed in a thermoplastic material and comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can function within an ambient air temperature range of -40 to +70°C. The sensor is protected to a degree of IP67 NEMA 6P IP69K, ensuring its durability in various environmental conditions. It features a M30 cylindrical threaded/barrel shape, a single digital output (Solid-state AC output), and is capable of sensing distances up to 150m. The sensor utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 10ms / 0.01 s. It operates in a Dark-ON mode and is equipped with an M30 thread size.
