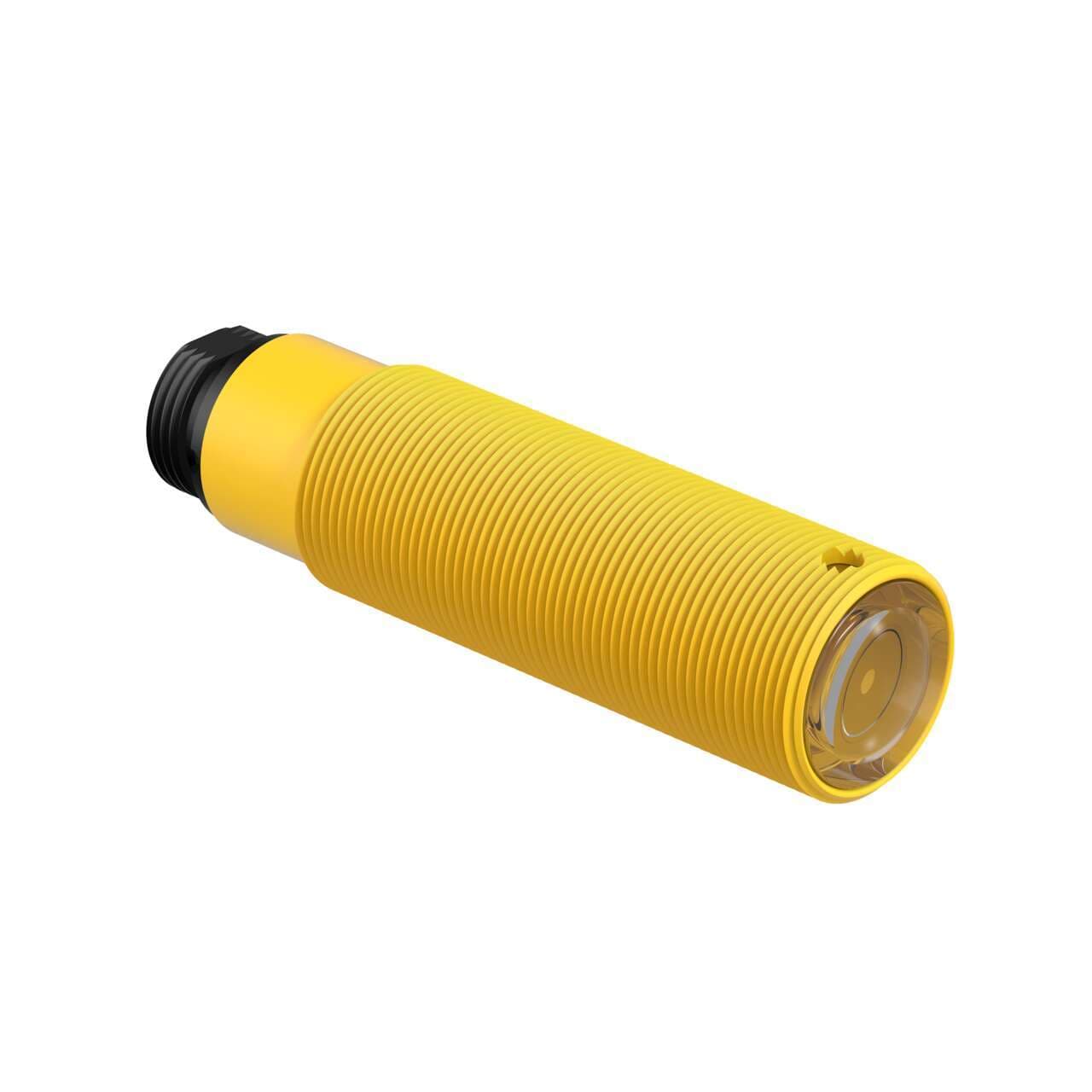

SM2A30PRLQDC Banner Proximity Sensors
Part#:SM2A30PRLQDC
Alt. Part#:35911
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency C PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Light Operate; 3-pin Mini Integral QD
Product Details
- Weight 156.035648 g
- Country Of Origin MX
- Sensing Mode (Detailed) Receiver
- Sensing Mode (General) Opposed
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 24-240 V ac
- Min Op. Temp. (°C) -40
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Number of Pins 3
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Lens Material Acrylic
- Outputs Solid-State AC Switch
- Quick Disconnect Type 7/8 in. (Mini)
- Special Feature: Water Detection No
- Indicator LEDs
- DeviceNet No
- Input/Output Solid-State AC Switch
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Opposed Mode Emitter/Receiver Receiver
- Max Sensing Distance (mm) 150000
- Repeatability (µs) 2300
- Output response time (ms) 10
- Feature: Audible No
- Sensing Beam Infrared LED
- Connection Integral QD
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 30
- Feature: Encapsulated Yes
- Power AC
- Operation Light Operate
- Delay at Power-up (ms) N/A
- Feature: Hazardous Area No
- Adjustments N/A
- Feature: Chemical Resistant No
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A30PRLQDC on Powermatic Associates is $288.00. Order now.
About the product
Banner Engineering SM2A30PRLQDC is a photo-electric sensor designed for through-beam system applications, part of the SM30 series. This sensor operates as the receiver in an opposed mode "C" modulation frequency system and is rated for washdown environments. It features a thermoplastic housing and comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor is designed to work with a supply voltage range of 24Vac to 240Vac, with nominal voltages at 200Vac and 220Vac. It can operate within an ambient air temperature range of -40 to +70°C. The SM2A30PRLQDC offers a degree of protection rated at IP67, NEMA 6P, and IP69K, making it suitable for harsh environmental conditions. Its shape is an M30 cylindrical threaded/barrel, and it includes 1 x digital output (Solid-state AC output) for signaling. The sensing distance of this sensor is up to 150 meters, utilizing infrared (IR) light with a wavelength of 880 nm. It has a response time of 10ms (0.01 s) and operates in a Light-ON mode.
