SM2A30SRLMC1 W/30 Banner Proximity Sensors
Part#:SM2A30SRLMC1 W/30
Alt. Part#:70922
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM2 A30SRLMC1 W/30 FT 600 V CBL
Product Details
- Weight 1070.47712 g
- Country Of Origin MX
- Input/Output Solid-State AC Switch
- Min Op. Temp. (°C) -40
- Special Feature: Remote Teach No
- Indicator LEDs
- IO Link No
- Feature: Encapsulated No
- Sensing Mode (Detailed) Receiver
- Connection Cable
- Delay at Power-up (ms) N/A
- Adjustments N/A
- Max Sensing Distance (mm) 150000
- Quick Disconnect Type No QD
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Sensing Mode (General) Opposed
- Outputs Solid-State AC Switch
- Repeatability (µs) 1000
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Stainless Steel
- Operation Light Operate
- Number of Pins 3
- Opposed Mode Emitter/Receiver Receiver
- Cable Length (m) 9
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- DeviceNet No
- Sensing Beam Infrared LED
- Output response time (ms) 10
- Max Op. Relative Humidity [%] 90% @ 50°C
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Hazardous Area No
- Power AC
- Power Supply/Supply Voltage 24-240 V ac
- NEMA Rating NEMA 6P
- Feature: Audible No
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A30SRLMC1 W/30 on Powermatic Associates is $483.00. Order now.
About the product

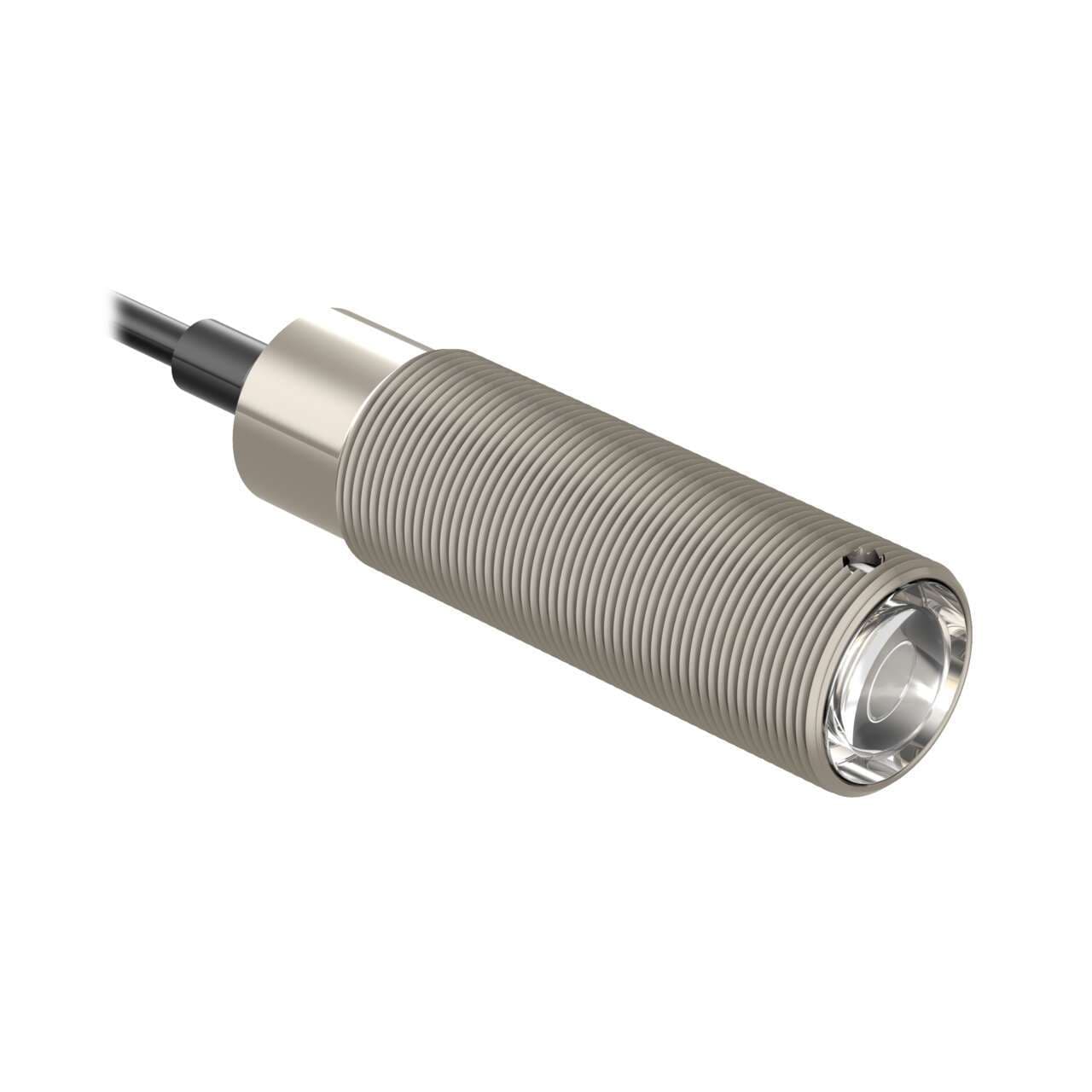

Banner Engineering SM2A30SRLMC1 W/30 is a photo-electric sensor from the SM30 series, designed with a through-beam system and opposed mode "A" modulation frequency, suitable for washdown applications. This sensor, functioning as a receiver alone, is encased in a stainless steel housing, ensuring durability. It comes pre-wired with a 30ft / 9m 600Vac cable that terminates with bare end flying leads, facilitating easy installation. The sensor operates within a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can function in ambient air temperatures ranging from -40 to +70°C. It boasts a degree of protection rated at IP67, NEMA 6P, and IP69K, making it highly resistant to dust and water ingress. The SM2A30SRLMC1 W/30 features a M30 cylindrical threaded/barrel shape for straightforward mounting. It offers a single digital output (Solid-state AC output) and has a sensing distance of up to 150m. The sensor operates with an infrared light source at a wavelength of 880 nm and has a quick response time of 10ms / 0.01 s. Its operating mode is Light-ON, designed for a variety of detection applications.
