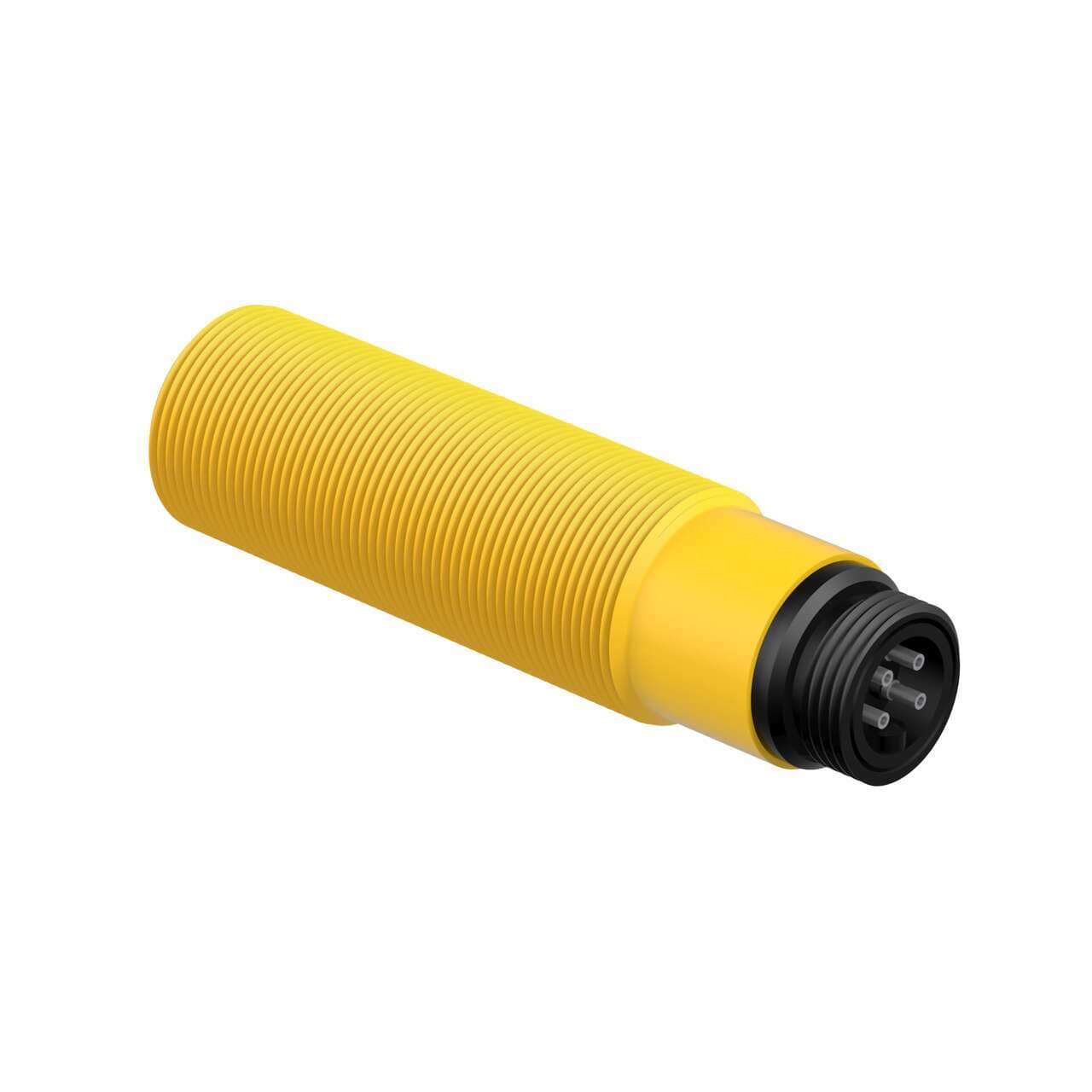

SM2A30PRLQDB Banner Proximity Sensors

Name: SM2A30PRLQDB
Brand: Banner
Price: 288 USD
Availability: BackOrder

Part#:SM2A30PRLQDB

Alt. Part#:27385

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

SM30 Series: Receiver - Frequency B PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Light Operate; 3-pin Mini Integral QD

Product Details

Weight
163.29312 g
Country Of Origin
MX
Sensing Mode (General)
Opposed
Sensing Beam
Infrared LED
Sensing Mode (Detailed)
Receiver
Connection
Integral QD
Power Supply/Supply Voltage
24-240 V ac
Min Op. Temp. (°C)
-40
Special Feature: Remote Teach
No
Number of Pins
3
IP Rating
IP67
Repeatability (µs)
1500
Opposed Mode Emitter/Receiver
Receiver
Housing Style
Barrel
Max Op. Temp. (°C)
70
NEMA Rating
NEMA 6P
Feature: Encapsulated
Yes
Primary Housing Material
Thermoplastic
Outputs
Solid-State AC Switch
Special Feature: Intrinsically Safe
No

Max Op. Relative Humidity [%]

90% @ 50°C

Feature: Hazardous Area

Power

Input/Output

Solid-State AC Switch

Quick Disconnect Type

7/8 in. (Mini)

Output response time (ms)

Special Feature: Water Detection

Delay at Power-up (ms)

N/A

Barrel Diameter (mm)

Max Sensing Distance (mm)

150000

Operation

Light Operate

Lens Material

Acrylic

Adjustments

N/A

DeviceNet

Feature: Audible

Indicator

LEDs

IO Link

Feature: Chemical Resistant

Feature: Timing (Hold/Delay)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A30PRLQDB on Powermatic Associates is $288.00. Order now.

About the product

Banner Engineering SM2A30PRLQDB is a photo-electric sensor from the SM30 series designed with a through-beam system and opposed mode "B" modulation frequency, suitable for washdown applications. This sensor, functioning as a receiver alone, is housed in a thermoplastic material and comes pre-equipped with a 3-pin 7/8" mini connector. It operates on a supply voltage ranging from 24Vac to 240Vac, with nominal voltages at 200Vac and 220Vac. The sensor can operate within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, NEMA 6P, and IP69K. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The SM2A30PRLQDB features 1 x digital output (Solid-state AC output), a sensing distance of up to 150m, and utilizes infrared (IR) light with a wavelength of 880 nm. It has a response time of 10ms (0.01 s) and operates in Light-ON mode.
