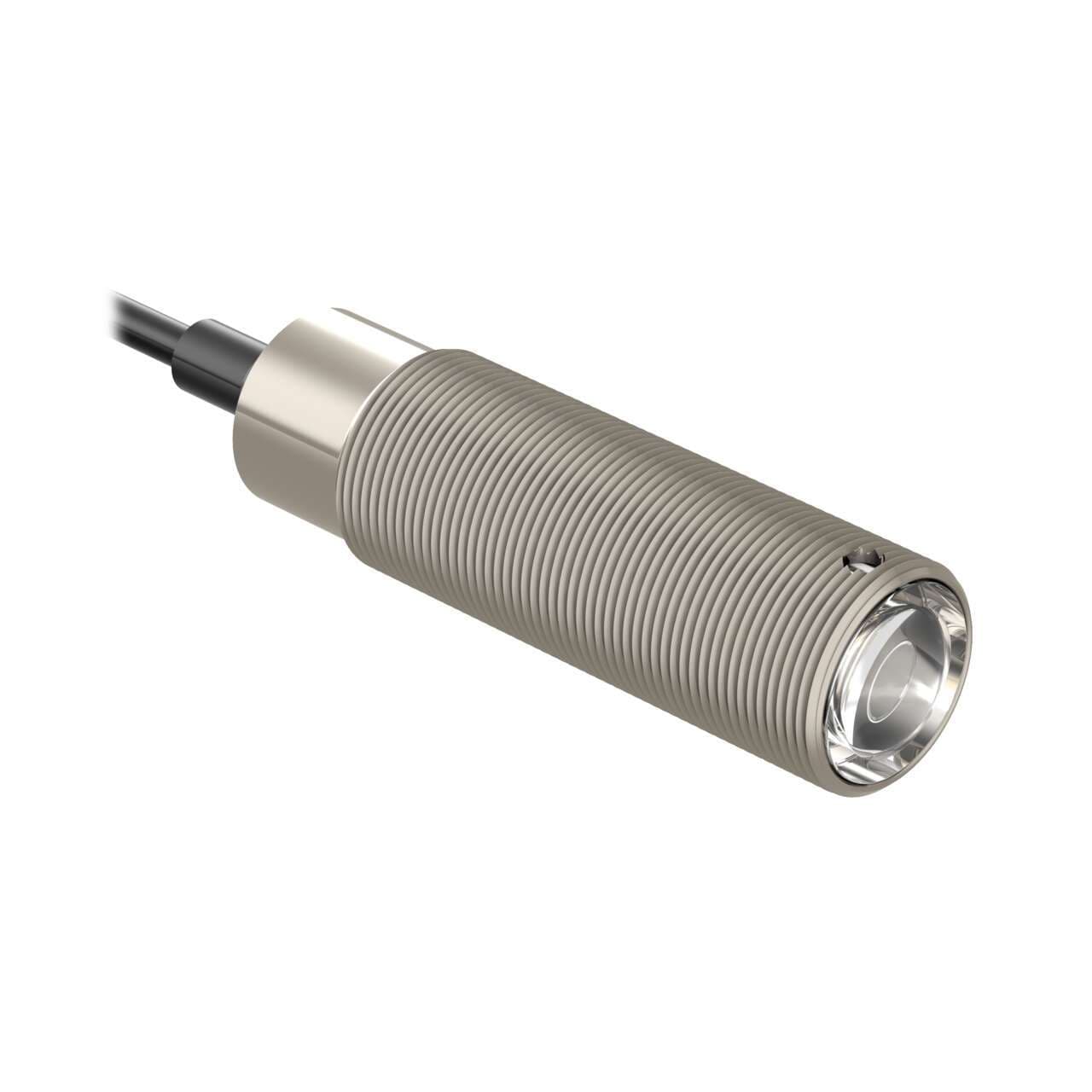

SM2A30SRLNCC W/30 Banner Proximity Sensors
Part#:SM2A30SRLNCC W/30
Alt. Part#:35944
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency C Stainless Stl; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 9 m (30 ft) Cable
Product Details
- Weight 852.75296 g
- Country Of Origin US
- Primary Housing Material Stainless Steel
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 150000
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Input/Output Solid-State AC Switch
- Max Op. Temp. (°C) 70
- Opposed Mode Emitter/Receiver Receiver
- Outputs Solid-State AC Switch
- Cable Length (m) 9
- Delay at Power-up (ms) N/A
- Barrel Diameter (mm) 30
- IO Link No
- Sensing Mode (General) Opposed
- Operation Dark Operate
- Number of Pins 3
- Indicator LEDs
- Sensing Mode (Detailed) Receiver
- Min Op. Temp. (°C) -40
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Housing Style Barrel
- Quick Disconnect Type No QD
- Repeatability (µs) 2300
- Feature: Encapsulated Yes
- Power AC
- Connection Cable
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Audible No
- Output response time (ms) 10
- Lens Material Acrylic
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 24-240 V ac
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A30SRLNCC W/30 on Powermatic Associates is $450.00. Order now.
About the product
Banner Engineering SM2A30SRLNCC W/30 is a photo-electric sensor from the SM30 series, designed with a through-beam system and opposed mode "C" modulation frequency, suitable for washdown applications. This sensor features a stainless steel housing in an M30 cylindrical threaded/barrel shape, ensuring durability and compatibility with demanding environments. It is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, facilitating easy installation. The sensor operates within a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can function in ambient air temperatures ranging from -40 to +70°C. It offers a high degree of protection with ratings of IP67, NEMA 6P, and IP69K, making it suitable for use in various industrial settings. The SM2A30SRLNCC W/30 provides a sensing distance of up to 150m and features a single digital output (Solid-state AC output) with a response time of 10ms / 0.01 s. It operates in Dark-ON mode, utilizing infrared (IR) light with a wavelength of 880 nm. The thread size for mounting is M30, ensuring compatibility with standard fittings.
