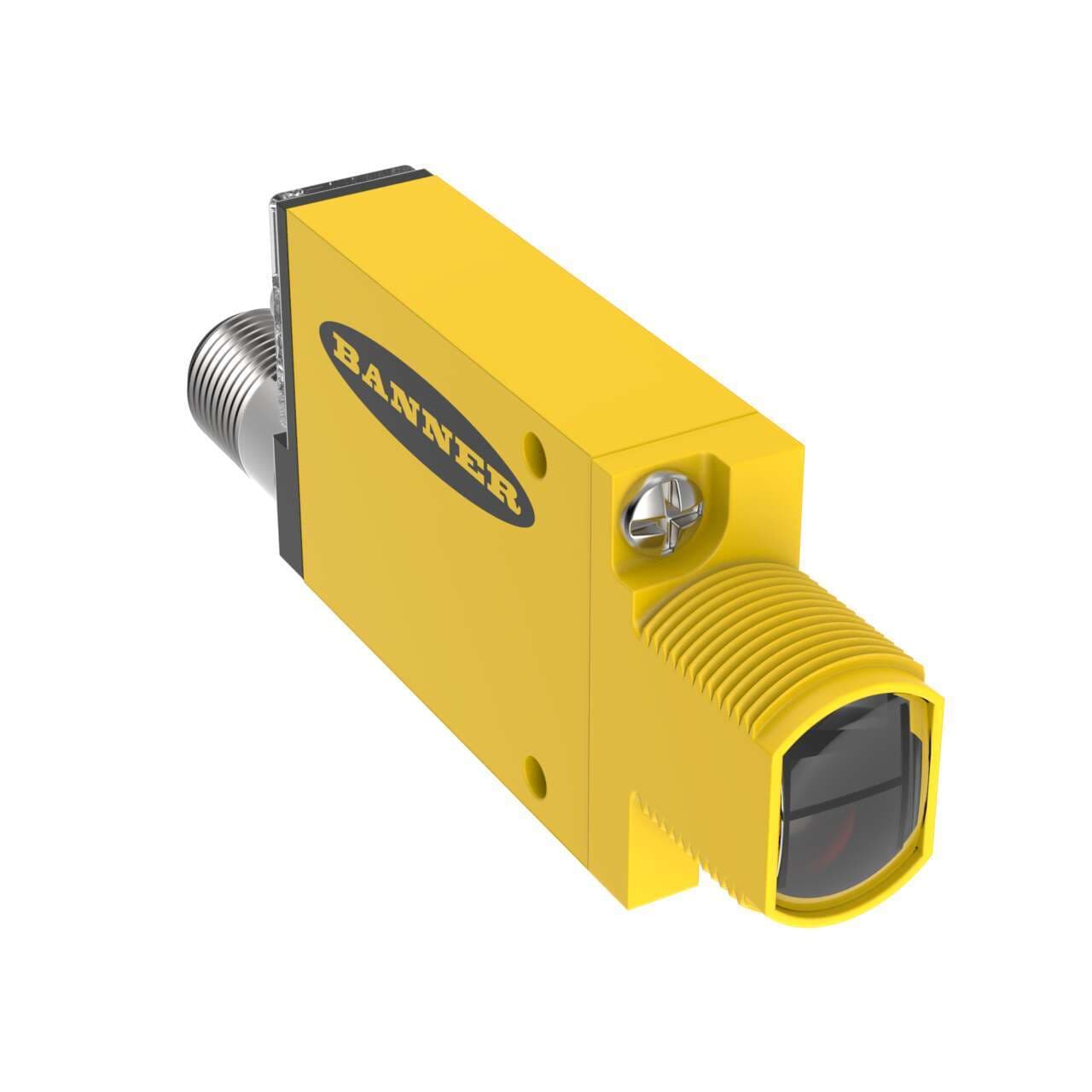

SM2A312CQD Banner Proximity Sensors
Part#:SM2A312CQD
Alt. Part#:33730
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Infrared 880 nm Convergent; Focal Point: 16 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD
Product Details
- Weight 70.760352 g
- Country Of Origin US
- Power AC
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 300
- Barrel Diameter (mm) 18
- IP Rating IP67
- DeviceNet No
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 70
- Adjustments Potentiometer
- Housing Style Rectangular w/M18 Mount
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 90% @ 50°C
- Outputs Solid-State AC Switch
- Output response time (ms) 4
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Connection Integral QD
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- Feature: Audible No
- Quick Disconnect Type 1/2 in. (Micro)
- Repeatability (µs) 1300
- Feature: Hazardous Area No
- IO Link No
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 16
- Power Supply/Supply Voltage 24-240 V ac
- Number of Pins 3
- Feature: Encapsulated No
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Convergent
- Input/Output Solid-State AC Switch
- Indicator LEDs
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A312CQD on Powermatic Associates is $191.00. Order now.
About the product
Banner Engineering SM2A312CQD is a photo-electric sensor from the SM2A312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 3-pin 1/2" micro connector for connectivity. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can be mounted using an M18 threaded mount. The ambient air temperature for operation ranges from -20 to +70°C. It offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, and NEMA 13. The sensor has a rectangular shape and includes 1 x digital output (Solid-state AC output; SPST contact type) with a sensing distance of 16mm. It utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 4ms / 0.004 s.
