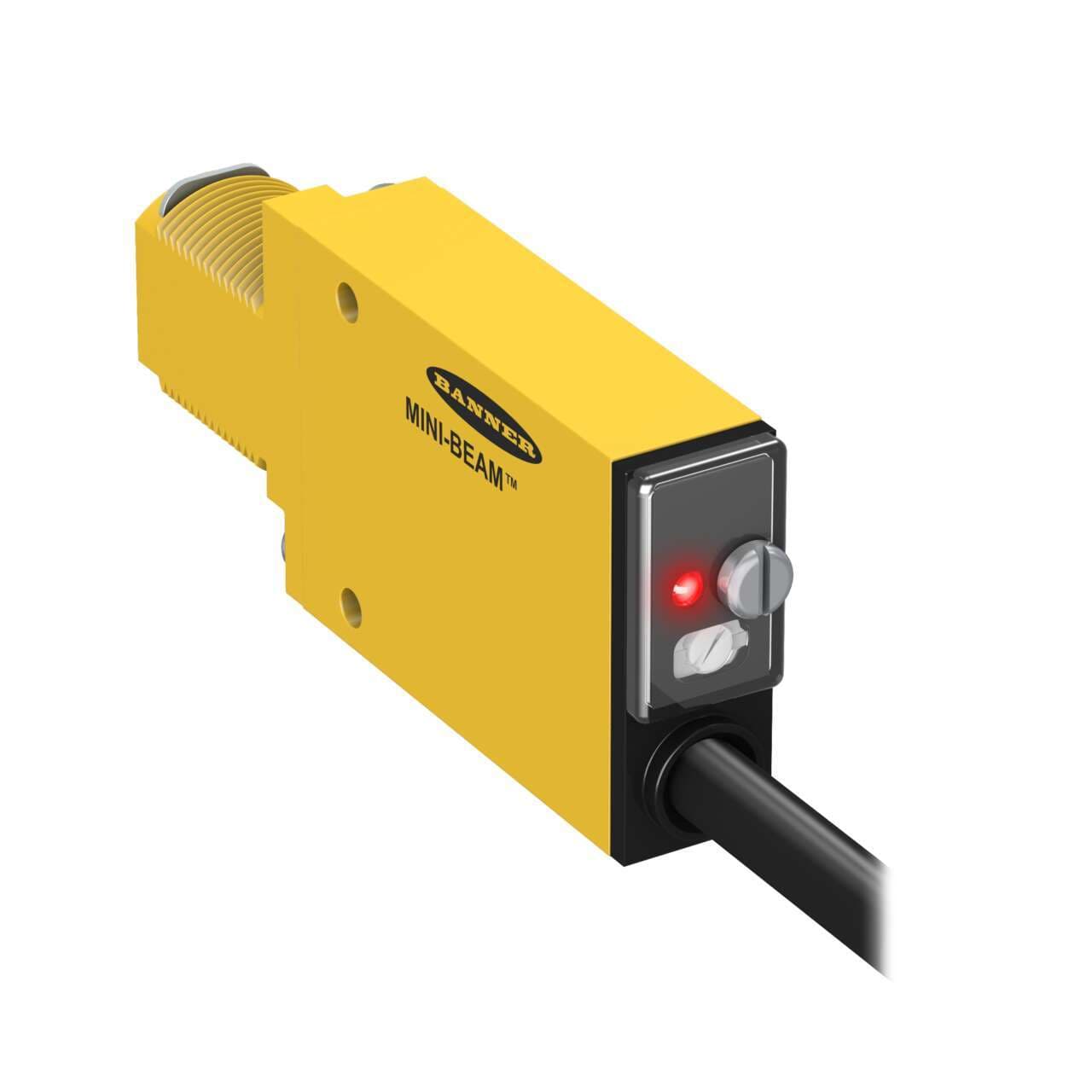

SM2A312F Banner Proximity Sensors
Part#:SM2A312F
Alt. Part#:25966
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Infrared 880 nm Glass Fiber Optic; Range: Depends on Fiber; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 2 m (6.5 ft) Cable
Product Details
- Weight 156.035648 g
- Country Of Origin US
- Color LED - Amplifiers Infrared
- Repeatability (µs) 2600
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Power Supply/Supply Voltage 24-240 V ac
- Housing Style Rectangular w/M18 Mount
- Output Solid-State AC Switch
- Max Op. Relative Humidity (%) 90% @ 50°C
- Feature: Audible No
- Max Op. Temperature (°C) 70
- Output Type (Specific) Single Discrete
- Special Feature: Bussable Power No
- Primary Housing Material Thermoplastic
- IP Rating IP67
- Delay at Power-up (ms) 300
- Quick Disconnect Type No QD
- Special Feature: Remote Teach No
- Indicator Display Type Indicator LEDs
- Power AC
- Connection Cable
- Min Op. Temperature (°C) -20
- Feature: Hazardous Area No
- Input/Output Discrete
- Number of Pins 2
- Adjustments Potentiometer
- Housing Material Thermoplastic
- Fiber Type Glass Only
- Intrinsically Safe No
- Minimum response time (ms) 8
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A312F on Powermatic Associates is $184.00. Order now.
About the product
Banner Engineering SM2A312F is a photo-electric fiber optic sensor within the SM2A312 series, designed with a potentiometer adjustment for glass fiber. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. This sensor operates on a supply voltage of 24Vac-240Vac (200Vac / 220Vac nom.) and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The SM2A312F has a rectangular shape, one digital output (Solid-state AC output; SPST contact type), utilizes infrared light with a wavelength of 880 nm, and has a response time of 8ms / 0.008 s.
