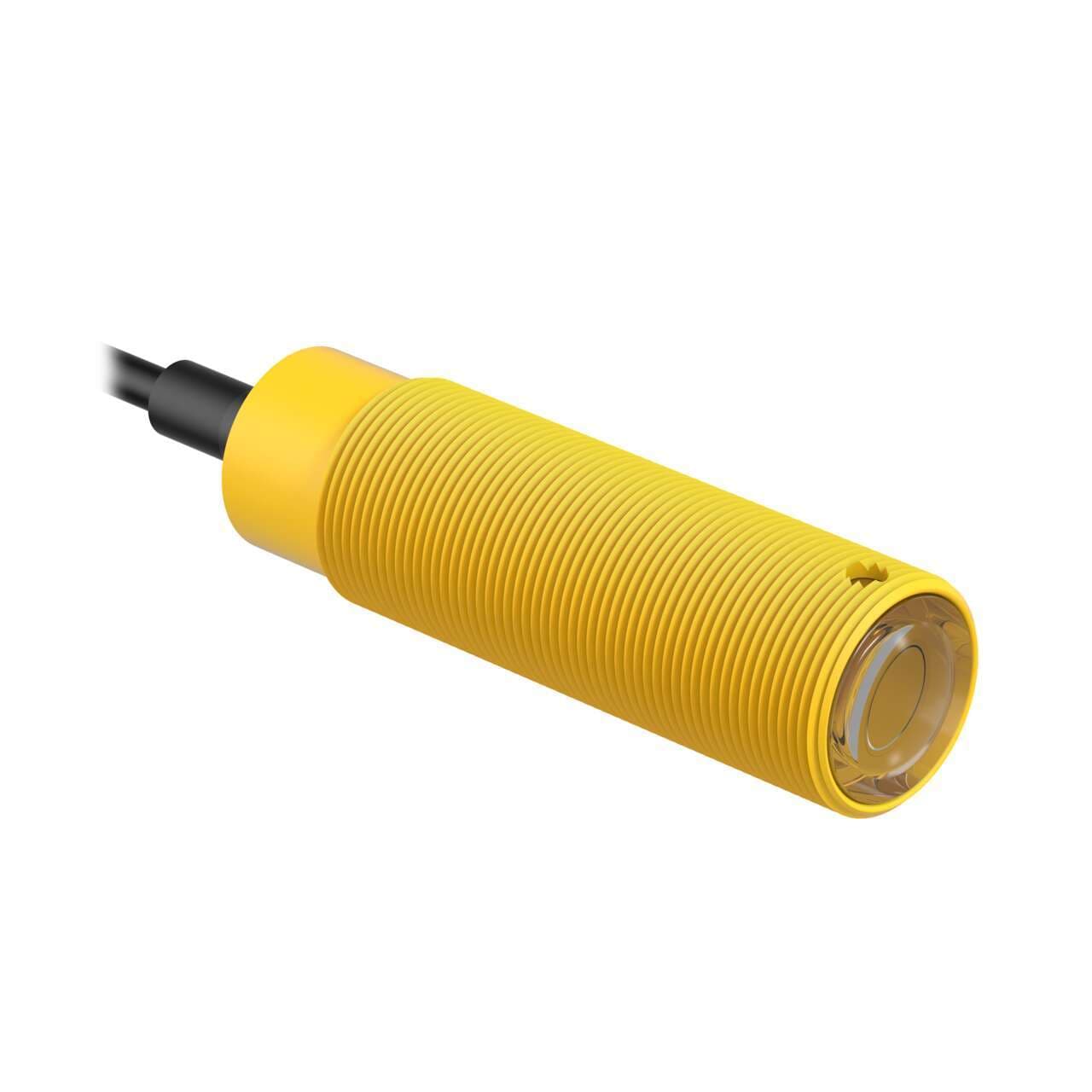

SM303E Banner Proximity Sensors
Part#:SM303E
Alt. Part#:34131
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM SM30 Series: Emitter; Range: 60 m; Input: 20-250 V ac; Output: Not Applicable; 2 m (6.5 ft) Cable
Product Details
- Weight 210.013096 g
- Country Of Origin MX
- Number of Pins 2
- Cable Length (m) 2
- Sensing Beam Infrared LED
- Special Feature: Remote Teach No
- Repeatability (µs) 2000
- Special Feature: Water Detection No
- NEMA Rating NEMA 6P
- Delay at Power-up (ms) 100
- IP Rating IP67
- Max Op. Relative Humidity [%] 90% @ 50°C
- Adjustments N/A
- Barrel Diameter (mm) 30
- Lens Material Acrylic
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Emitter
- Output response time (ms) N/A
- Max Sensing Distance (mm) 60000
- Operation N/A
- Housing Style Barrel
- Power AC
- Quick Disconnect Type No QD
- Outputs N/A
- Min Op. Temp. (°C) -40
- Sensing Mode (General) Opposed
- Special Feature: Intrinsically Safe No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Power Supply/Supply Voltage 20-250 V ac
- Connection Cable
- Feature: Hazardous Area No
- DeviceNet No
- IO Link No
- Feature: Audible No
- Opposed Mode Emitter/Receiver Emitter
- Feature: Chemical Resistant No
- Indicator LEDs
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM303E on Powermatic Associates is $143.00. Order now.
About the product
Banner Engineering SM303E is a photo-electric sensor designed as part of the SM30 series, featuring a through-beam system in an opposed mode configuration. This sensor functions as an emitter alone, housed in a thermoplastic body with an acrylic lens. It comes pre-wired with a 6.5ft / 2m cable that terminates in bare end flying leads for connection. The SM303E operates on a supply voltage ranging from 20Vac to 250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. It is designed to function within an ambient air temperature range of -40 to +70 degrees Celsius. This sensor offers a degree of protection rated at IP67 and NEMA 6P, ensuring its durability in various environmental conditions. It features an M30 cylindrical threaded/barrel shape for easy installation. The sensing distance of the SM303E is up to 60 meters, utilizing infrared (IR) light with a wavelength of 880 nm for detection.
