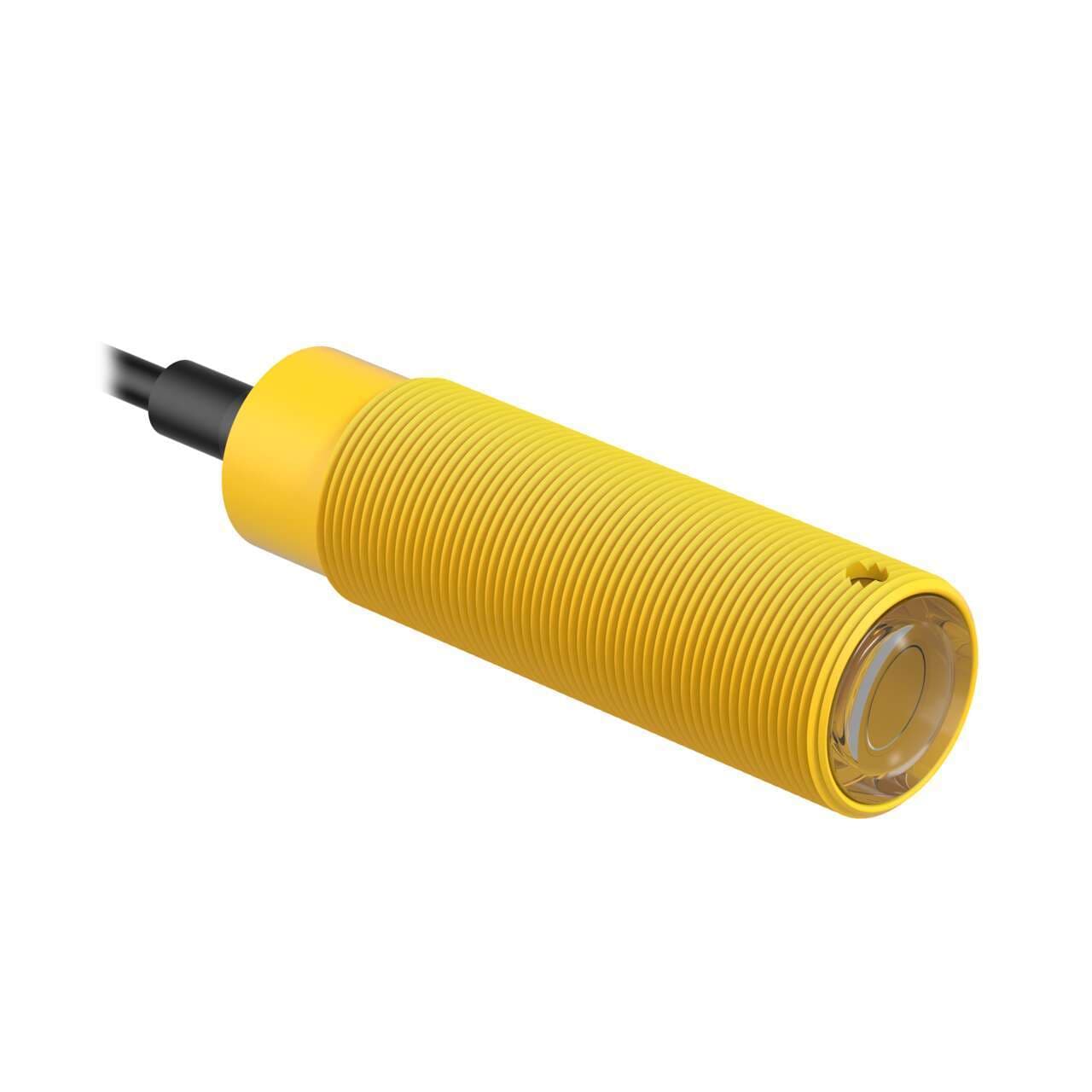

SM306E Banner Proximity Sensors

Product Details

• Weight
  208.198728 g
• Country Of Origin
  MX
• Main function
  Sensor (Photo-electric)
• Sub-range name
  SM30 series
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Shape
  Cylindrical threaded/barrel
• Degree of protection
  IP67 NEMA 6P
• Order code / Manufacturer SKU
  33315
• Product series / family name
  EZ-BEAM series
• Wavelength
  880 nm
• Ambient air temperature for operation
  -40...+70 °C
• Primary brand
  Banner Engineering
• Functions
  Photo-electric emitter red LED (power ON)
• Thread size
  M30
• Compliant with standard(s)
  CSA CE
• Design
  through-beam system / opposed mode
• Light Color
  Infrared (IR)
• Material
  thermoplastic housing Acrylic lns.
• Primary Housing Material
  Thermoplastic
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Hazardous Area
No
Housing Style
Barrel
Max Op. Temp. (°C)
70
Delay at Power-up (ms)
100
Cable Length (m)
2
Min Op. Temp. (°C)
-40
IP Rating
IP67
Sensing Mode (Detailed)
Emitter
Quick Disconnect Type
No QD
Repeatability (µs)
375
Opposed Mode Emitter/Receiver
Emitter
Indicator
LEDs
Power
DC
Power Supply/Supply Voltage
10-30 V dc
Sensing Beam Wavelength
880
Adjustments
N/A
Feature: Timing (Hold/Delay)
No
DeviceNet
No
Sensing Beam
Infrared LED
Special Feature: Remote Teach
No
Lens Material
Acrylic
Feature: Chemical Resistant
No
Max Sensing Distance (mm)
60000
Operation
N/A
NEMA Rating
NEMA 6P
Feature: Audible
No
Sensing Mode (General)
Opposed
Connection
Cable
Special Feature: Water Detection
No
Barrel Diameter (mm)
30
IO Link
No
Outputs
N/A
Output response time (ms)
3 ON/1.5 OFF
Number of Pins
2
Feature: Encapsulated
Yes
