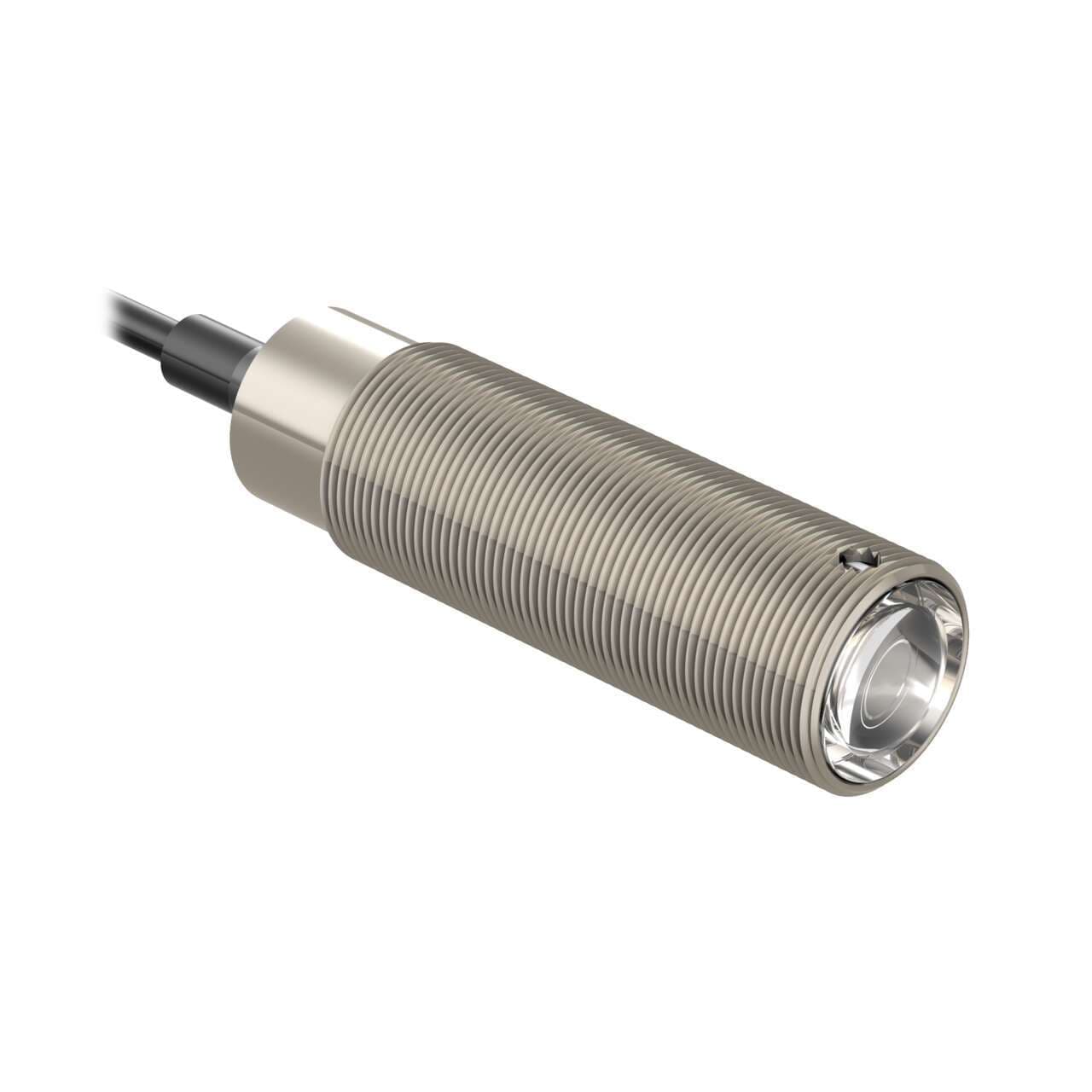

SM30SN6R Banner Proximity Sensors

Product Details

• Weight
  215.4562 g
• Country Of Origin
  MX
• Sensing distance
  60m
• Response time
  3ms / 0.003 s
• Order code / Manufacturer SKU
  33316
• Light Color
  Infrared (IR)
• Thread size
  M30
• Digital outputs
  1 x digital output (NPN transistor)
• Shape
  Cylindrical threaded/barrel
• Ambient air temperature for operation
  -40...+70 °C
• Material
  thermoplastic housing Acrylic lns.
• Sub-range name
  SM30 series
• Main function
  Sensor (Photo-electric)
• Functions
  Photo-electric sensor receiver red LED (power ON)
• Product series / family name
  EZ-BEAM series
• Design
  through-beam system / opposed mode
• Degree of protection
  IP67 NEMA 6P
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Wavelength
  880 nm
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Operating mode
Light-ON Dark-ON
Input/Output
Discrete
Min Op. Temp. (°C)
-40
Sensing Beam Wavelength
880
Adjustments
N/A
DeviceNet
No
Sensing Beam
Infrared LED
Special Feature: Intrinsically Safe
No
NEMA Rating
NEMA 6P
Feature: Chemical Resistant
No
Max Sensing Distance (mm)
60000
Connection
Cable
Repeatability (µs)
375
Opposed Mode Emitter/Receiver
Receiver
Feature: Health/ Marginal Signal Output
Yes
Cable Length (m)
2
Max Op. Temp. (°C)
70
Number of Pins
3
Feature: Audible
No
Power
DC
Output response time (ms)
3 ON/1.5 OFF
IP Rating
IP67
Feature: Hazardous Area
No
Primary Housing Material
Thermoplastic
Outputs
NPN
Special Feature: Remote Teach
No
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Timing (Hold/Delay)
No
Sensing Mode (Detailed)
Receiver
Operation
Light/Dark Operate
Delay at Power-up (ms)
100
Indicator
LEDs
Sensing Mode (General)
Opposed
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Water Detection
No
Barrel Diameter (mm)
30
IO Link
No
Housing Style
Barrel
Quick Disconnect Type
No QD
Lens Material
Acrylic
Feature: Encapsulated
Yes
