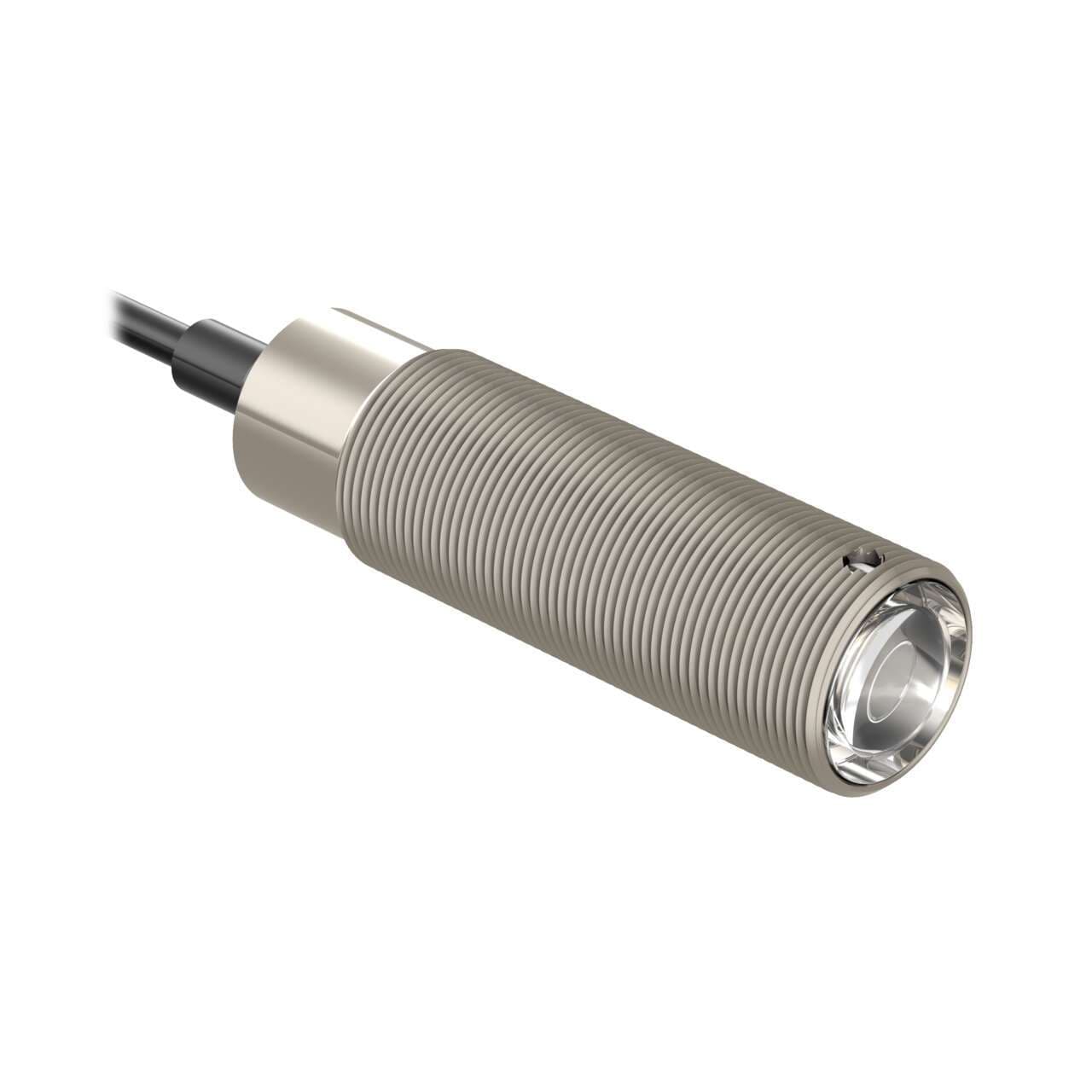

SM30SRLC W/30 Banner Proximity Sensors
Part#:SM30SRLC W/30
Alt. Part#:35939
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency C Stainless Stl; Range: 150 m; Input: 10-30 V dc; Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO; 9 m (30 ft) Cable
Product Details
- Weight 798.32192 g
- Country Of Origin US
- Quick Disconnect Type No QD
- Input/Output Discrete
- Repeatability (µs) 2300
- Barrel Diameter (mm) 30
- Max Op. Relative Humidity [%] 90% @ 50°C
- Opposed Mode Emitter/Receiver Receiver
- Cable Length (m) 9
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Feature: Chemical Resistant Yes
- Sensing Beam Infrared LED
- Outputs Bipolar (NPN & PNP)
- Min Op. Temp. (°C) -40
- Adjustments N/A
- IO Link No
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 150000
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Audible No
- Primary Housing Material Stainless Steel
- Operation Light/Dark Operate
- Lens Material Acrylic
- DeviceNet No
- Sensing Mode (Detailed) Receiver
- IP Rating IP67
- Power DC
- Connection Cable
- Special Feature: Water Detection No
- Feature: Encapsulated Yes
- Sensing Mode (General) Opposed
- Output response time (ms) 10
- Delay at Power-up (ms) N/A
- Feature: Hazardous Area No
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM30SRLC W/30 on Powermatic Associates is $423.00. Order now.
About the product
Banner Engineering SM30SRLC W/30 is a photo-electric sensor from the SM30 series, designed with a through-beam system and opposed mode "C" modulation frequency. This sensor functions as a receiver alone, encased in a stainless steel housing for durability. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It is rated with a degree of protection of IP67 NEMA 6P, indicating a high level of protection against dust and water ingress. The SM30SRLC W/30 features a M30 cylindrical threaded/barrel shape for mounting, and it offers one digital output (PNP/NPN transistor) for signaling. It boasts a sensing distance of up to 150m and utilizes infrared light with a wavelength of 880 nm for detection. The sensor's response time is quick at 10ms / 0.01 s, and it supports both Light-ON and Dark-ON operating modes, making it versatile for various applications.
