SM30SRLMC1 W/30 Banner Proximity Sensors
Part#:SM30SRLMC1 W/30
Alt. Part#:70987
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency A Stainless Stl; Range: 150 m; Input: 10-30 V dc; Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO; 9 m (30 ft) 600 V Cable
Product Details
- Weight 970.68688 g
- Country Of Origin MX
- Outputs Bipolar (NPN & PNP)
- Connection Cable
- Max Op. Relative Humidity [%] 90% @ 50°C
- Sensing Beam Infrared LED
- Output response time (ms) 10
- NEMA Rating NEMA 6P
- Feature: Encapsulated No
- Input/Output Discrete
- Number of Pins 4
- Sensing Mode (Detailed) Receiver
- Special Feature: Water Detection No
- Cable Length (m) 9
- Quick Disconnect Type No QD
- IP Rating IP67
- Delay at Power-up (ms) N/A
- Power DC
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 30
- Opposed Mode Emitter/Receiver Receiver
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -40
- Operation Light/Dark Operate
- Indicator LEDs
- Max Sensing Distance (mm) 150000
- Special Feature: Intrinsically Safe No
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Stainless Steel
- Repeatability (µs) 1000
- Feature: Audible No
- IO Link No
- Feature: Chemical Resistant Yes
- Housing Style Barrel
- Adjustments N/A
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 70
- Lens Material Acrylic
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM30SRLMC1 W/30 on Powermatic Associates is $480.00. Order now.
About the product

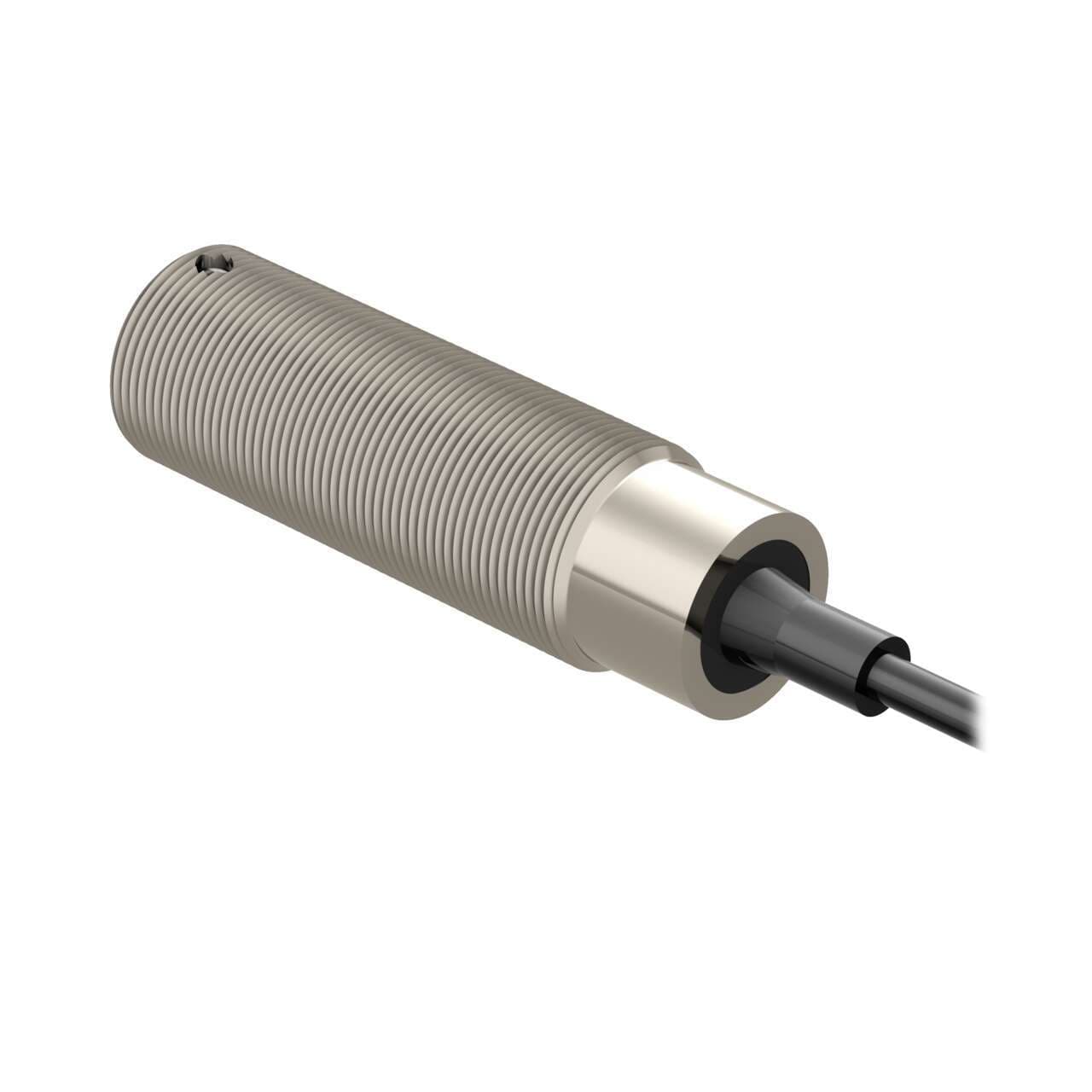

Banner Engineering SM30SRLMC1 W/30 is a photo-electric sensor from the SM30 series, designed with a through-beam system and opposed mode "A" modulation frequency. This sensor functions as a receiver alone, encased in a stainless steel housing for durability. It is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads for connectivity. The sensor operates on a supply voltage of 600Vac and can function within an ambient air temperature range of -40 to +70°C. It boasts an IP67 NEMA 6P degree of protection, ensuring its resilience against dust and water ingress. The SM30SRLMC1 W/30 features a M30 cylindrical threaded/barrel shape for easy installation. It offers 1 x digital output (PNP/NPN transistor) and has a sensing distance of up to 150m. The sensor utilizes infrared (IR) light with a wavelength of 880 nm and has a quick response time of 10ms / 0.01 s. Its operating modes include Light-ON and Dark-ON, accommodating various application needs. The thread size for installation is M30.
SM30SRLMC1 W/30 Related Documents
Similar products from: Banner Proximity Sensors
Manufacturer warranty
