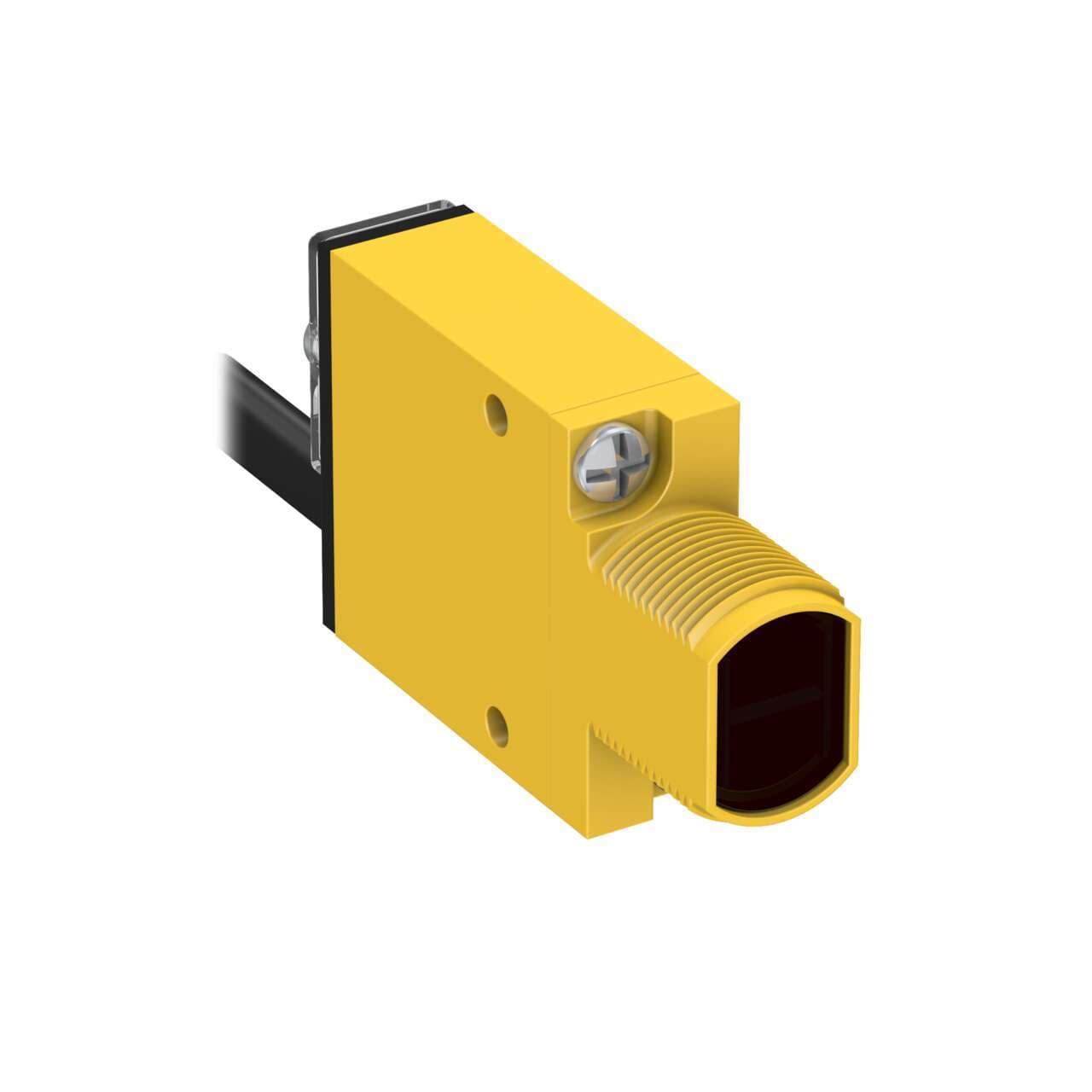

SM312D W/30 Banner Proximity Sensors
Part#:SM312D W/30
Alt. Part#:25801
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Diffuse; Range: 380 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable
Product Details
- Weight 590.576784 g
- Country Of Origin US
- Sensing Mode (Detailed) Diffuse
- Output response time (ms) 1
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 300
- Feature: Encapsulated Yes
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- Indicator LEDs
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Feature: Audible No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Connection Cable
- Power DC
- Outputs Bipolar (NPN & PNP)
- Input/Output Discrete
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Adjustments Potentiometer
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 380
- Quick Disconnect Type No QD
- Feature: Hazardous Area No
- Cable Length (m) 9
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- DeviceNet No
- IP Rating IP67
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312D W/30 on Powermatic Associates is $192.00. Order now.
About the product
Banner Engineering SM312D W/30 is a photo-electric sensor from the SM312 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The SM312D W/30 offers an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. It boasts a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor), with a sensing distance of 380mm. It utilizes infrared (IR) light and has a response time of 1ms / 0.001 s, supporting both Light-ON and Dark-ON operating modes.
