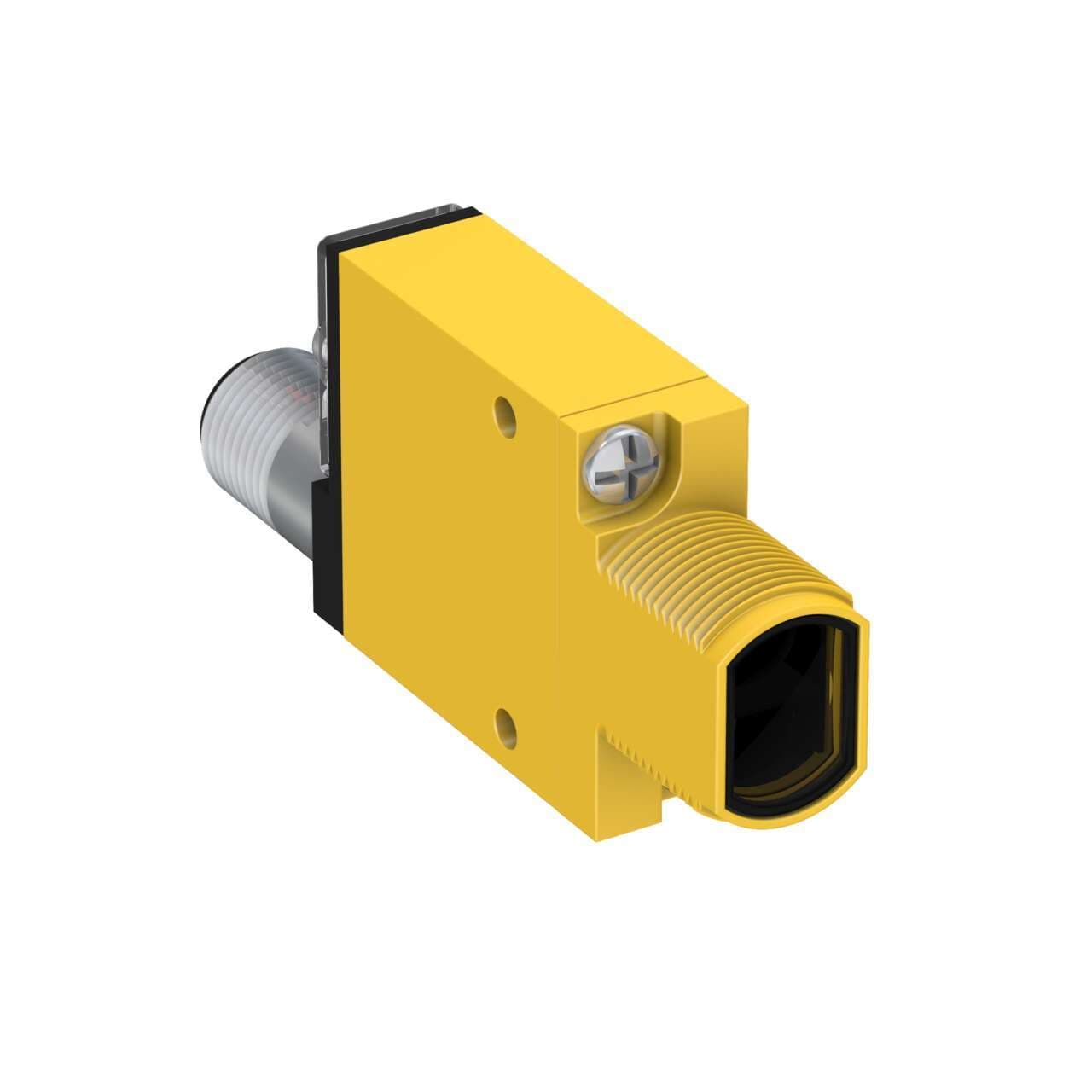

SM312CQD Banner Proximity Sensors
Part#:SM312CQD
Alt. Part#:29184
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Infrared 880 nm Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
Product Details
- Weight 63.50288 g
- Country Of Origin US
- Sensing Mode (General) Proximity
- Connection Integral QD
- Repeatability (µs) 300
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Housing Style Rectangular w/M18 Mount
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 90% @ 50°C
- Opposed Mode Emitter/Receiver N/A
- Outputs Bipolar (NPN & PNP)
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- DeviceNet No
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Encapsulated No
- Sensing Mode (Detailed) Convergent
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Indicator LEDs
- IO Link No
- Power DC
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Audible No
- Sensing Beam Infrared LED
- Quick Disconnect Type M12 (Euro)
- Output response time (ms) 1
- Adjustments Potentiometer
- Max Sensing Distance (mm) 16
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312CQD on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering SM312CQD is a photo-electric sensor from the SM312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. The SM312CQD is capable of operating in ambient air temperatures ranging from -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. Its rectangular shape incorporates 1 x digital output (PNP/NPN transistor), with a sensing distance of 16mm and an infrared (IR) light color. The sensor's response time is 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
