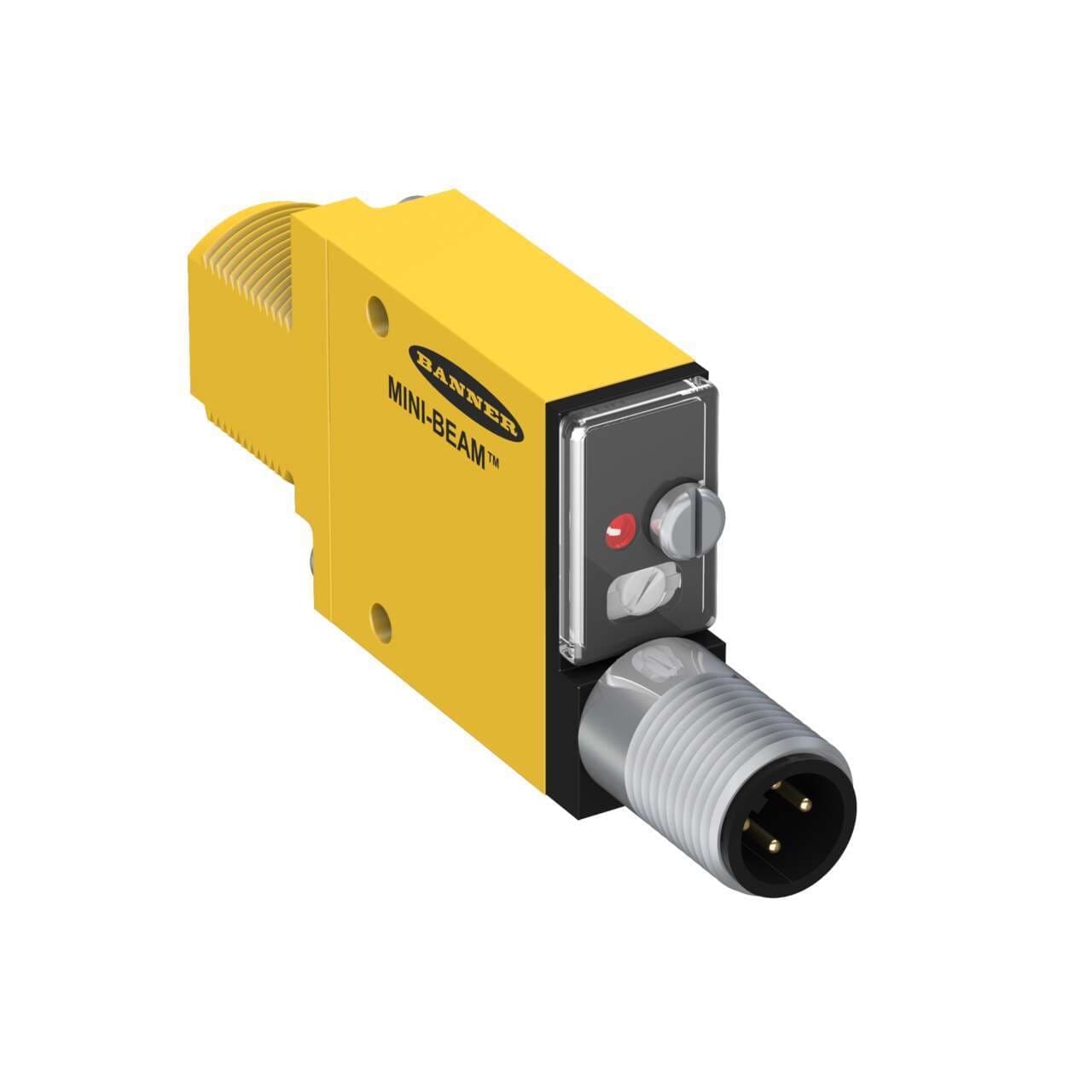

SM312CMHSQD Banner Proximity Sensors
Part#:SM312CMHSQD
Alt. Part#:32959
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Modified High Speed Infrared Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time = 0.3 ms; QD
Product Details
- Weight 63.50288 g
- Country Of Origin US
- Outputs Bipolar (NPN & PNP)
- Special Feature: Intrinsically Safe No
- Delay at Power-up (ms) 100
- Adjustments Potentiometer
- Feature: Audible No
- Output response time (ms) 0.3
- Feature: Encapsulated No
- Sensing Beam Infrared LED
- Connection Integral QD
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Repeatability (µs) 300
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- IP Rating IP67
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Convergent
- Quick Disconnect Type M12 (Euro)
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- DeviceNet No
- Sensing Mode (General) Proximity
- Input/Output Discrete
- Operation Light/Dark Operate
- Lens Material Acrylic
- Max Sensing Distance (mm) 16
- Special Feature: Remote Teach No
- Number of Pins 4
- IO Link No
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -20
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Timing (Hold/Delay) No
- Indicator LEDs
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312CMHSQD on Powermatic Associates is $158.00. Order now.
About the product

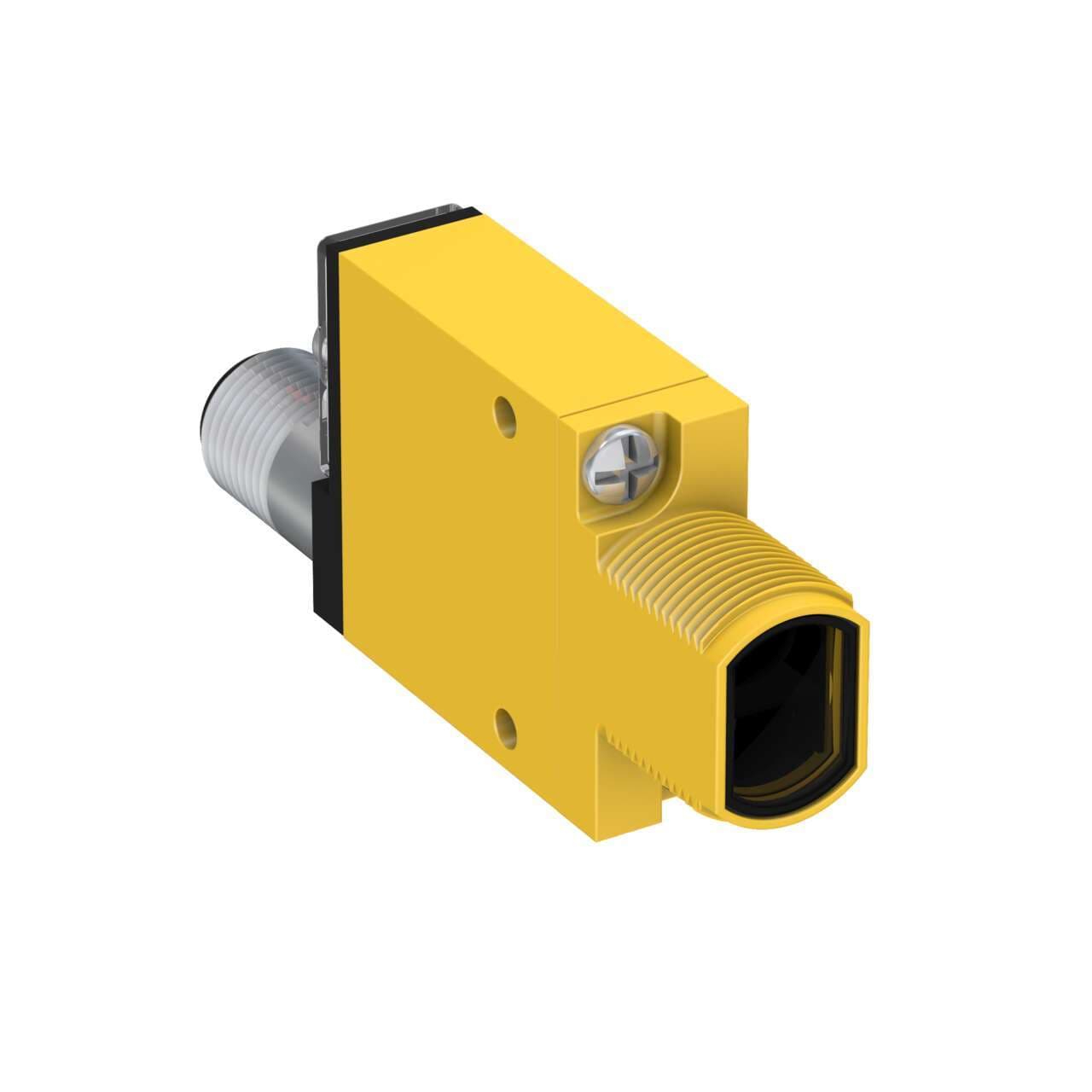

Banner Engineering SM312CMHSQD is a photo-electric sensor from the SM312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The SM312CMHSQD offers versatile mounting options with an M18 threaded mount and can operate within an ambient air temperature range of -20 to +70°C. It boasts a high degree of protection, rated at IP67 and compliant with multiple NEMA standards, including 1, 2, 3, 3S, 4, 4X, 6, and 12. The sensor has a rectangular shape and provides one digital output (PNP/NPN transistor). It is capable of sensing at a distance of 16mm, uses infrared (IR) light, and has a rapid response time of 0.3ms. Additionally, it supports both Light-ON and Dark-ON operating modes.
