Part#:SM312D W/35

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

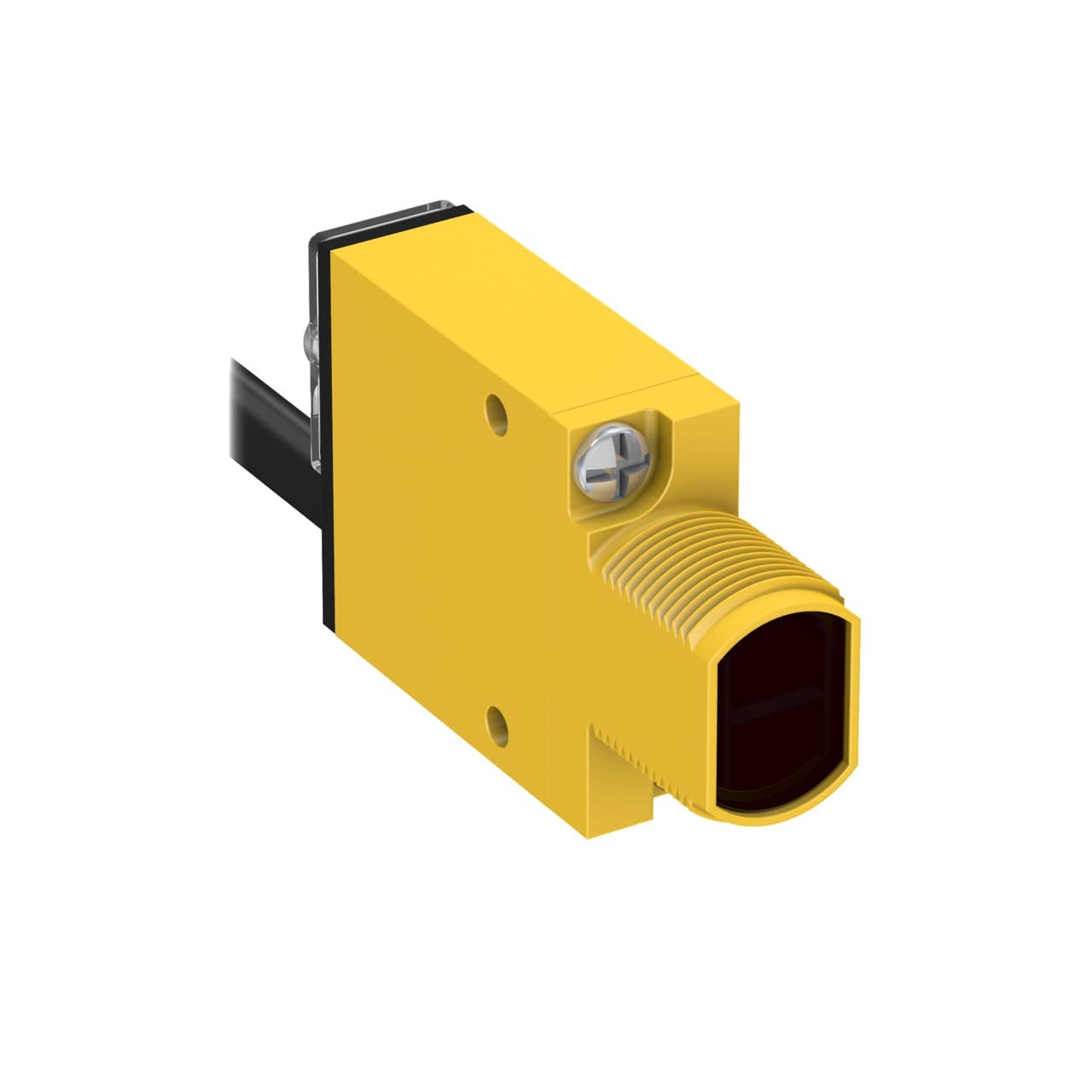

SM312D W/35 MINIBEAM SCANNER

Product Details

  • Outputs
    Bipolar (NPN & PNP)
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Thermoplastic
  • Special Feature: Remote Teach
    No
  • Adjustments
    Potentiometer
  • IO Link
    No
  • Max Sensing Distance (mm)
    380
  • Max Op. Temp. (°C)
    70
  • Number of Pins
    4
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Diffuse
  • Operation
    Light/Dark Operate
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • Opposed Mode Emitter/Receiver
    N/A
  • Housing Style
    Rectangular w/M18 Mount
  • Min Op. Temp. (°C)
    -20
  • Delay at Power-up (ms)
    100
  • Feature: Encapsulated
    Yes
  • DeviceNet
    No
  • Sensing Mode (General)
    Proximity
  • Connection
    Other
  • IP Rating
    IP67
  • Feature: Hazardous Area
    No
  • Input/Output
    Discrete
  • Output response time (ms)
    1
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Timing (Hold/Delay)
    No
  • Power
    DC
  • Power Supply/Supply Voltage
    10-30 V dc
  • Repeatability (µs)
    300
  • Indicator
    LEDs
  • Sensing Beam
    Infrared LED
  • Quick Disconnect Type
    No QD
  • Special Feature: Water Detection
    No
  • Barrel Diameter (mm)
    18

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
