SM31R W/30 Banner Proximity Sensors

SM31R W/30 on Powermatic Associates
Banner
  • SM31R W/30
  • SM31R W/30

Part#:SM31R W/30

Alt. Part#:25719

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

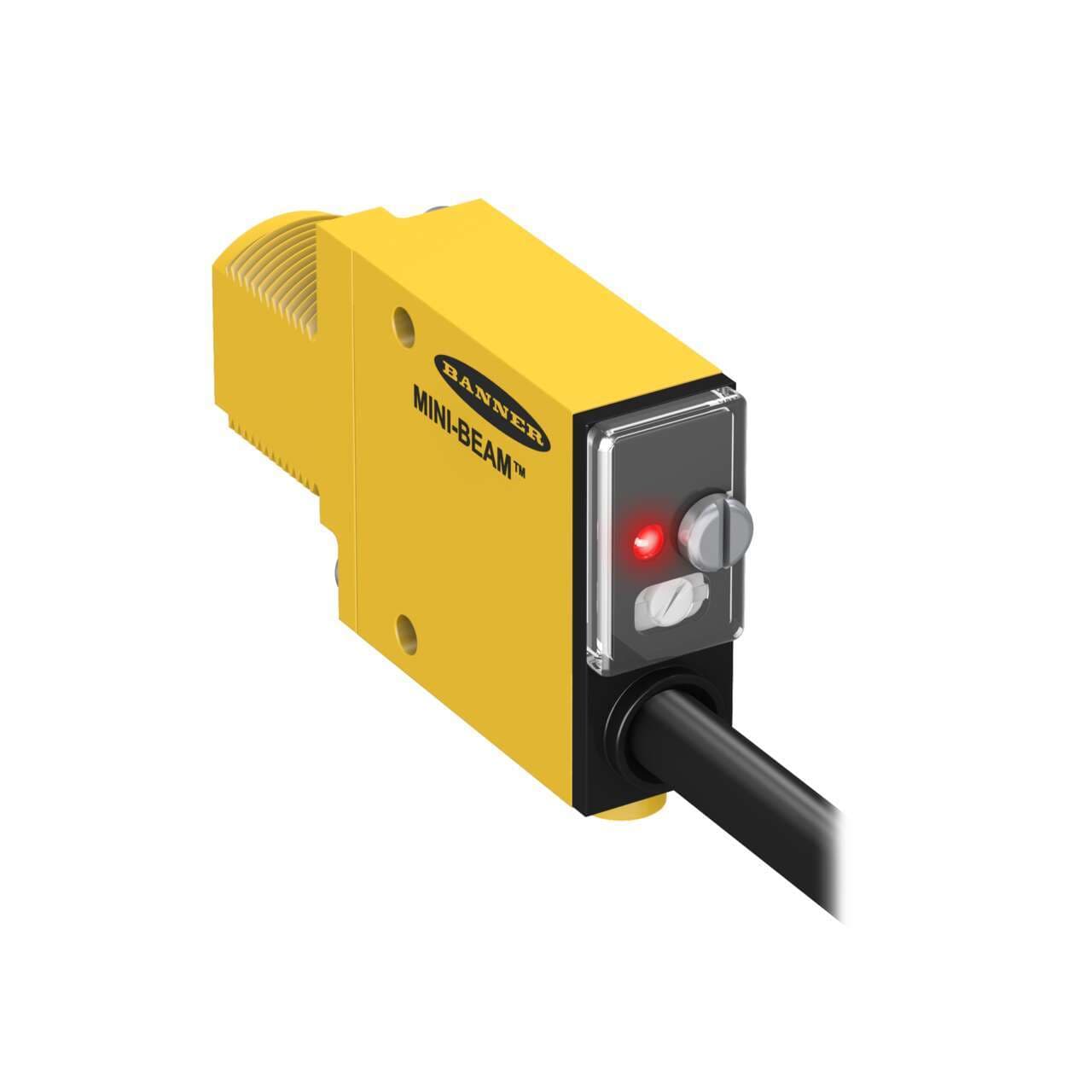

MINI-BEAM: Receiver; Range: 3 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable

Product Details

  • Weight
    589.216008 g
  • Country Of Origin
    US
  • Primary Housing Material
    Thermoplastic
  • Power Supply/Supply Voltage
    10-30 V dc
  • IP Rating
    IP67
  • Opposed Mode Emitter/Receiver
    Receiver
  • Housing Style
    Rectangular w/M18 Mount
  • Operation
    Light/Dark Operate
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • Feature: Hazardous Area
    No
  • Cable Length (m)
    9
  • Min Op. Temp. (°C)
    -20
  • Special Feature: Water Detection
    No
  • Feature: Timing (Hold/Delay)
    No
  • Input/Output
    Discrete
  • Output response time (ms)
    1
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Audible
    No
  • Sensing Beam
    Infrared LED
  • Quick Disconnect Type
    No QD
  • Delay at Power-up (ms)
    100
  • Lens Material
    Acrylic
  • Power
    DC
  • Connection
    Cable
  • Special Feature: Remote Teach
    No
  • Feature: Encapsulated
    Yes
  • Max Sensing Distance (mm)
    3000
  • Special Feature: Intrinsically Safe
    No
  • Adjustments
    Potentiometer
  • Feature: Chemical Resistant
    No
  • Sensing Mode (General)
    Opposed
  • Outputs
    Bipolar (NPN & PNP)
  • Repeatability (µs)
    140
  • Barrel Diameter (mm)
    18
  • Sensing Mode (Detailed)
    Receiver
  • Max Op. Temp. (°C)
    70
  • Number of Pins
    4
  • Indicator
    LEDs
  • DeviceNet
    No
  • IO Link
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31R W/30 on Powermatic Associates is $171.00. Order now.

About the product

Banner Engineering SM31R W/30 is a photo-electric sensor from the SM312 series, designed with a through-beam system and opposed mode potentiometer adjustment. This sensor, functioning as a receiver alone, is housed in thermoplastic with an acrylic lens. It features a pre-wired connection with a 30ft / 9m cable terminated with bare end flying leads. The sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12. The rectangular-shaped sensor provides 1 x digital output (PNP/NPN transistor), has a sensing distance of 3m, utilizes infrared (IR) light, and boasts a response time of 1ms / 0.001 s. Its operating modes include Light-ON and Dark-ON.
