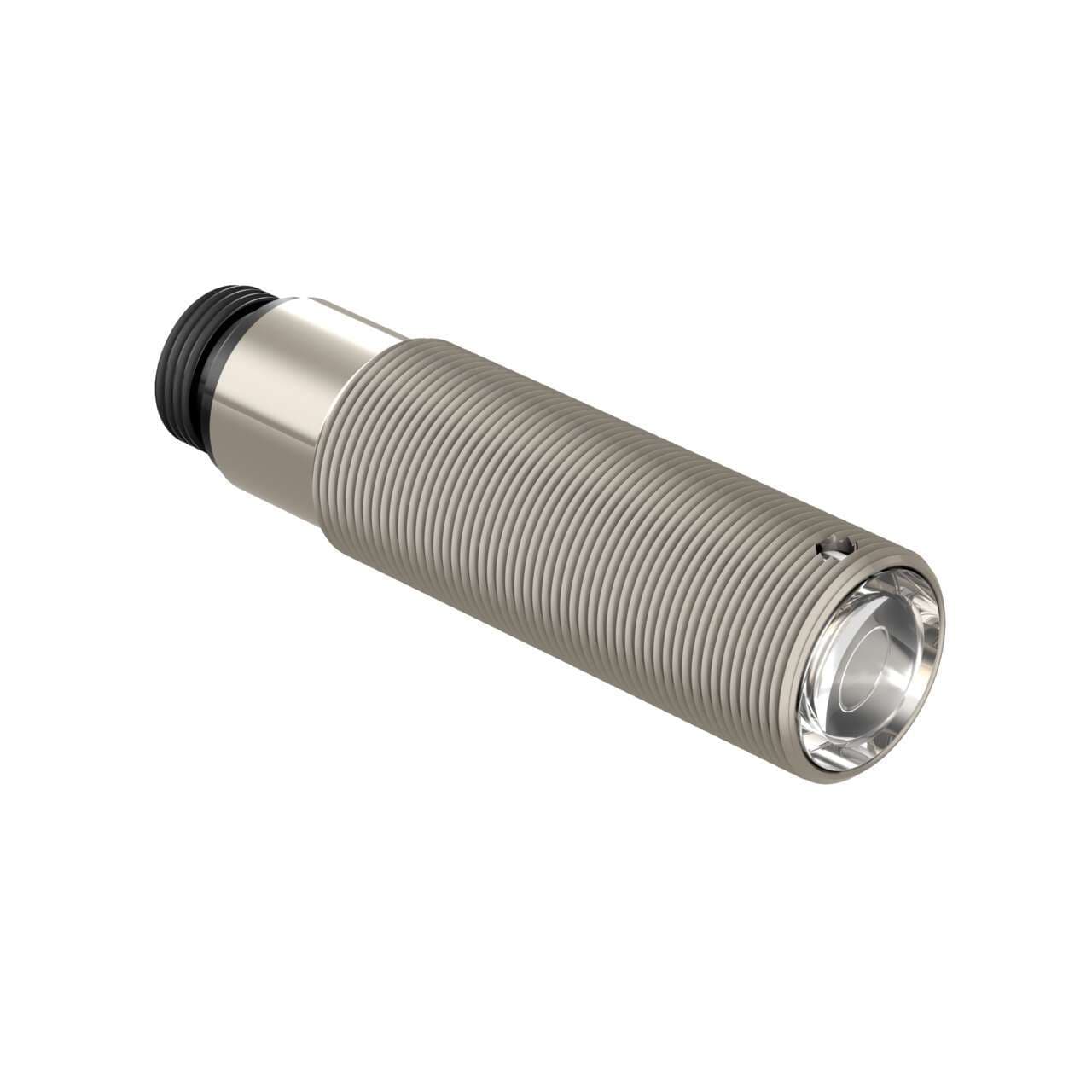

SMA30SELQDB Banner Proximity Sensors

Product Details

• Weight
  302.545864 g
• Country Of Origin
  MX
• Primary brand
  Banner Engineering
• Design
  through-beam system / opposed mode "B" modulation frequency washdown rated
• Connection type
  Pre-equipped with 3-pin 7/8" Mini connector
• Sub-range name
  SM30 series
• Light Color
  Infrared (IR)
• Material
  Stainless steel housing
• Product series / family name
  EZ-BEAM series
• Functions
  Photo-electric emitter red LED (power ON)
• Thread size
  M30
• Response time
  10ms / 0.01 s
• Order code / Manufacturer SKU
  27373
• Main function
  Sensor (Photo-electric)
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Shape
  Cylindrical threaded/barrel
• Ambient air temperature for operation
  -40...+70 °C
• Supply voltage (AC)
  12Vac-240Vac (200Vac / 220Vac nom.)
• Wavelength
  880 nm
• Degree of protection
  IP67 NEMA 6P
Compliant with standard(s)
cURus CSA CE
Opposed Mode Emitter/Receiver
Emitter
Max Sensing Distance (mm)
150000
Operation
N/A
Repeatability (µs)
N/A
Feature: Timing (Hold/Delay)
No
Power
AC/DC Universal
Output response time (ms)
N/A
Lens Material
Acrylic
Feature: Chemical Resistant
Yes
Sensing Mode (General)
Opposed
Connection
Integral QD
Number of Pins
3
Feature: Encapsulated
Yes
Housing Style
Barrel
Min Op. Temp. (°C)
-40
Delay at Power-up (ms)
N/A
Indicator
LEDs
Power Supply/Supply Voltage
10-30 V dc or 12-240 V ac
Special Feature: Remote Teach
No
NEMA Rating
NEMA 6P
DeviceNet
No
Primary Housing Material
Stainless Steel
Outputs
N/A
Special Feature: Intrinsically Safe
No
Barrel Diameter (mm)
30
Sensing Beam
Infrared LED
Quick Disconnect Type
7/8 in. (Mini)
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Audible
No
Sensing Mode (Detailed)
Emitter
Max Op. Temp. (°C)
70
IP Rating
IP67
Feature: Hazardous Area
No
Special Feature: Water Detection
No
Adjustments
N/A
IO Link
No
