SXA-1715D Banner Safety Light Curtains
Part#:SXA-1715D
Alt. Part#:810447
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description

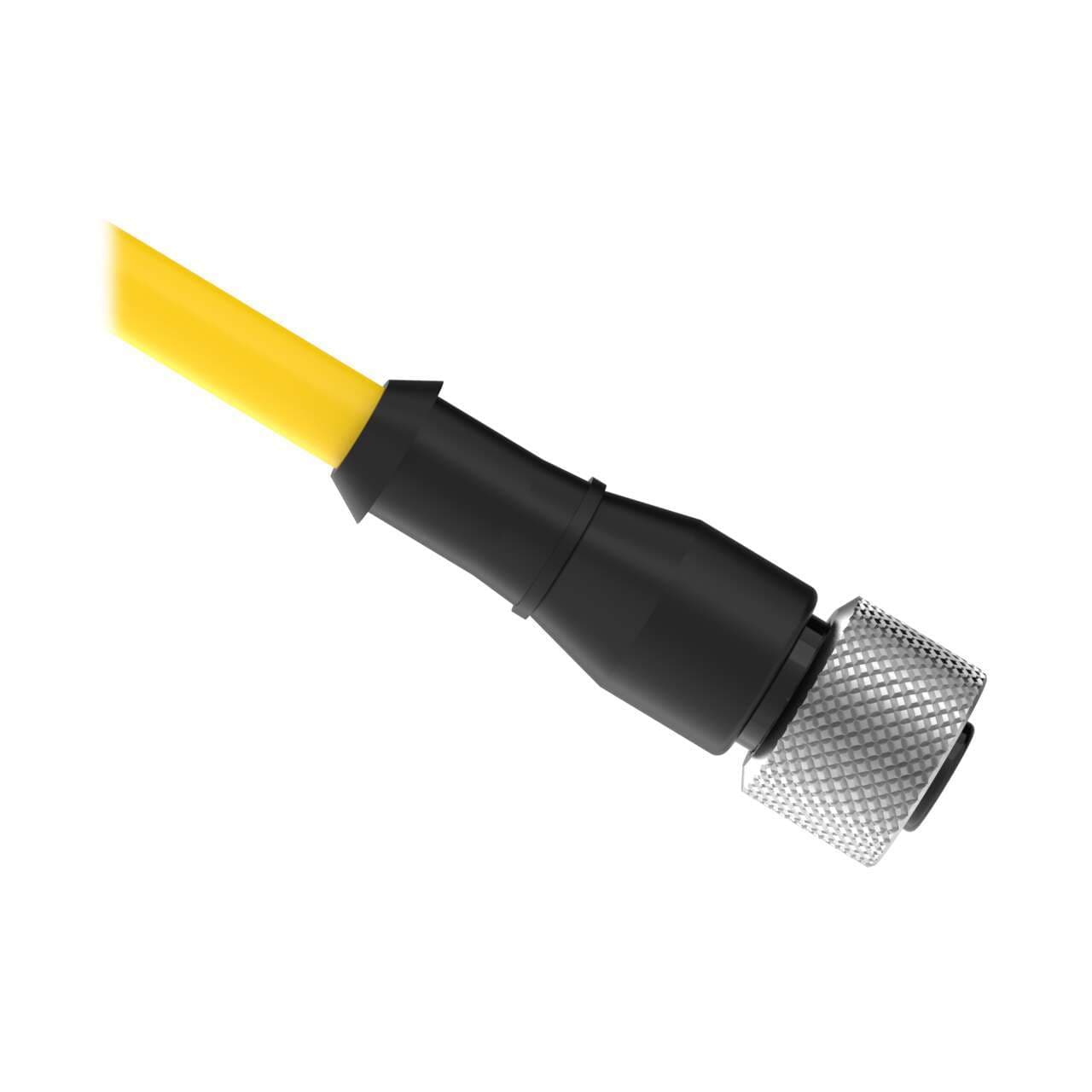

Cordset: Single Ended M12; 17-pin Straight Female; 4.57 m 17x26,28 TPU Black; Nickel-Plated Brass Coupling Nut
Product Details
- Weight 285.76296 g
- Country Of Origin TW
- Secondary AWG 26, 28
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Secondary Number of Conductors 17
- Secondary Connector Type Flying Leads
- Primary Gender Female
- Primary AWG 26, 28
- Primary Orientation Straight
- Primary Number of Conductors 17
- Primary Coupling Method M12 Single Key
- Primary Connector Type EURO
- IP Rating IP67
- Voltage Rating (V) 75 V ac/dc
- Minimum Temp. (°C) -40
- Current Rating (A) 1.0
- Maximum Temp. (°C) 80
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Trunk Length (m) No Trunk
- Cordset Length (m) 4570
- Cable Jacket Color Black
- Outside Cable Diameter (mm) 7
- Connector Body Material/Color PUR Black
- Cable Jacket Material PUR
- Number of Connectors 1
- Number of Contacts 17
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SXA-1715D on Powermatic Associates is $98.00. Order now.
About the product
Banner Engineering SXA-1715D is a pre-assembled cable/cordset designed with a single-ended configuration. It features an 8-pin Euro-style M12 female connector on one end and bare end flying leads on the other, with a total length of 15 feet (approximately 5 meters).
