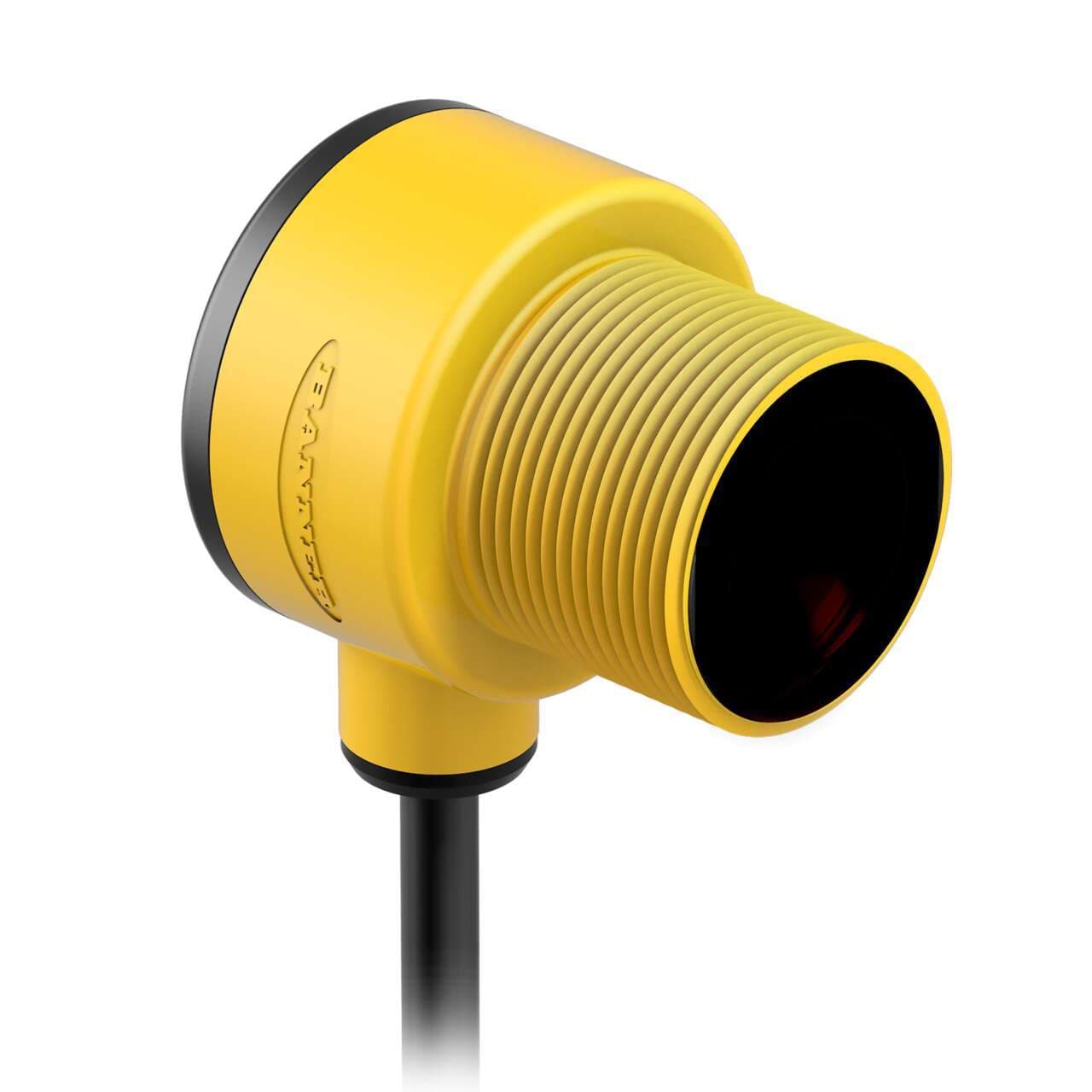

T303E Banner Proximity Sensors
Part#:T303E
Alt. Part#:32494
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Emitter; Range: 60 m; Input: 20-250 V ac; Output: Not Applicable; 2 m (6.5 ft) Cable
Product Details
- Weight 166.014672 g
- Country Of Origin US
- Product series / family name EZ-BEAM series
- Wavelength 950 nm
- Thread size M30
- Ambient air temperature for operation -40...+70 °C
- Sub-range name T30 series
- Shape Cylindrical threaded/barrel
- Order code / Manufacturer SKU 32494
- Primary brand Banner Engineering
- Design through-beam system / opposed mode
- Degree of protection IP67 NEMA 6P
- Material thermoplastic housing
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Light Color Infrared (IR)
- Response time (ON) 16ms / 0.016 s(OFF) 8ms / 0.008 s
- Main function Sensor (Photo-electric)
- Functions Photo-electric emitter green LED (power ON) yellow LED (output state)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Compliant with standard(s) cULus CCC cCSAus CE
- Power AC
- Special Feature: Remote Teach No
- Connection Cable
- Barrel Diameter (mm) 30
- IO Link No
- Feature: Audible No
- Sensing Beam Infrared LED
- Output response time (ms) 16 ON/8 OFF
- NEMA Rating NEMA 6P
- Sensing Mode (General) Opposed
- Power Supply/Supply Voltage 20-250 V ac
- Repeatability (µs) 2000
- Feature: Timing (Hold/Delay) No
- Housing Style Barrel
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- Feature: Washdown Rated Yes
- Sensing Mode (Detailed) Emitter
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- Adjustments N/A
- Max Sensing Distance (mm) 60000
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Feature: Encapsulated Yes
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Number of Pins 2
- Indicator LEDs
- Outputs N/A
- Operation N/A
- Max Op. Relative Humidity [%] 90% @ 50°C
- Opposed Mode Emitter/Receiver Emitter
- Cable Length (m) 2
- IP Rating IP69
- Feature: Ecolab Certified Yes
- DeviceNet No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T303E on Powermatic Associates is $70.00. Order now.
About the product
Banner Engineering T303E is a photo-electric sensor from the T30 series, designed with a through-beam system or opposed mode. This sensor functions as an emitter alone and is housed in a thermoplastic material. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. The T303E operates on a supply voltage ranging from 20Vac to 250Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and can function within an ambient air temperature range of -40 to +70°C. It is rated with a degree of protection IP69K NEMA 6P, indicating a high level of protection against ingress. The sensor has an M30 cylindrical threaded/barrel shape, offers a sensing distance of up to 60m, and utilizes infrared (IR) light with a wavelength of 950 nm. Its response times are 16ms (0.016 s) for turning on and 8ms (0.008 s) for turning off. The thread size for mounting is M30.
